- CROSS COUNTRY/TOURING ALL OPTIONS - V13DW36/TW/KW/ZW
CHASSIS, FLOORBOARD/FOOTPEG, PASSENGER - V13DW36/TW/KW/ZW ALL OPTIONS (49VICFLOORBOARDPASS12CC)

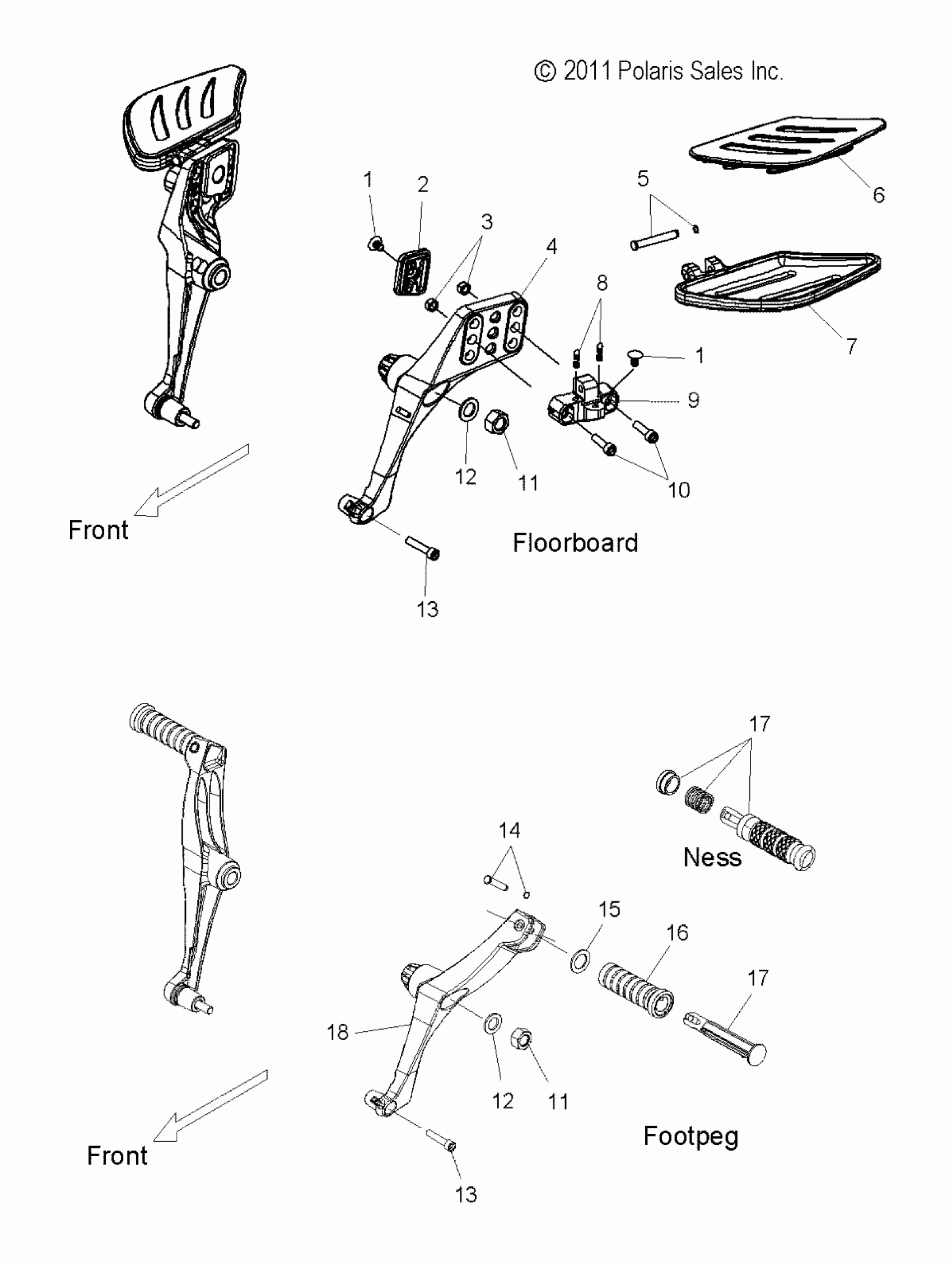

Polaris CROSS COUNTRY/TOURING ALL OPTIONS - V13DW36/TW/KW/ZW CHASSIS, FLOORBOARD/FOOTPEG, PASSENGER - V13DW36/TW/KW/ZW ALL OPTIONS (49VICFLOORBOARDPASS12CC) Diagram
#
1
CLIP-PLASTIC DART, NYLON
7670088
$1.59
1
CLIP-PLASTIC DART, NYLON
7670088
$1.59
2
BUMPER, FLOORBOARD, PASSENGER
5414251
Unavailable
3
NUT-NYLOCK M8X1.25-Y
7547144
$3.19
4
MOUNT, FLOORBOARD, ADJ, RH, JET BLACK
5137788-626
Unavailable
4
MOUNT, FLOORBOARD, ADJ, LH, JET BLACK
5137787-626
Unavailable
5
RING-RTNG,SPIRAL,EXT,SS
7710644
Unavailable
5
PIN, PIVOT
7661979
Unavailable
6
PAD, PASSENGER, FLOORBOARD, LH
5413024
Unavailable
6
PAD, PASSENGER, FLOORBOARD, RH
5413025
Unavailable
7
FLOORBOARD, PASSENGER, RH, VIS, JET BLACK
5137339-626
Unavailable
7
FLOORBOARD, PASSENGER, LH, VIS, JET BLACK
5137338-626
Unavailable
8
SPRING, COMPRESSION
7042255
Unavailable
8
BALL, DETENT
5133944
Unavailable
9
MOUNT, FLOORBOARD, PIVOT, JET BLACK
5137789-626
Unavailable
10
SCREW
7517361
$23.99
11
NUT
7540001
Unavailable
11
NUT
7540001
Unavailable
12
WASHER, FLAT
7556236
Unavailable
12
WASHER, FLAT
7556236
Unavailable
13
SCREW [RH SIDE]
7518146
Unavailable
13
SCREW [LH SIDE]
7518178
Unavailable
13
SCREW [RH SIDE]
7518146
Unavailable
13
SCREW [LH SIDE]
7518178
Unavailable
14
PIN-PIVOT,FOOTPEG
7661980
Unavailable
14
RING-RTNG,SPIRAL,EXT,SS
7710644
Unavailable
15
WASHER-FOOTPEG,PIVOT
7556274
Unavailable
16
PAD, FOOTPEG, REAR
5412261
Unavailable
17
FOOTPEG, LH, BRU
5136035-411
Unavailable
17
FOOTPEG, RH, BRU
5136036-411
Unavailable
17
BUSHING, FOOTPEG, BILLET, NESS
5436815
Unavailable
17
ASM., FOOTPEG, NESS, HOLESHOT
1017685
Unavailable
17
SPRING, FOOTPEG, BILLET, NESS
7043249
Unavailable
17
FOOTPEG, LH, BRU
5136035-411
Unavailable
17
FOOTPEG, RH, BRU
5136036-411
Unavailable
17
BUSHING, FOOTPEG, BILLET, NESS
5436815
Unavailable
17
ASM., FOOTPEG, NESS, HOLESHOT
1017685
Unavailable
17
SPRING, FOOTPEG, BILLET, NESS
7043249
Unavailable
18
MOUNT, FOOTPEG, PASSENGER, LH, FLAT BLACK
5136384-463
Unavailable
18
MOUNT, FOOTPEG, PASSENGER, RH, FLAT BLACK
5136385-463
Unavailable
18
MOUNT, FOOTPEG, PASSENGER, LH, JET BLACK [NESS]
5136384-626
Unavailable
18
MOUNT, FOOTPEG, PASSENGER, RH, JET BLACK [NESS]
5136385-626
Unavailable
