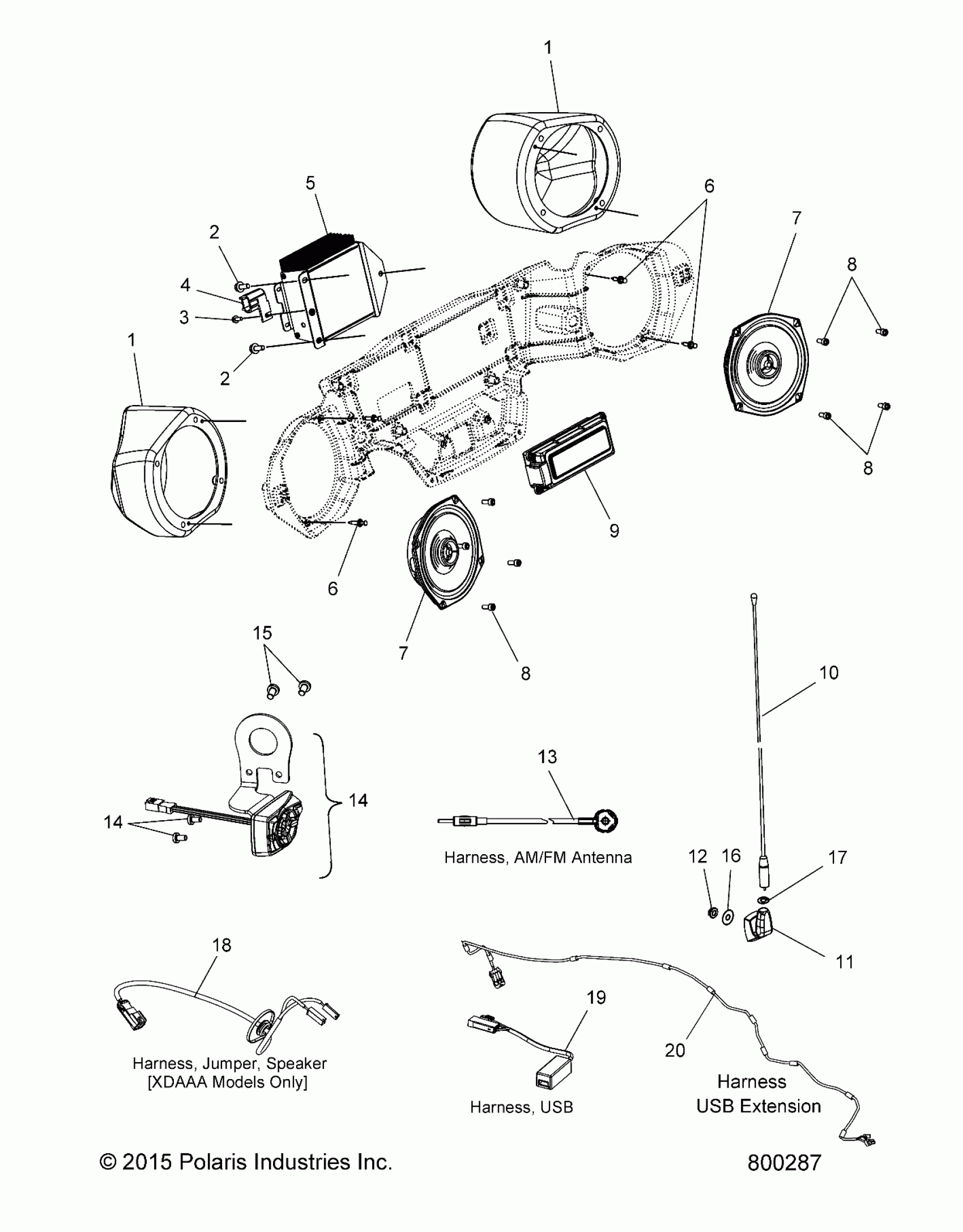

Polaris CROSS COUNTRY/TOURING ALL OPTIONS (R02) - V17XDAAA/XTAAA ELECTRICAL, AUDIO SYSTEM, CROSS COUNTRY - V17XDAAA ALL OPTIONS (800287) Diagram

#

Description
Price

1

VOLUME, SPEAKER, RH

5438385

Unavailable

1

VOLUME, SPEAKER, LH

5438384

Unavailable

1

VOLUME, SPEAKER, RH

5438385

Unavailable

1

VOLUME, SPEAKER, LH

5438384

Unavailable

2

SCREW

7518591

$3.79

2

SCREW

7518591

$3.79

3

Screw

7518796

$3.97

4

COVER-FUSEHOLDER

4012260

$10.51

5

MODULE, RADIO, MAIN CONTROLLER [CONTACT VICTORY TECH SERVICE REP. FOR REPLACEMENT]

----

Unavailable

6

RIVET

7661891

$1.19

6

RIVET

7661891

$1.19

7

SPEAKER, 50 WATT

4014259

$254.98

7

SPEAKER, 50 WATT

4014259

$254.98

8

SCREW

7519340

Unavailable

8

SCREW

7519340

Unavailable

8

SCREW

7519340

Unavailable

9

MODULE, RADIO DISPLAY [CONTACT VICTORY TECH SERVICE REP. FOR REPLACEMENT]

----

Unavailable

10

ANTENNA, MAST, 33 INCH

4012213

$119.99

11

MOUNT, ANTENNA, 90 DEGREE, ADJ.

4012274

$84.99

12

NUT, NYLOK

7547059

$4.76

13

ASM., HARNESS, AM/FM ANTENNA

2411489

$129.99

14

SCREW

7518691

$2.10

14

BRACKET, SWITCH, RADIO

5259485

$11.29

14

ASM., SWITCH, RADIO 7 INPUT [INCL. BRKT. AND SCREWS]

1020641

$349.99

14

SCREW

7518691

$2.10

14

BRACKET, SWITCH, RADIO

5259485

$11.29

14

ASM., SWITCH, RADIO 7 INPUT [INCL. BRKT. AND SCREWS]

1020641

$349.99

15

SCREW

7517420

$5.22

16

WASHER, FLAT

7556544

$4.76

17

WASHER, SPRING LOCK

7552801

$1.59

18

HARNESS, JUMPER, SPEAKER [XDAAA ONLY]

2413502

Unavailable

19

HARNESS, USB

2412949

$134.99

20

HARNESS, USB EXTENSION [XDAAA ONLY]

2412957

$54.99
