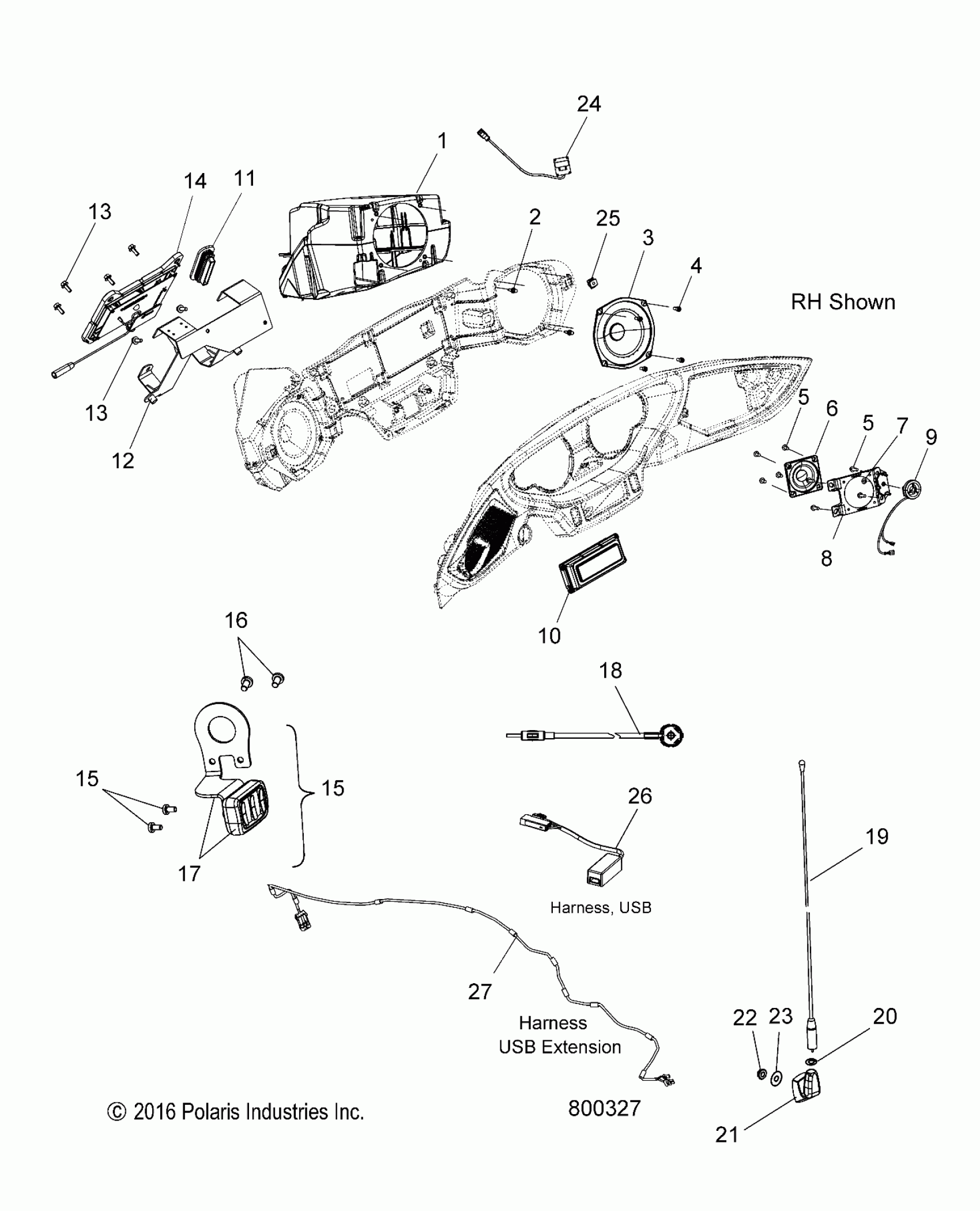

Polaris CROSS COUNTRY/TOURING ALL OPTIONS (R02) - V17XDAAA/XTAAA ELECTRICAL, AUDIO SYSTEM, CROSS COUNTRY TOURING - V17XTAAA ALL OPTIONS (800327) Diagram

#

Description
Price

1

ASM., HOUSING, SPEAKER, RH [INCL. 24]

1020835

$242.84

1

ASM., HOUSING, SPEAKER, LH [INCL. 24]

1020834

$304.75

2

RIVET, PLASTIC

7661891

$1.19

3

SPEAKER, MID WOOFER, 50W

4014820

$159.99

4

SCREW

7518811

$3.17

5

SCREW

7518641

$3.17

5

SCREW

7518641

$3.17

6

SPEAKER, 2.5 MID

4014821

$124.99

7

SCREW

7520138

Unavailable

8

BRKT., SPEAKER GRILL

5451567

$9.99

9

SPEAKER, TWEETER

4014822

Unavailable

10

MODULE, RADIO, MAIN DISPLAY [CONTACT VICTORY TECH SERVICE REP. FOR REPLACEMENT]

----

Unavailable

11

PLUG, RADIO

5414927

$7.14

12

MOUNT, RADIO

5258585

Unavailable

13

SCREW

7518591

$3.79

13

SCREW

7518591

$3.79

14

MODULE, RADIO, MAIN CONTROLLER [CONTACT VICTORY TECH SERVICE REP. FOR REPLACEMENT]

----

Unavailable

15

SCREW

7518691

$2.10

15

ASM., RADIO SWITCH, 7 INPUT [INCL. SWITCH, BRKT., AND SCREWS]

1020641

$349.99

15

SCREW

7518691

$2.10

15

ASM., RADIO SWITCH, 7 INPUT [INCL. SWITCH, BRKT., AND SCREWS]

1020641

$349.99

16

WASHER, SPRING LOCK

7552801

$1.59

16

WASHER, FLAT

7556544

$4.76

16

SCREW

7517420

$5.22

17

SWITCH, RADIO, 7 INPUT

4014874

$349.99

17

BRKT., SWITCH, RADIO

5259485

$11.29

18

ASM., HARNESS, AM/FM ANTENNA

2411489

$129.99

19

ANTENNA, MAST, 33 INCH

4012213

$119.99

20

WASHER, SPRING LOCK

7552801

$1.59

21

MOUNT, ANTENNA, 90 DEGREE, ADJ.

4012274

$84.99

22

NUT, NYLOK

7547059

$4.76

23

WASHER, FLAT

7556544

$4.76

24

HARNESS, SPEAKER ENCLOSURE

2412797

$299.99

25

NUT-PAL, M4

7547324

$3.97

26

HARNESS-USB

2412949

$134.99

27

HARNESS, USB EXTENSION

2412957

$54.99
