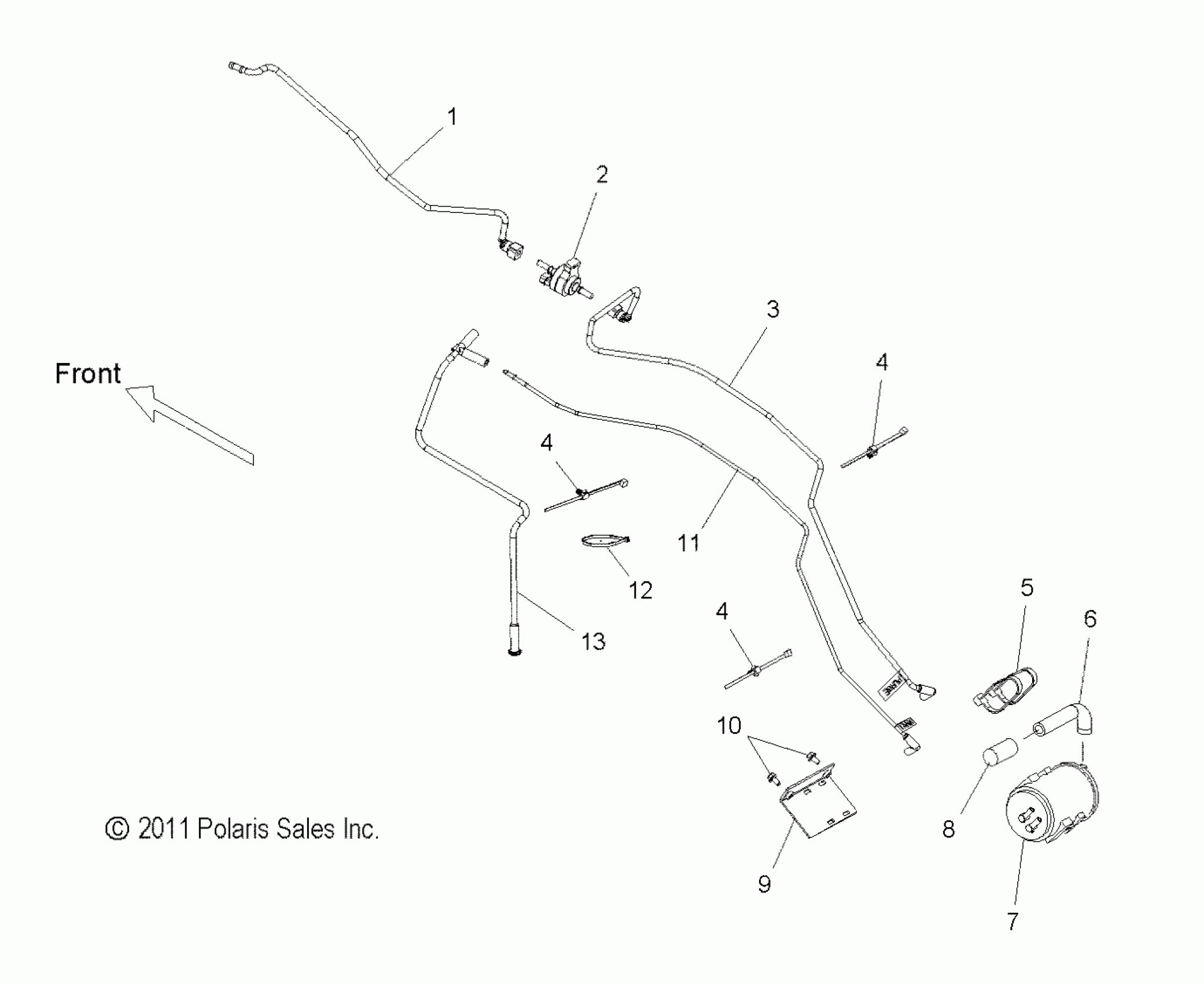

Polaris CROSS COUNTRY/TOURING ALL OPTIONS (R02) - V16DB/DW/TW36 FUEL SYSTEM, EVAP SYSTEM - V16DB/DW/TW36 ALL OPTIONS (49VICEVAP12CR) Diagram

#

Description
Price

1

LINE, VENT, PURGE TO TB

5438440

$56.99

2

VALVE, CANISTER PURGE

4011303

$74.99

3

LINE, CANISTER TO PURGE

5437608

$63.79

4

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

4

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

4

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

5

TIEWRAP, EVAP

7080924

$7.94

6

HOSE, VENT

5411870

$48.56

7

FILTER, ACTIVATED CHARCOAL

2520192

$74.19

8

FILTER, VENT LINE

7080932

$4.35

9

ASM., BRACKET, CANISTER

1017163

Unavailable

10

SCREW

7517704

$7.84

11

LINE, CHASSIS, VENT TO CANISTER

5437606

$80.94

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

LINE, CHASSIS, VENT TO GROUND

5437605

$42.27
