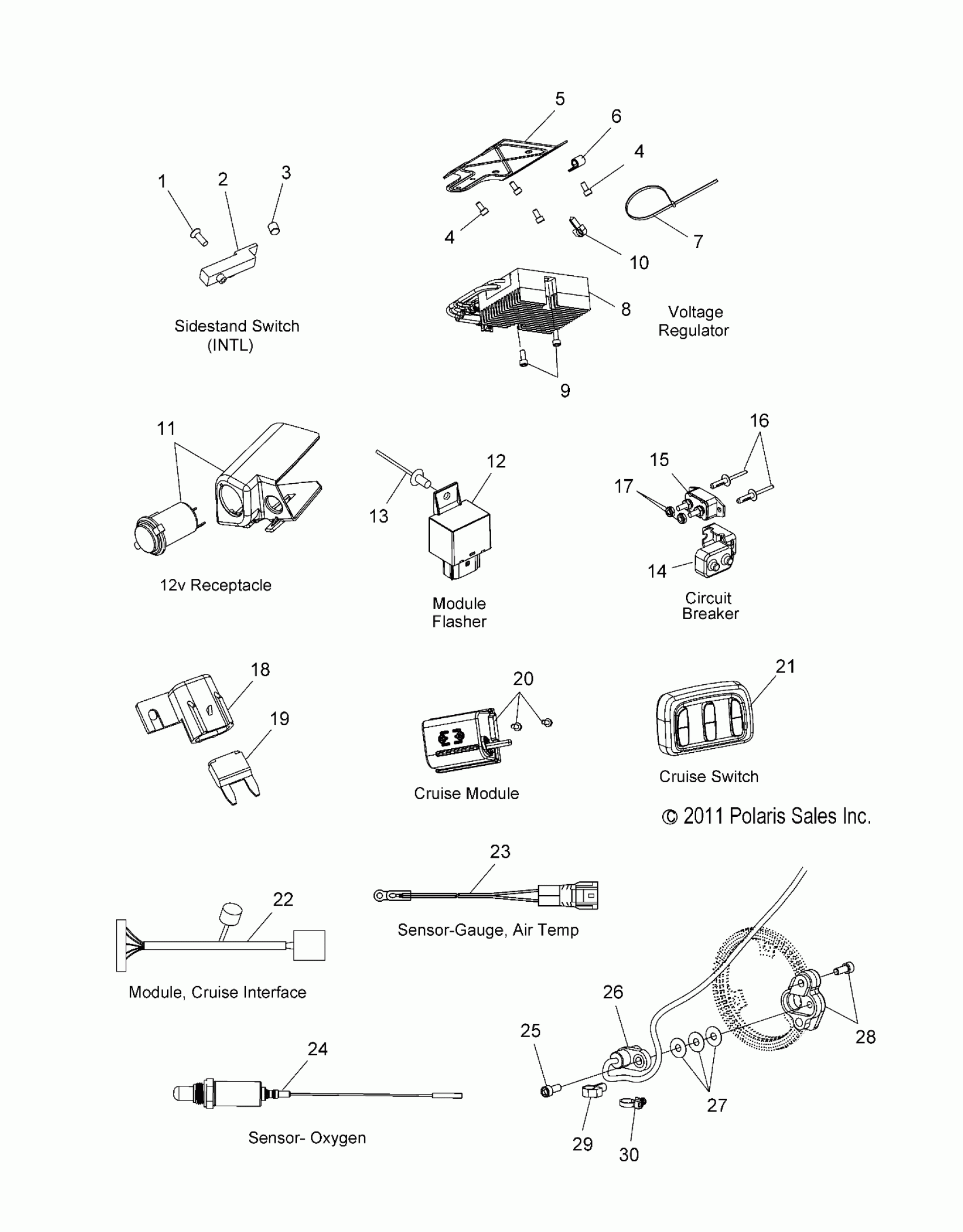

Polaris CROSS COUNTRY/TOURING ALL OPTIONS (R02) - V16DB/DW/TW36 ELECTRICAL, SWITCHES, SENSORS and COMPONENTS 2 - V16DB/DW/TW36 ALL OPTIONS (49VICSWITCHES12CC2) Diagram

#

Description
Price

1

SCR-FLHD-M4X0.7X12MM,TORX [INTL.]

7519276

$4.79

2

SWITCH, SIDE STAND [INTL.]

4013130

Unavailable

3

MAGNET, SIDE STAND [INTL.]

4013131

Unavailable

4

Screw

7517739

$9.59

4

Screw

7517739

$9.59

5

BRACKET, CONNECTOR, ZINC/BLACK

5248079-408

Unavailable

6

CLAMP-REAR BRAKE

7080983

$3.99

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

REGULATOR, VOLTAGE, BLACK

4012717

Unavailable

9

SCREW

7517272

$7.19

10

Clip

7670102

$2.39

11

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

11

HOUSING, SOCKET [TW]

5439002

Unavailable

12

MODULE, FLASHER, LED

4013199

Unavailable

13

RIVET

7081617

Unavailable

14

BOOT

4010778

$5.59

15

BREAKER, CIRCUIT, 40A

2410332

Unavailable

16

Rivet

7081040

$1.49

17

NUT

7541931

$4.79

18

COVER-FUSEHOLDER

4012260

$9.70

19

FUSE-MAIN,30 AMP

2434015

$7.19

20

Screw

7512095

$4.79

20

MODULE, CRUISE

4012752

Unavailable

21

SWITCH, CRUISE, HIGH CURRENT, BLACK

4013049

Unavailable

22

MODULE, INTERFACE, FERITE

4013839

Unavailable

23

SENSOR, GAUGE, AIR TEMP

2410443

$64.75

24

SENSOR-LAMBDA,LSF 4.2

4011853

$135.54

25

SCREW

7517272

$7.19

26

SENSOR, WHEEL SPEED, ABS

4013251

Unavailable

27

SHIM, SENSOR, ABS

5255106

Unavailable

28

SCREW [FRONT]

7517272

$7.19

28

MOUNT, SPEED SENSOR, ABS [FRONT]

5632575

Unavailable

29

CLIP, SILENCER [FRONT]

7670102

$2.39

30

CABLE-TIE,DIA10-50MM,FIR-TREE [REAR]

7081334

$1.59
