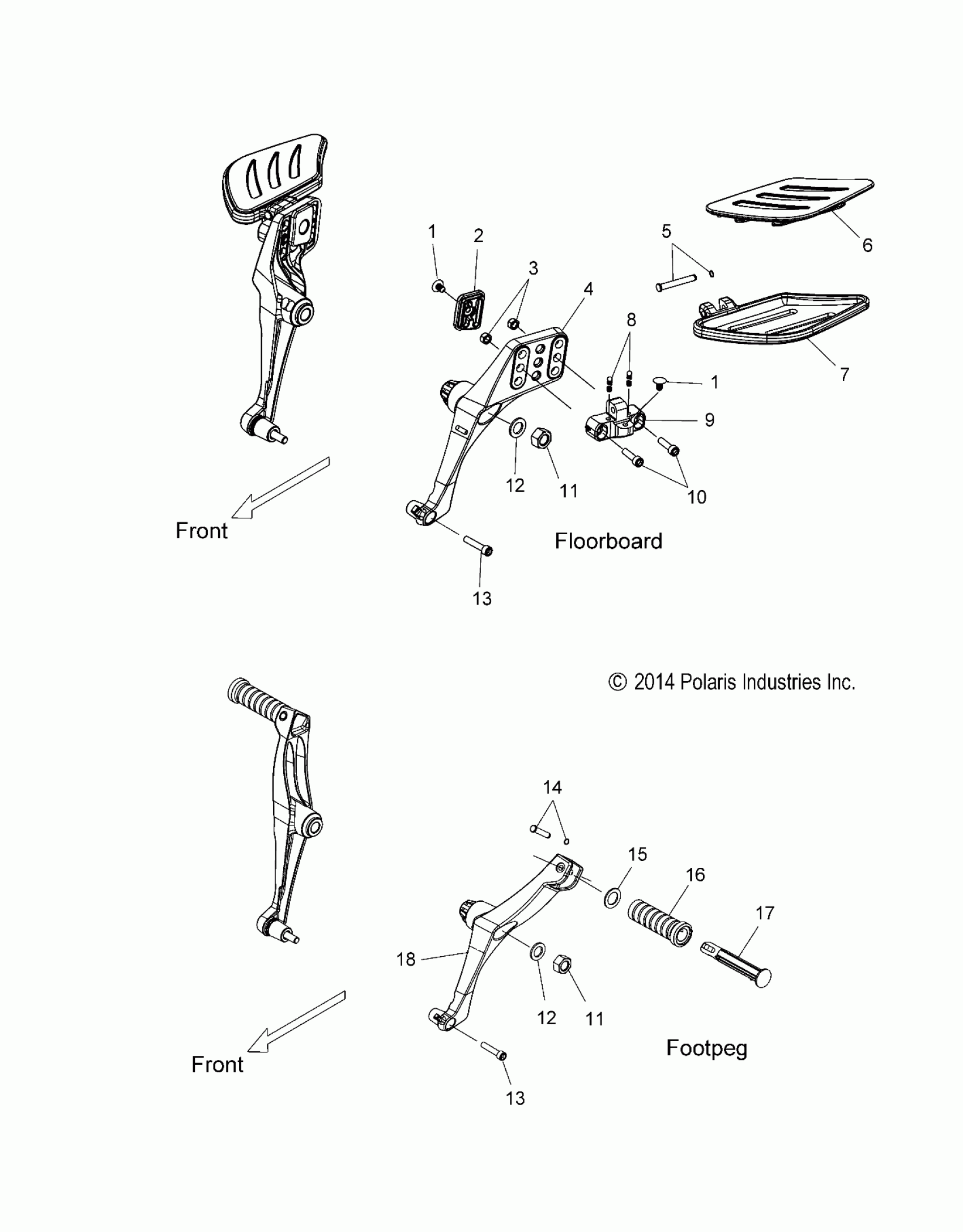

Polaris CROSS COUNTRY/TOURING ALL OPTIONS (R02) - V16DB/DW/TW36 CHASSIS, FLOORBOARD/FOOTPEG, PASSENGER - V16DB/DW/TW36 ALL OPTIONS (49VICFLOORBOARDPASS15CC) Diagram

#

Description

Price

1

CLIP-PLASTIC DART, NYLON

7670088

$1.59

1

CLIP-PLASTIC DART, NYLON

7670088

$1.59

2

BUMPER, FLOORBOARD, PASSENGER

5414251

Unavailable

3

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

4

MOUNT, FLOORBOARD, ADJ, RH, JET BLACK

5137788-626

Unavailable

4

MOUNT, FLOORBOARD, ADJ, LH, JET BLACK

5137787-626

Unavailable

5

RING-RTNG,SPIRAL,EXT,SS

7710644

Unavailable

5

PIN, PIVOT

7661979

Unavailable

6

PAD, PASSENGER, FLOORBOARD, LH

5413024

Unavailable

6

PAD, PASSENGER, FLOORBOARD, RH

5413025

Unavailable

7

FLOORBOARD, PASSENGER, RH, VIS, JET BLACK

5137339-626

Unavailable

7

FLOORBOARD, PASSENGER, LH, VIS, JET BLACK

5137338-626

Unavailable

8

SPRING, COMPRESSION

7042255

Unavailable

8

BALL, DETENT

5133944

Unavailable

9

MOUNT, FLOORBOARD, PIVOT, JET BLACK

5137789-626

Unavailable

10

SCREW

7517361

$23.99

11

NUT

7540001

Unavailable

11

NUT

7540001

Unavailable

12

WASHER, FLAT

7556236

Unavailable

12

WASHER, FLAT

7556236

Unavailable

13

SCREW [RH SIDE]

7518146

Unavailable

13

SCREW [LH SIDE]

7518178

Unavailable

13

SCREW [RH SIDE]

7518146

Unavailable

13

SCREW [LH SIDE]

7518178

Unavailable

14

PIN-PIVOT,FOOTPEG

7661980

Unavailable

14

RING-RTNG,SPIRAL,EXT,SS

7710644

Unavailable

15

WASHER-FOOTPEG,PIVOT

7556274

Unavailable

16

PAD, FOOTPEG, REAR

5412261

Unavailable

17

FOOTPEG, LH, BRU

5136035-411

Unavailable

17

FOOTPEG, RH, BRU

5136036-411

Unavailable

18

MOUNT, FOOTPEG, PASSENGER, LH, FLAT BLACK

5136384-463

Unavailable

18

MOUNT, FOOTPEG, PASSENGER, RH, FLAT BLACK

5136385-463

Unavailable
