- CROSS COUNTRY/TOURING ALL OPTIONS (R02) - V16DB/DW/TW36
BODY, TRUNK ASM. - V16TW36 ALL OPTIONS (800211)

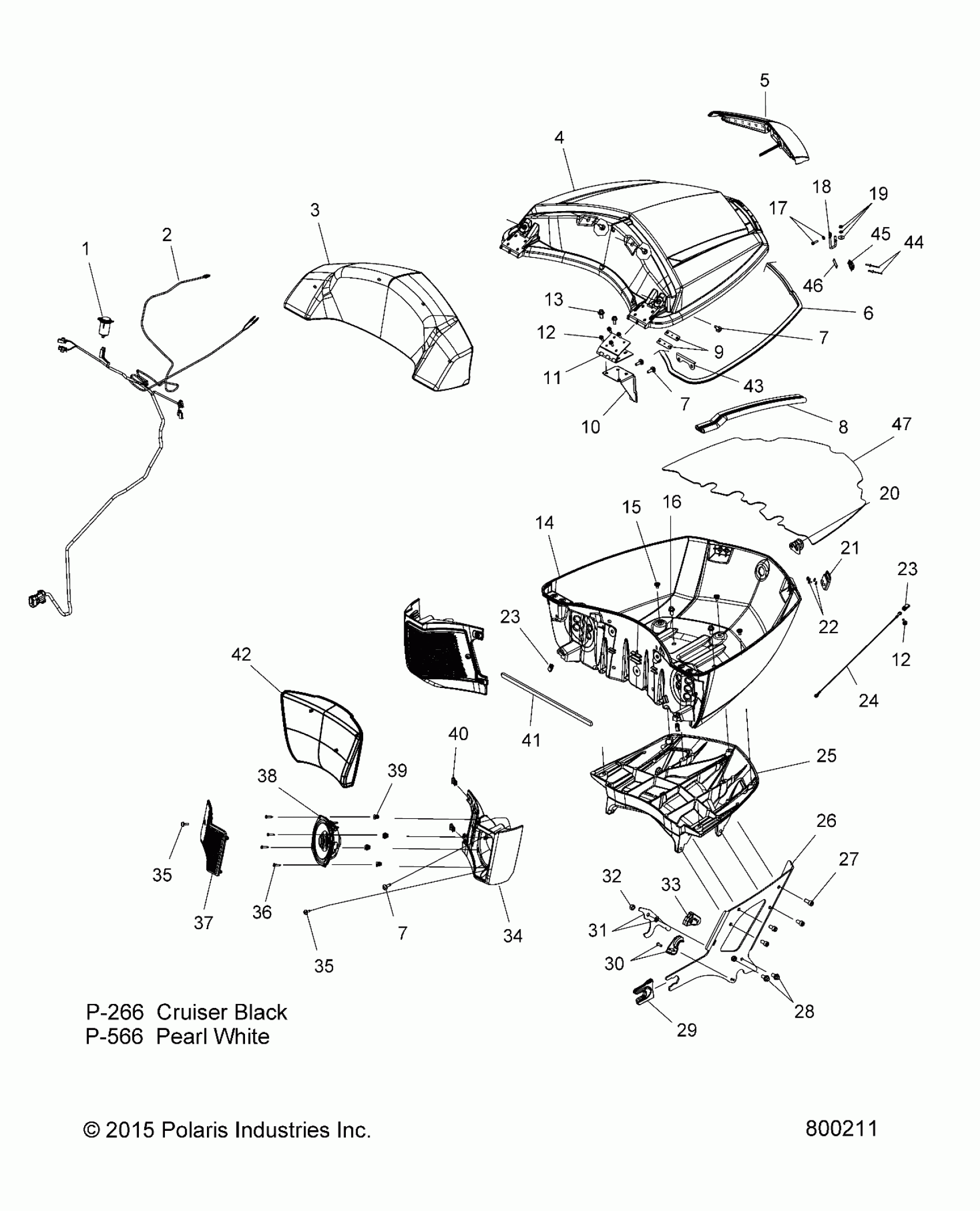

Polaris CROSS COUNTRY/TOURING ALL OPTIONS (R02) - V16DB/DW/TW36 BODY, TRUNK ASM. - V16TW36 ALL OPTIONS (800211) Diagram
#
1
RECEPTACLE-POD MNT,12 VOLT
4012393
$31.99
2
HARNESS, TRUNK
2411348
Unavailable
3
ASM., TOP PAD, TRUNK
2684423
Unavailable
4
PANEL, LID
5438159-566
Unavailable
4
PANEL, LID
5438159-266
Unavailable
5
ASM., LAMP, RUNNING
2411347
Unavailable
6
SEAL
5521798
Unavailable
7
SCREW
7518484
$4.79
7
SCREW
7518484
$4.79
7
SCREW
7518484
$4.79
8
COVER, WIRE, TRUNK LID
5521819
Unavailable
9
ASM., PLATE, HINGE MOUNT, LID
2634025
Unavailable
10
ASM., BRACKET, HINGE SUPPORT, LH
2634024
Unavailable
10
ASM., BRACKET, HINGE SUPPORT, RH
2634023
Unavailable
11
ASM., HINGE
2633934
Unavailable
12
SCREW
7518875
Unavailable
12
SCREW
7518875
Unavailable
13
Screw
7517770
$2.39
14
PANEL, BIN, TRUNK
5438158-266
Unavailable
14
PANEL, BIN, TRUNK
5438158-566
Unavailable
15
BOLT, SHOULDER
7518788
Unavailable
16
SCREW
7517359
$4.35
17
WASHER
7555727
$1.49
17
SCREW
7518900
Unavailable
18
HOOP, WIREFORM, LOCK
5336385
Unavailable
19
NUT-M5X.8,HX NYL-Y
7546601
$1.49
19
WASHER
7556034
$2.39
19
WASHER
7556071
$4.79
20
ASM., LOCK
2633936
Unavailable
21
ASM., LATCH
2633935
Unavailable
22
WASHER
7555727
$1.49
22
SCREW
7519233
Unavailable
23
NUT, CLIP, U-SPEED
7547386
Unavailable
23
NUT, CLIP, U-SPEED
7547386
Unavailable
24
CABLE
7081653
Unavailable
25
SUPPORT, TRUNK, CENTER
5137308-521
Unavailable
26
SUPPORT, TRUNK, SIDE, LH [FLAT BLACK]
1017622-463
Unavailable
26
SUPPORT, TRUNK, SIDE, LH [FLAT BLACK]
1017623-463
Unavailable
27
SCREW
7517410
Unavailable
28
SCREW
7517359
$4.35
29
MOUNT, SPOOL, FRONT
5413968
Unavailable
30
Rivet
7621462
$1.49
30
BUSHING, TRUNK MOUNT, LH
5438535
Unavailable
30
BUSHING, TRUNK MOUNT, RH
5438474
Unavailable
31
BUSHING
5438633
Unavailable
31
LATCH, SUPPORT
5254096
Unavailable
32
NUT-NYLOCK M8X1.25-Y
7547144
$3.19
33
HANDLE, LATCH
5413864
Unavailable
34
PANEL, SPEAKER HOUSING, LH
5438425
Unavailable
34
PANEL, SPEAKER HOUSING, RH
5438426
Unavailable
35
BOLT
7518515
Unavailable
35
BOLT
7518515
Unavailable
36
Screw
7518590
$3.19
37
PANEL, SPEAKER GRILL, LH
5438423
Unavailable
37
PANEL, SPEAKER GRILL, RH
5438424
Unavailable
38
SPEAKER [TOUR]
4014259
Unavailable
39
NUT, PAL
7547324
$3.99
40
CLIP-U SPEED NUT
7081305
$1.99
41
GASKET, STRIP, FOAM
5813595
Unavailable
42
ASM., BACKREST
2684424
Unavailable
43
ASM., BRACKET, LANYARD
2634044
Unavailable
44
RIVET
7661993
Unavailable
45
HASP, LATCH, TRUNK
5632443
Unavailable
46
PLATE, LATCH, BACKER
5254213
Unavailable
47
MAT, FLOOR, TRUNK [INTL ONLY]
5813642
Unavailable
47
MAT, FLOOR, TRUNK [INTL ONLY]
5813642
Unavailable
