WHEELS, REAR - V14DA/DB/DW/TW/ZW36 ALL OPTIONS (49VICWHEELRR14CCT15)

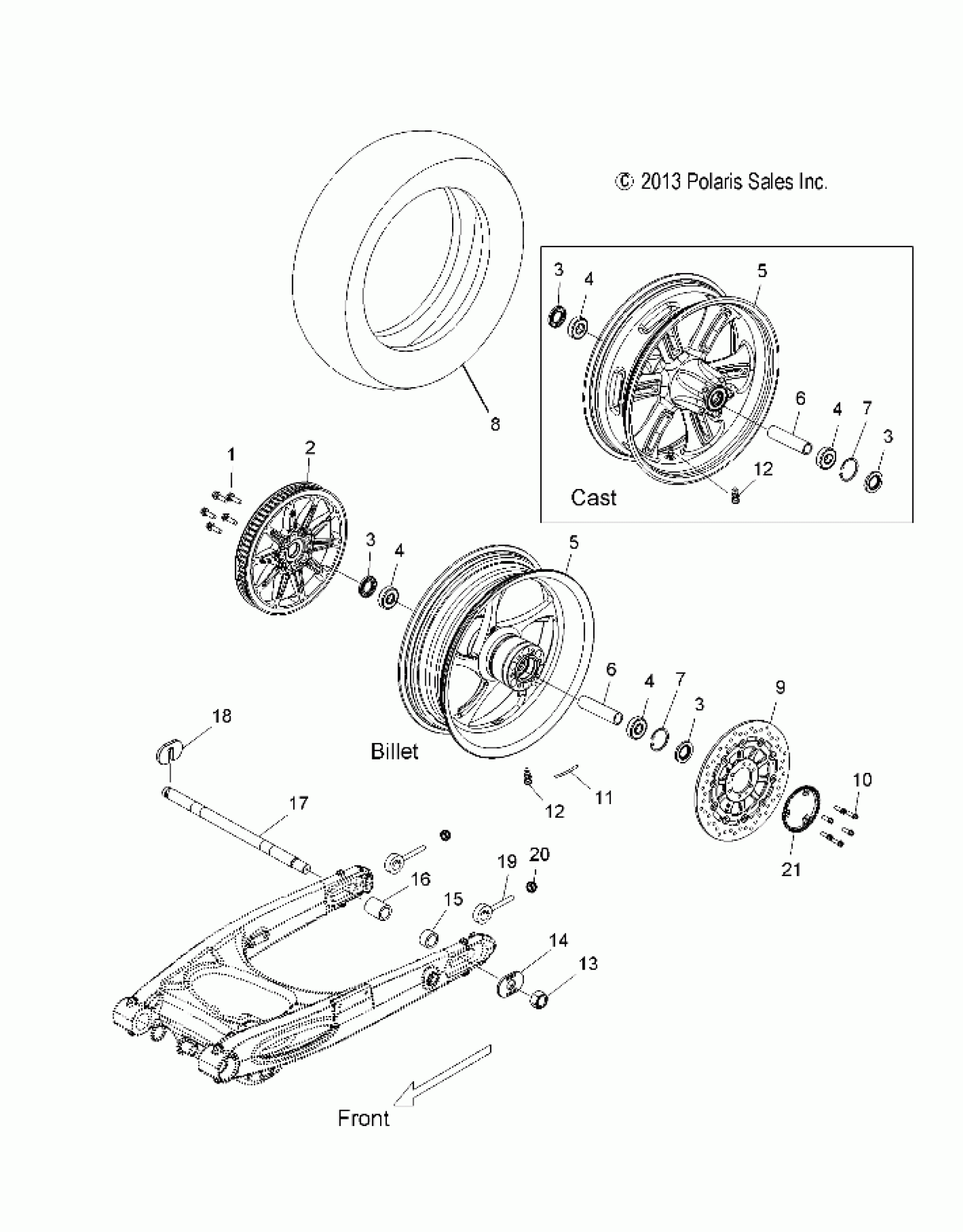

Polaris CROSS COUNTRY/TOURING/15th ANNIVERSARY ALL OPTIONS - V14DA/DB/DW/TW/ZW36 WHEELS, REAR - V14DA/DB/DW/TW/ZW36 ALL OPTIONS (49VICWHEELRR14CCT15) Diagram
#
1
SCREW
7518878
Unavailable
2
ASM., SPROCKET, DRIVEN, 70T, BLACK WRINKLE
1332399-521
Unavailable
3
SEAL
3610094
Unavailable
3
SEAL
3610094
Unavailable
3
SEAL
3610094
Unavailable
3
SEAL
3610094
Unavailable
4
BEARING, BALL
3514405
Unavailable
4
BEARING, BALL
3514405
Unavailable
4
BEARING, BALL
3514405
Unavailable
4
BEARING, BALL
3514405
Unavailable
5
ASM., WHEEL, REAR, CAST, TR BLK [INCL. 3-7,12]
1521384-266
Unavailable
5
ASM., WHEEL, REAR, BILLET, ABS [INCL. 3-7,12]
1521577-405
Unavailable
5
ASM., WHEEL, REAR, CAST, TR BLK [INCL. 3-7,12]
1521384-266
Unavailable
5
ASM., WHEEL, REAR, BILLET, ABS [INCL. 3-7,12]
1521577-405
Unavailable
6
SPACER, BEARING, MID [CAST]
5335811
Unavailable
6
SPACER, BEARING, MID [BILLET]
5334863
Unavailable
6
SPACER, BEARING, MID [CAST]
5335811
Unavailable
6
SPACER, BEARING, MID [BILLET]
5334863
Unavailable
7
Ring, Retaining
7710526
Unavailable
7
Ring, Retaining
7710526
Unavailable
8
TIRE, 180/60R16
5413397
Unavailable
9
ROTOR, BRAKE, BLACK
1911692-266
Unavailable
10
SCREW
7518661
Unavailable
11
WEIGHT, BALANCE, BLK [INTL]
1521682
Unavailable
11
WEIGHT, BALANCE, SLV [BILLET]
1521681
Unavailable
12
VALVE, RIM [INTL]
1521312
Unavailable
12
VALVE, RIM [BILLET]
1521515
Unavailable
12
VALVE, RIM [INTL]
1521312
Unavailable
12
VALVE, RIM [BILLET]
1521515
Unavailable
13
NUT
7547226
$23.81
14
WASHER, INDICATOR, AXLE
5248452-236
Unavailable
15
SPACER, BEARING, LH
5631479
Unavailable
16
SPACER, WHEEL, REAR, RH
5631581
Unavailable
17
AXLE, REAR
5137446
Unavailable
18
RETAINER, AXLE, REAR
5248599
Unavailable
19
ADJUSTER, AXLE
1014895
Unavailable
20
NUT-NYLOCK M8X1.25-Y
7547144
$3.19
21
RING, TONE, ABS
5632541
Unavailable
