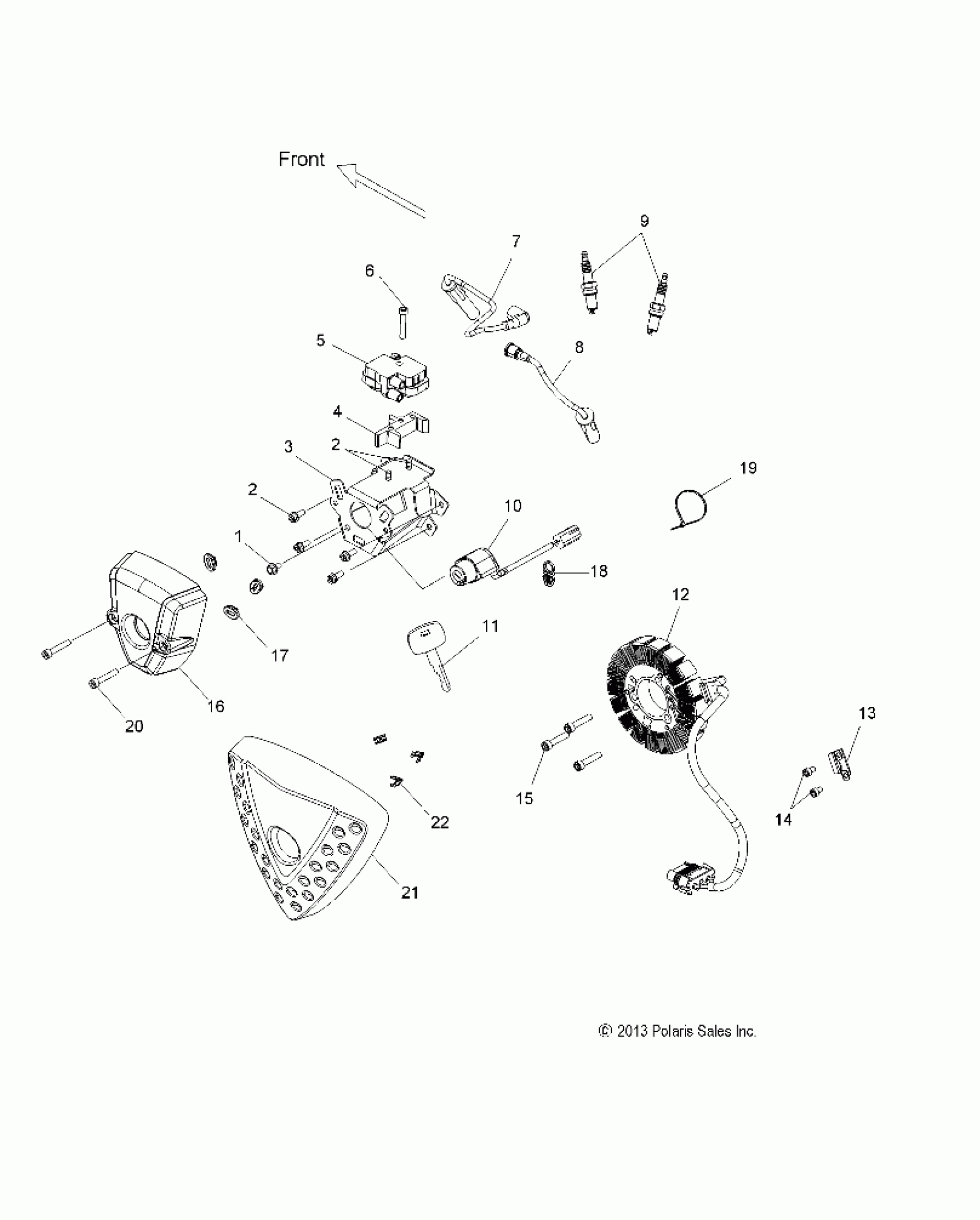

Polaris CROSS COUNTRY/TOURING/15th ANNIVERSARY ALL OPTIONS - V14DA/DB/DW/TW/ZW36 ELECTRICAL, IGNITION SYSTEM - V14DA/DB/DW/TW/ZW36 ALL OPTIONS (49VICELECT14CCT15) Diagram

#

Description
Price

1

SCREW

7517704

$7.84

2

SCREW

7518803

$3.97

2

SCREW

7518803

$3.97

3

BRACKET, IGNITION COIL

5255393

$41.67

4

SPACER, IGNITION COIL

5510601

Unavailable

5

COIL-EFI

4010425

$242.84

6

SCREW

7517259

$5.56

7

LEAD, SPARK PLUG [FRONT CYLINDER]

4012733

$44.51

8

LEAD, SPARK PLUG [REAR CYLINDER]

4012746

$44.51

9

PLUG, SPARK, DCPR6E

3070202

$7.94

10

ASM., IGNITION/FUEL/FORK LOCK, BLACK [INTL]

4012944-266

Unavailable

10

ASM., IGNITION/FUEL/TRUNK/SB, BLACK

4012943-266

$580.94

10

ASM., IGNITION/FUEL/FORK LOCK, CHROME [15th ANNIV.]

4012944-156

$552.37

11

KEY, BLANK

4110239

$14.56

12

STATOR, CHARGING, 20 MAG

4012715

$424.98

13

CLIP, STATOR WIRE

5251115

$9.52

14

SCREW

7517847

$3.17

15

SCREW

7517301

$2.99

16

COVER, IGNITION/COIL, LH, CHROME [15th ANNIV.]

5632602-156

$130.70

17

BUSHING, RECTANGULAR

5414353

$3.17

18

CLIP, SNAP-IN

7080756

$4.76

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

20

SCREW

7519370

$23.81

21

COVER, IGNITION COIL

5245659

Unavailable

21

COVER, IGNITION COIL, BLACK

5439044

$44.51

22

CLIP, TINNERMAN

7670136

$2.38
