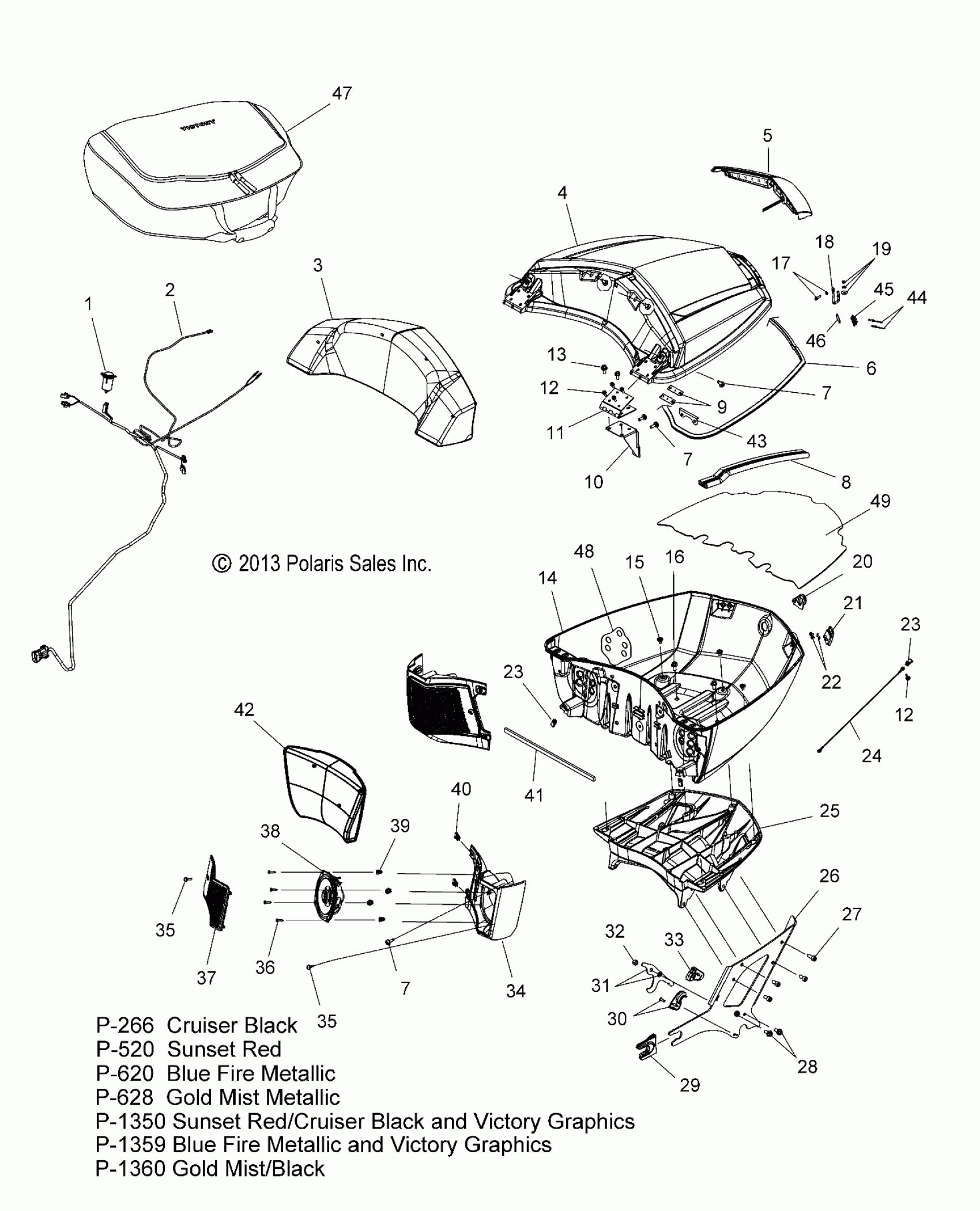

Polaris CROSS COUNTRY/TOURING/15th ANNIVERSARY ALL OPTIONS - V14DA/DB/DW/TW/ZW36 BODY, TRUNK ASM. - V14TW36 ALL OPTIONS (49VICTRUNK14CCT15) Diagram

#

Description
Price

1

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

2

HARNESS, TRUNK

2411348

$99.99

3

ASM., TOP PAD, TRUNK

2684423

$244.99

3

ASM., TOP PAD, TRUNK, 15TH ANNIV. [15th ANNIV.]

2685696

$257.99

4

PANEL, LID

5438159-266

$1,659.99

4

PANEL, LID

5438159-520

$1,339.99

4

PANEL, LID

5438159-628

$939.99

4

PANEL, LID

5438159-1359

Unavailable

5

ASM., LAMP, RUNNING

2411347

$153.79

6

SEAL

5521798

$31.75

7

SCREW

7518484

$4.76

7

SCREW

7518484

$4.76

7

SCREW

7518484

$4.76

8

COVER, WIRE, TRUNK LID

5521819

$89.03

9

ASM., PLATE, HINGE MOUNT, LID

2634025

$28.32

10

ASM., BRACKET, HINGE SUPPORT, LH

2634024

$44.99

10

ASM., BRACKET, HINGE SUPPORT, RH

2634023

$49.99

11

ASM., HINGE

2633934

$72.84

12

SCREW

7518875

$4.84

12

SCREW

7518875

$4.84

13

Screw

7517770

$2.38

14

BIN, TRUNK

5438158-266

Unavailable

14

BIN, TRUNK

5438158-620

Unavailable

14

BIN, TRUNK, KICKER [15th ANNIV.]

5439952-1350

$844.99

14

BIN, TRUNK

5438158-1360

$844.99

15

BOLT, SHOULDER

7518788

$7.14

16

SCREW

7517359

$4.35

17

WASHER

7555727

$0.40

17

SCREW

7518900

$3.17

18

HOOP, WIREFORM, LOCK

5336385

$43.65

19

NUT-M5X.8,HX NYL-Y

7546601

$1.19

19

WASHER

7556034

$2.38

19

WASHER

7556071

$4.76

20

ASM., LOCK

2633936

Unavailable

21

ASM., LATCH

2633935

$31.75

22

WASHER

7555727

$0.40

22

SCREW

7519233

$10.32

23

NUT, CLIP, U-SPEED

7547386

$2.38

23

NUT, CLIP, U-SPEED

7547386

$2.38

24

CABLE

7081653

$36.41

25

SUPPORT, TRUNK, CENTER

5137308-521

Unavailable

26

SUPPORT, TRUNK, SIDE, LH [FLAT BLACK]

1017622-463

Unavailable

26

SUPPORT, TRUNK, SIDE, LH [FLAT BLACK]

1017623-463

$159.99

27

SCREW

7517410

$10.99

28

SCREW

7517359

$4.35

29

MOUNT, SPOOL, FRONT

5413968

Unavailable

30

Rivet

7621462

$1.19

30

BUSHING, TRUNK MOUNT, LH

5438535

$27.78

30

BUSHING, TRUNK MOUNT, RH

5438474

$27.78

31

BUSHING

5438633

$7.14

31

LATCH, SUPPORT

5254096

$32.37

32

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

33

HANDLE, LATCH

5413864

$10.32

34

PANEL, SPEAKER HOUSING, LH

5438425

$67.46

34

PANEL, SPEAKER HOUSING, RH

5438426

$67.46

35

BOLT

7518515

Unavailable

35

BOLT

7518515

Unavailable

36

Screw

7518590

$3.17

37

PANEL, SPEAKER GRILL, LH

5438423

$44.51

37

PANEL, SPEAKER GRILL, RH

5438424

$44.51

38

SPEAKER [TOUR]

4012273

$254.98

39

NUT, PAL

7547324

$3.97

40

CLIP-U SPEED NUT

7081305

$1.98

41

GASKET, STRIP, FOAM

5813595

$3.97

42

ASM., BACKREST

2684424

Unavailable

42

ASM., BACKREST, 15TH ANNIV. [15th ANNIV.]

2685697

$205.99

43

ASM., BRACKET, LANYARD

2634044

$28.32

44

RIVET

7661993

$4.76

45

HASP, LATCH, TRUNK

5632443

$10.51

46

PLATE, LATCH, BACKER

5254213

Unavailable

47

LINER, TRUNK

2850011

Unavailable

48

DECAL, SPEAKER COVER

7178814

$30.99

49

MAT, FLOOR, TRUNK [INTL ONLY]

5813642

$62.92
