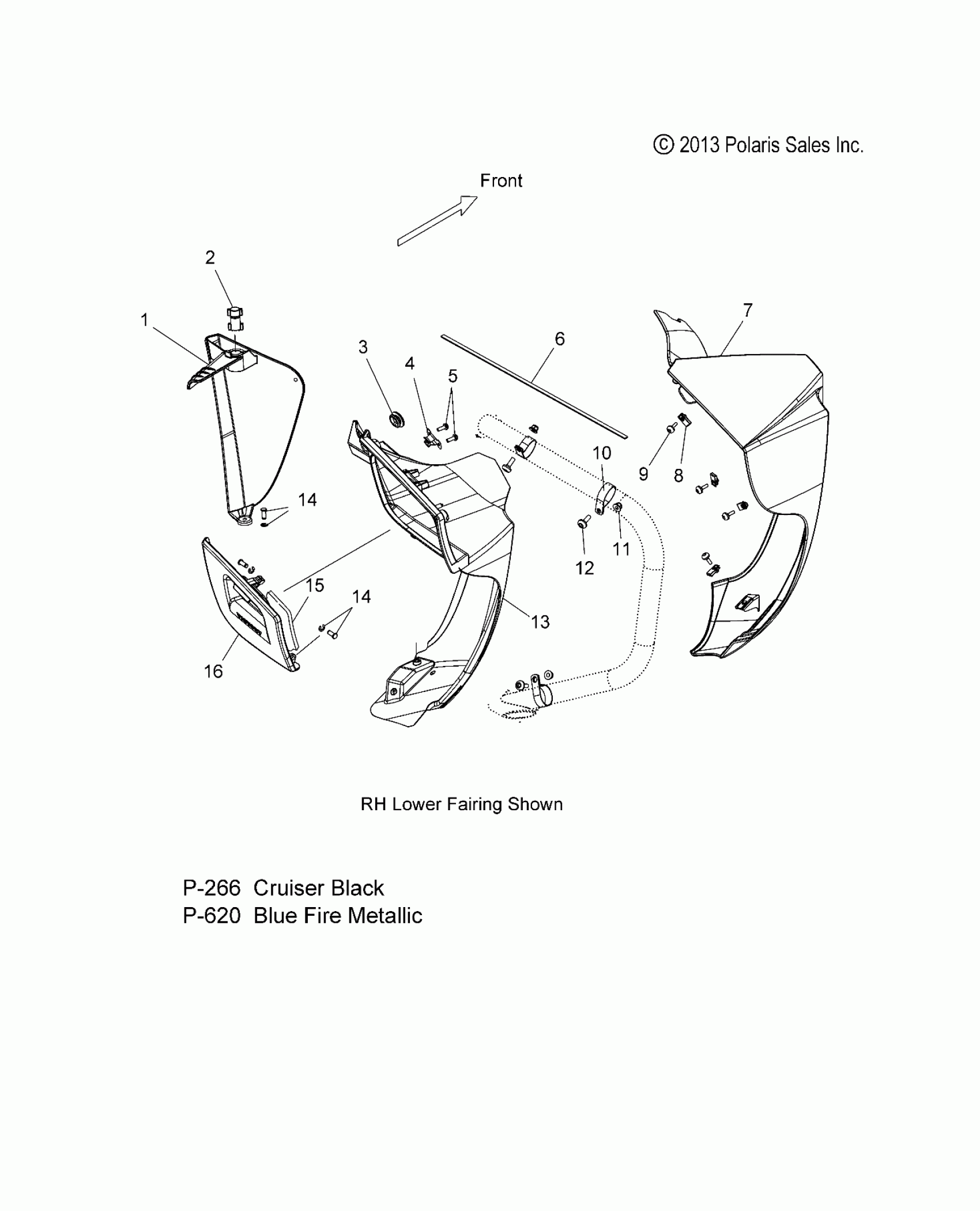

Polaris CROSS COUNTRY/TOURING/15th ANNIVERSARY ALL OPTIONS - V14DA/DB/DW/TW/ZW36 BODY, FAIRING, LOWER - V14DA/DB/DW/TW/ZW36 ALL OPTIONS (49VICFAIRING14CCT15) Diagram

#

Description
Price

1

FAIRING, VENT, RH

5438932

$60.70

1

FAIRING, VENT, LH

5438931

Unavailable

2

HINGE, FRICTION, LARGE

7081717

$76.89

3

GROMMET

5437772

$3.17

4

LATCH, STORAGE COMPARTMENT

7081715

$27.78

5

SCREW

7518641

$3.17

6

SEAL, COMPARTMENT

5813719

$13.49

7

FAIRING, OUTER, LH

5438927-266

$1,309.99

7

FAIRING, OUTER, RH

5438928-266

Unavailable

7

FAIRING, OUTER, LH

5438927-620

$744.99

7

FAIRING, OUTER, RH

5438928-620

Unavailable

8

NUT, CLIP, U SPEED

7547386

$2.38

9

SCREW

7518518

$1.59

10

CLAMP-HOSE

7080807

$9.52

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

12

SCREW

7518484

$4.76

13

FAIRING, INNER, LH

5438929

$189.99

13

FAIRING, INNER, RH

5438930

$189.99

14

E-CLIP

7710568

$3.17

14

PIN, CLEVIS

7661873

$23.81

14

E-CLIP

7710568

$3.17

14

PIN, CLEVIS

7661873

$23.81

15

SEAL, LH

5813764

Unavailable

15

SEAL, RH

5813765

$23.81

16

DOOR, FAIRING, ACCESS, LH

5438933

$59.99

16

DOOR, FAIRING, ACCESS, RH

5438934

$49.99
