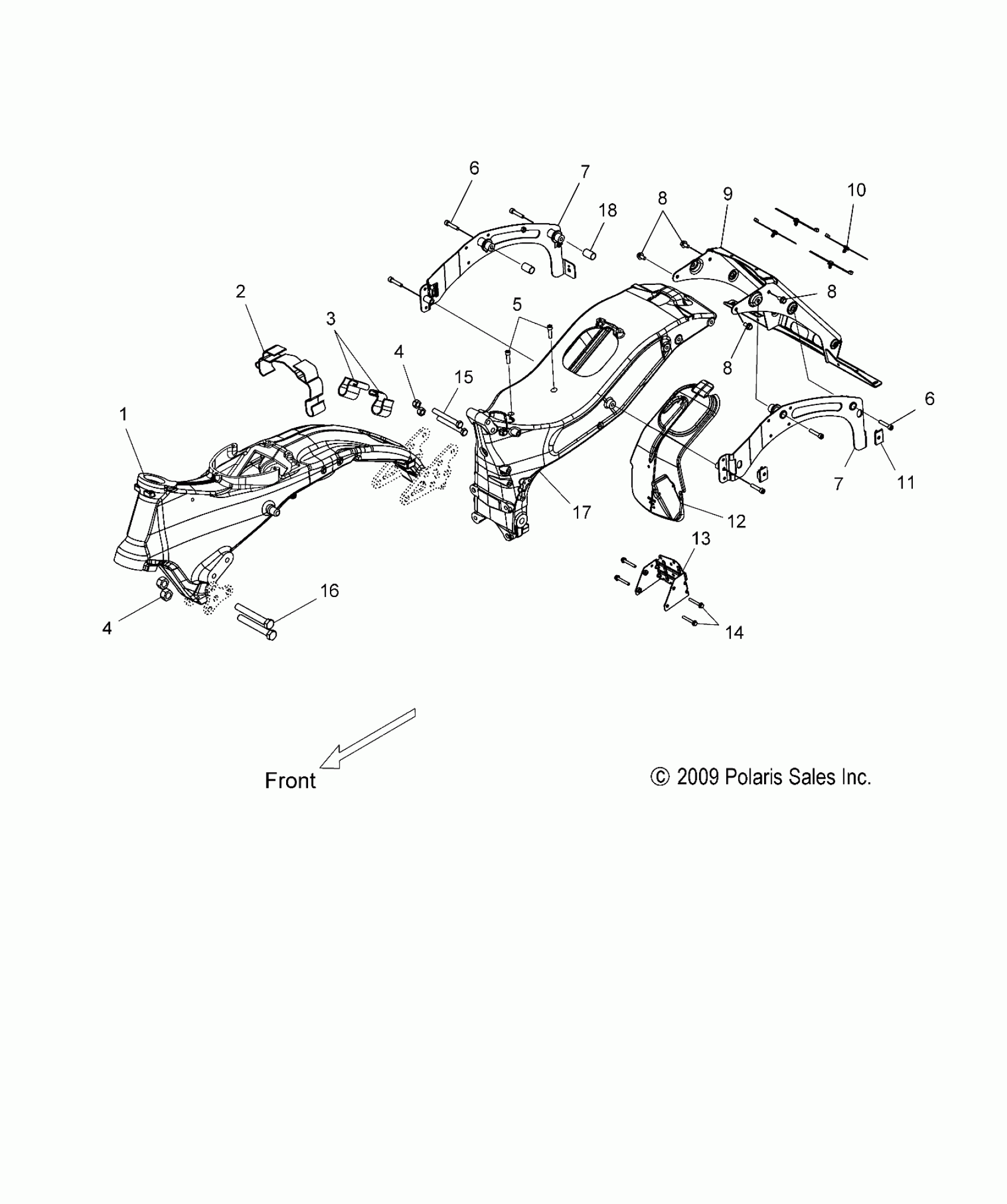

Polaris CROSS COUNTRY/CROSS ROADS ALL OPTIONS - V10DB36DA/EB36DA CHASSIS, FRAME ASM. - V10DB36DA/EB36DA ALL OPTIONS (49VICFRAME10CC) Diagram

#

Description
Price

1

ASM., AIRBOX, FRAME, SUB, BLACK

1016470-521

Unavailable

2

CLIP, AIRBOX LINES

5438092

Unavailable

3

CLIP, EXTRUDED, HARNESS

5521778

Unavailable

4

NUT

7547232

$23.99

5

SCREW

7517361

$23.99

6

SCREW

7518178

Unavailable

7

Bracket, SB, LH

1017594

Unavailable

7

Bracket, SB, RH

1017595

Unavailable

7

Bracket, SB, LH

1017594

Unavailable

7

Bracket, SB, RH

1017595

Unavailable

8

SCREW

7519005

$3.99

8

SCREW

7519005

$3.99

9

Substructure, Rear, Black

1016446-329

Unavailable

10

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

11

RECEPTACLE, 1/4 TURN

7052462

Unavailable

12

FLAP, DEBRIS

5813569

Unavailable

13

BRACKET, CRUISE CONTROL

1017358

Unavailable

14

Screw

7517950

$5.59

15

SCREW

7518125

$11.19

16

SCREW

7519028

$7.19

17

FRAME, MAIN, REAR, BLACK

5136323-521

Unavailable

18

Bushing, Split

5438388

$4.99
