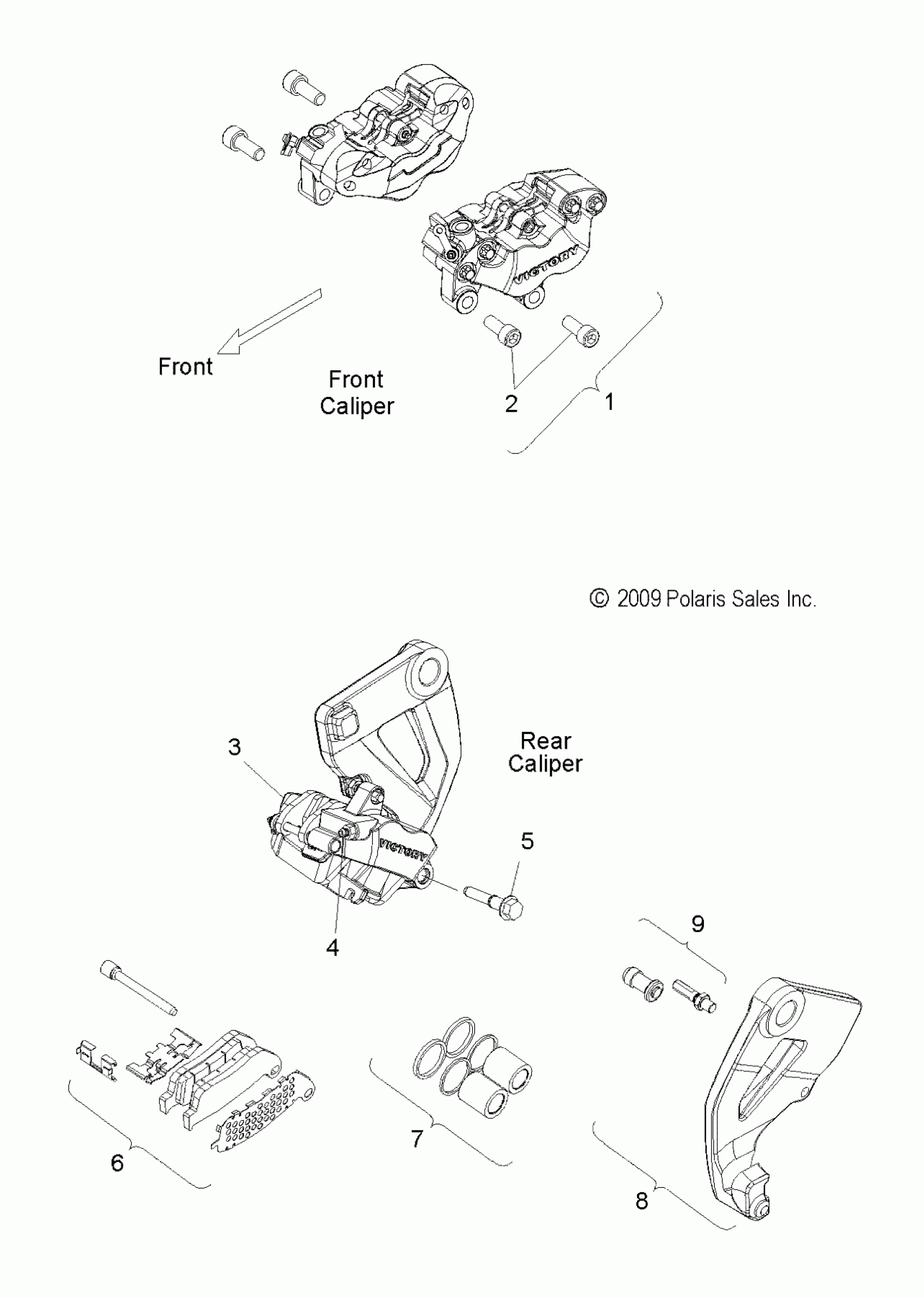

Polaris CROSS COUNTRY/CROSS ROADS ALL OPTIONS - V10DB36DA/EB36DA BRAKES, CALIPER, FRONT and REAR - V10DB36DA/EB36DA ALL OPTIONS (49VICCALIPER10CC) Diagram

#

Description

Price

1

Asm., Caliper, LH, Black

1911512-266

$329.19

1

ASM., CALIPER, RH, BLACK

1911513-266

$329.19

1

KIT, O-RING BLEEDER SET

2204193

$32.37

1

KIT, PISTON SET, 30MM/34MM

2204194

$116.17

1

4 PISTON BRAKE PAD SET

2204196

$74.19

2

SCREW

7517990

Unavailable

3

Asm., Caliper, Rear, LH, Black

1910926-266

$454.99

4

KIT, BLEEDER SET [1 PER KIT]

2203673

$34.99

5

KIT, PIN BOLT, REAR

2203825

$10.51

6

KIT, PAD SET, REAR [INCL. PADS, INSULATOR, SPRING, RETAINER, PIN HANGER, STOPPER RING]

2203679

Unavailable

7

KIT, PISTON SET, REAR [INCL. PISTON SEAL, DUST SEAL, JOINT SEAL, STOPPER RING]

2203680

$111.33

8

KIT, BRACKET SET [INCL. BOLT PIN, BRACKET, PIN BUSH BOOT, B-BOOT (NOT SHOWN)]

2203682

$347.60

9

KIT, PIN BOOT, REAR [INCL. PIN BOOT BUSH, PIN BOLT, B-BOOT (NOT SHOWN)]

2203684

$56.65
