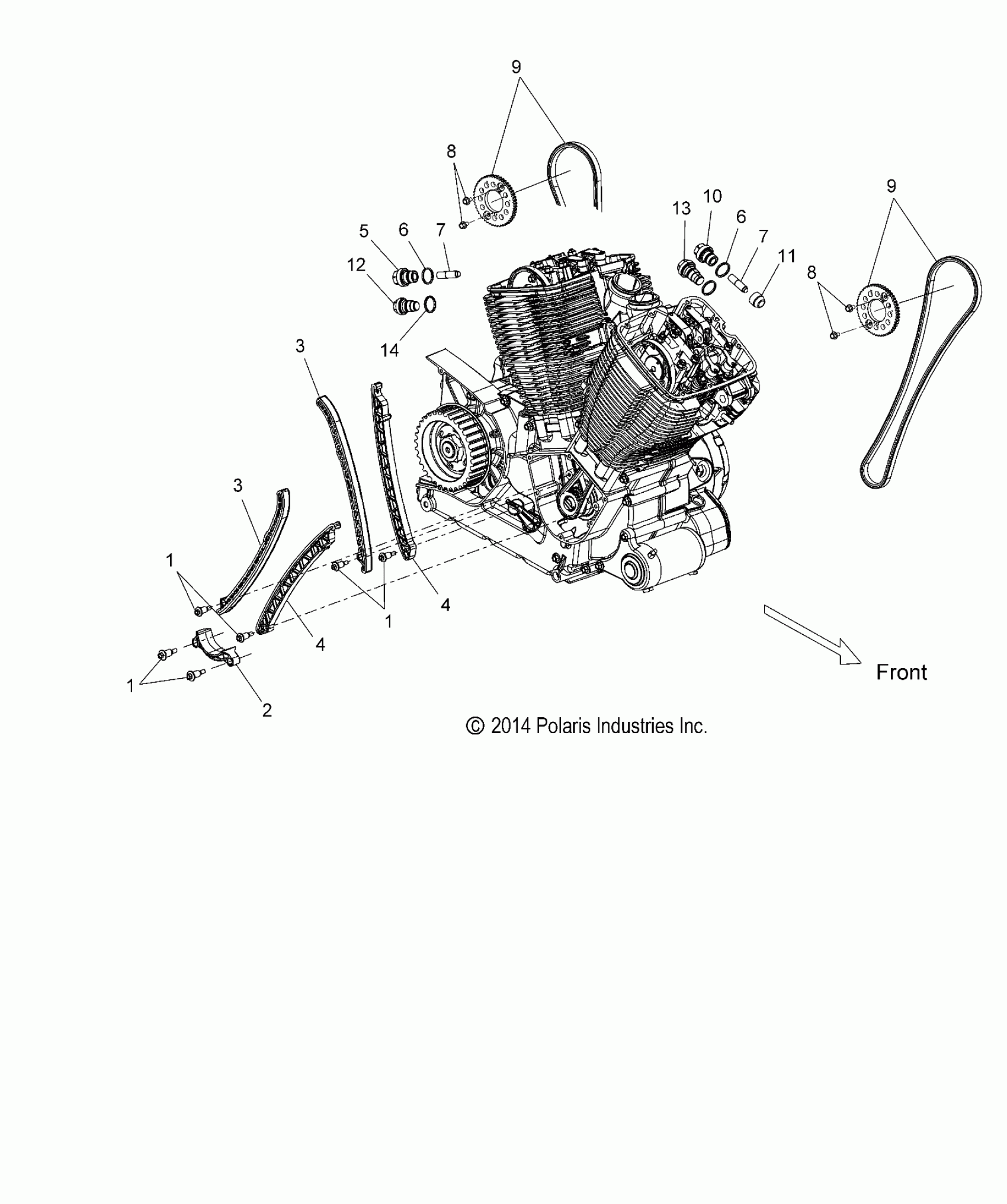

Polaris CROSS COUNTRY 8 BALL ALL OPTIONS - V15DA36 ENGINE, CAMCHAIN - V15DA36 (49VICCAMCHAIN15LB) Diagram

#

Description
Price

1

BOLT

7518328

$6.46

1

BOLT

7518328

$6.46

1

BOLT

7518328

$6.46

2

GUARD, CAM DRIVE, LOWER [BUILT 11/03/2014 AND BEFORE]

3021614

$20.22

2

GUARD, CAM DRIVE, LOWER, LGB [BUILT 11/04/2014 AND AFTER]

3022609

$20.22

3

ASM., BLADE CAM DRIVE [BUILT 11/03/2014 AND BEFORE]

3022583

$28.32

3

ASM., BLADE CAM DRIVE, LGB [BUILT 11/04/2014 AND AFTER]

3022607

$28.32

3

ASM., BLADE CAM DRIVE [BUILT 11/03/2014 AND BEFORE]

3022583

$28.32

3

ASM., BLADE CAM DRIVE, LGB [BUILT 11/04/2014 AND AFTER]

3022607

$28.32

4

ASM., GUIDE, CAM DRIVE [BUILT 11/03/2014 AND BEFORE]

3021518

$32.37

4

ASM., GUIDE, CAM DRIVE, LGB [BUILT 11/04/2014 AND AFTER]

3022608

$32.37

4

ASM., GUIDE, CAM DRIVE [BUILT 11/03/2014 AND BEFORE]

3021518

$32.37

4

ASM., GUIDE, CAM DRIVE, LGB [BUILT 11/04/2014 AND AFTER]

3022608

$32.37

5

PLUG, TENSIONER, REAR [BUILT 11/03/2014 AND BEFORE]

3021923

Unavailable

6

WASHER, SEALING

7556310

$10.32

6

WASHER, SEALING

7556310

$10.32

7

TENSIONER, HYDRAULIC [BUILT 11/03/2014 AND BEFORE]

3021517

$58.08

7

TENSIONER, HYDRAULIC [BUILT 11/03/2014 AND BEFORE]

3021517

$58.08

8

SCREW

7517257

$9.52

8

SCREW

7517257

$9.52

9

KIT, CAMCHAIN AND SPROCKET [BUILT 11/03/2014 AND BEFORE]

2204618

$125.86

9

KIT, CAMCHAIN AND SPROCKET, LGB [BUILT 11/04/2014 AND AFTER]

2206002

$125.86

9

KIT, CAMCHAIN AND SPROCKET [BUILT 11/03/2014 AND BEFORE]

2204618

$125.86

9

KIT, CAMCHAIN AND SPROCKET, LGB [BUILT 11/04/2014 AND AFTER]

2206002

$125.86

10

PLUG, TENSIONER, FRONT

3021922

Unavailable

11

SLEEVE, DAMPER, CAM DRIVE

3021668

Unavailable

12

TENSIONER, HYDRAULIC, LGB [BUILT 11/04/2014 AND AFTER]

3022606

Unavailable

13

ASM., TENSIONER, HYDRAULIC, FRONT [BUILT 11/04/2014 AND AFTER][INCL. SLEEVE]

3022632

Unavailable

14

WASHER, SEALING, LGB [BUILT 11/04/2014 AND AFTER]

7556797

$10.32
