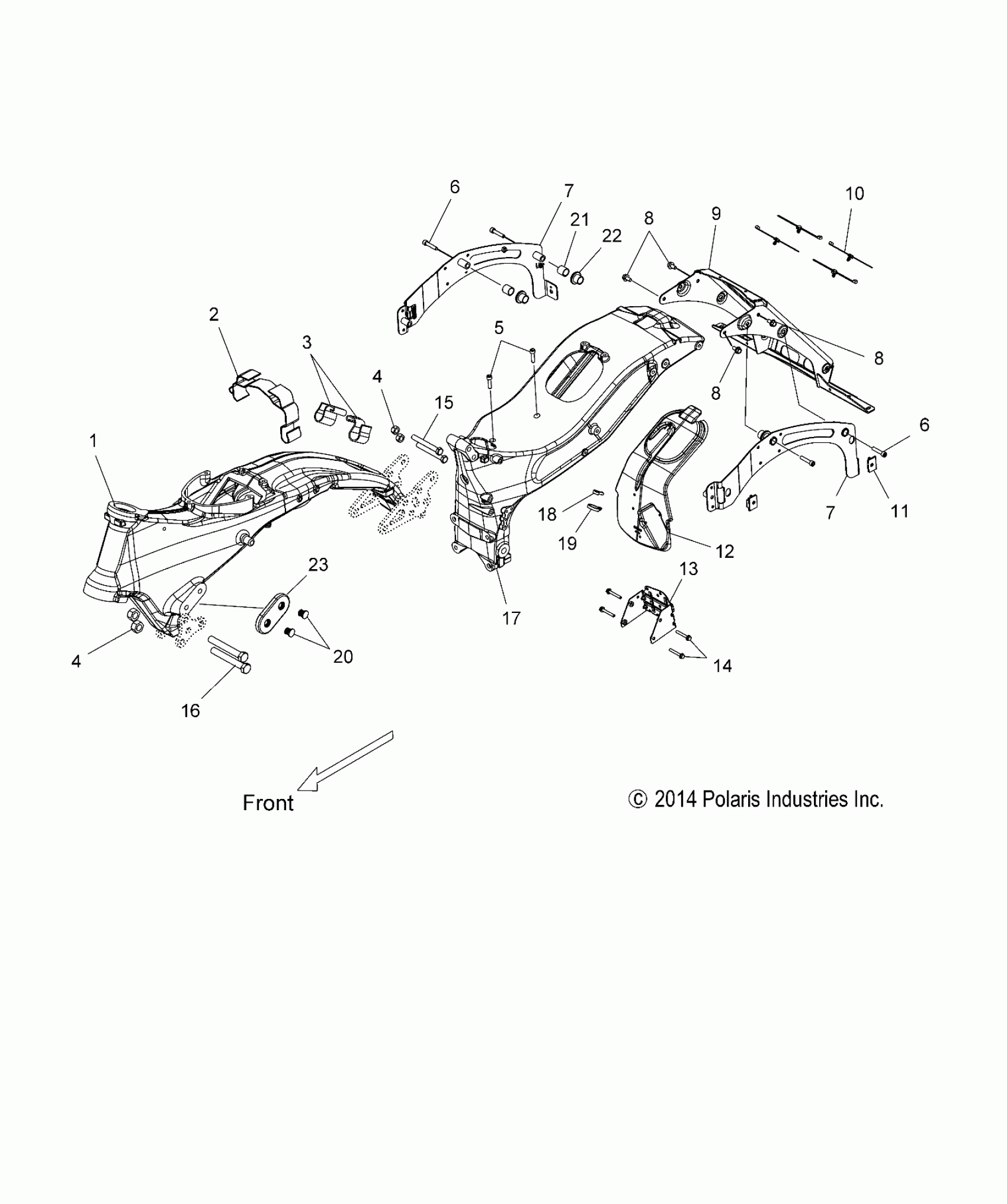

Polaris CROSS COUNTRY 8 BALL ALL OPTIONS - V15DA36 CHASSIS, FRAME ASM. - V15DA36 ALL OPTIONS (49VICFRAME15CC8) Diagram

#

Description
Price

1

ASM., AIRBOX, FRAME, SUB, BLACK

1016470-521

Unavailable

2

CLIP, AIRBOX LINES

5438092

Unavailable

3

CLIP, EXTRUDED, HARNESS

5521778

Unavailable

4

NUT

7547232

$23.81

4

NUT

7547232

$23.81

5

SCREW

7517361

$23.81

6

SCREW

7518178

$7.14

6

SCREW

7518178

$7.14

7

BRACKET, SB, RH

1017863

$149.99

7

BRACKET, SB, LH

1017862

$144.99

7

BRACKET, SB, RH

1017863

$149.99

7

BRACKET, SB, LH

1017862

$144.99

8

SCREW

7519005

$3.97

8

SCREW

7519005

$3.97

8

SCREW

7519005

$3.97

9

SUBSTRUCTURE, REAR, BLACK

1017822-329

Unavailable

10

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

11

RECEPTACLE, 1/4 TURN

7052462

$23.81

12

FLAP, DEBRIS

5813569

$19.51

13

BRACKET, CRUISE CONTROL

1017358

$54.99

14

Screw

7517950

$5.56

15

SCREW

7518125

$11.11

16

SCREW

7519028

$7.14

17

FRAME, MAIN, REAR, BLACK

5136323-521

$1,279.99

18

Clip, Silencer

7670102

$2.38

19

CLIP

7081645

Unavailable

20

PLUG, NYLON

7670131

$4.84

21

BUSHING

5438724

$8.73

22

BUSHING, FLANGED

5438725

$12.70

23

COVER, HWY BAR MOUNT

5414106

$11.32
