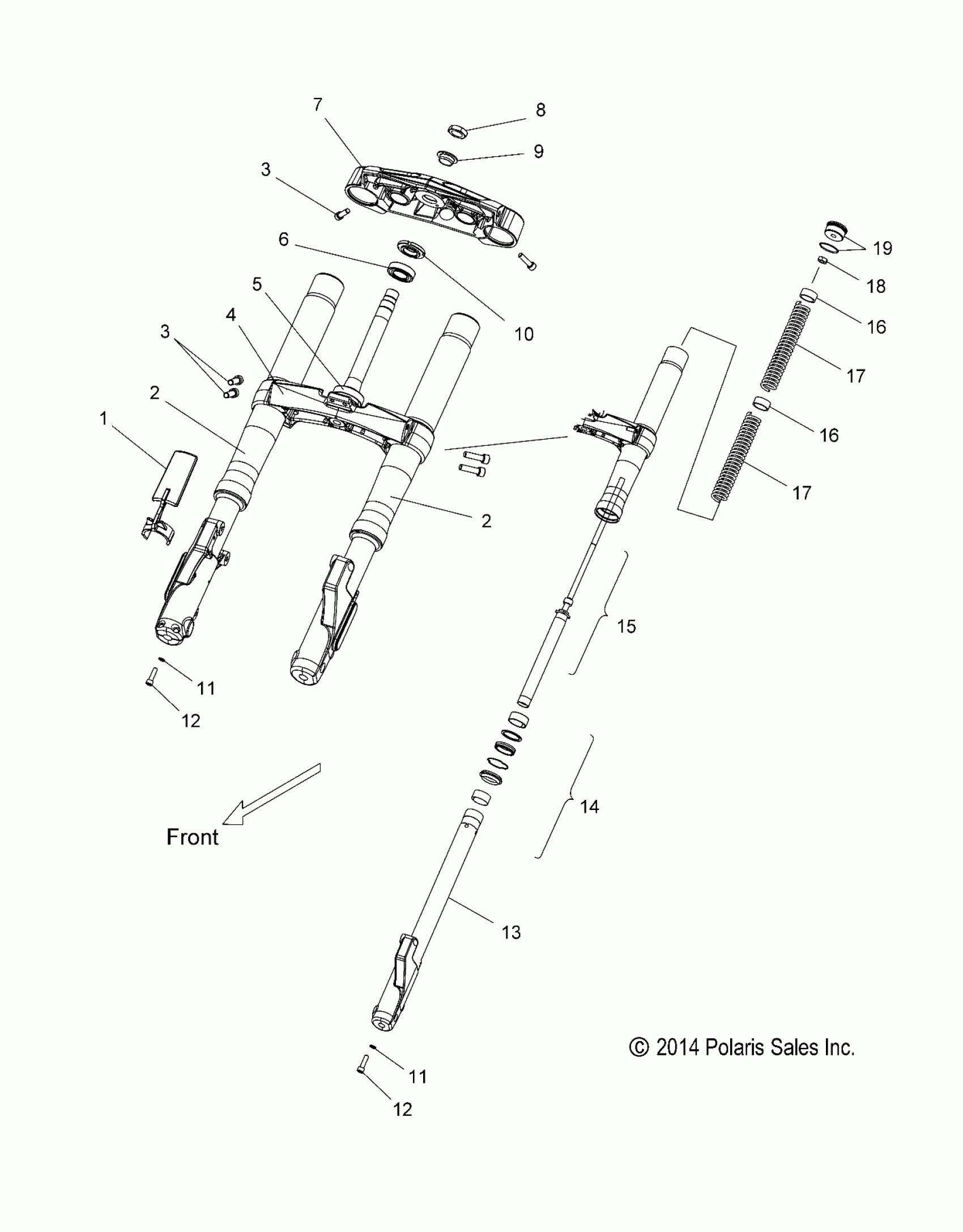

Polaris CROSS COUNTRY 8 BALL ALL OPTIONS (R02) - V16DA36 SUSPENSION, FRONT FORKS - V16DA36 ALL OPTIONS (49VICFORKS15CC8) Diagram

#

Description
Price

1

GUARD, FORK, BLACK

5438430

Unavailable

2

ASM., FORK LEG, LH, BLACK/BLACK

1823818-1261

$1,249.99

2

ASM., FORK LEG, RH, BLACK/BLACK

1823819-1261

Unavailable

2

ASM., FORK LEG, LH, BLACK/BLACK

1823818-1261

$1,249.99

2

ASM., FORK LEG, RH, BLACK/BLACK

1823819-1261

Unavailable

3

SCREW

7517361

$23.81

3

SCREW

7517361

$23.81

4

ASM., LOWER TRIPLE CLAMP, BLACK

1823697-067

$319.99

5

BEARING, NEEDLE

3514416

$35.71

6

BEARING, BALL

3514549

$23.81

7

CLAMP, UPPER, FLAT BLACK

5136369-463

$349.99

8

Nut, Top, Triple Clamp

5134148

$31.75

9

SPACER, STEERING

5137035

$31.75

10

NUT, STEERING HEAD

5134094

$31.75

11

PACKING

1500798

$7.27

11

PACKING

1500798

$7.27

12

BOLT

7519082

$5.56

12

BOLT

7519082

$5.56

13

TUBE, INNER, RH [INCL. 3]

5137272-411

$629.99

13

TUBE, INNER, LH [INCL. 3]

5137271-411

$629.99

14

KIT, SEALS AND BUSHING

2204214

Unavailable

15

CARTRIDGE

5137269

Unavailable

16

GUIDE, SPRING, UPPER

7556549

$34.99

16

GUIDE, SPRING, LOWER

7556548

$10.51

16

GUIDE, SPRING, UPPER

7556549

$34.99

16

GUIDE, SPRING, LOWER

7556548

$10.51

17

SPRING, LOWER

7043625

Unavailable

17

SPRING, UPPER

7043626

$99.99

17

SPRING, LOWER

7043625

Unavailable

17

SPRING, UPPER

7043626

$99.99

18

NUT

7547446

$4.76

19

SEAL, O-RING

5413723

$36.41

19

CAP [INCL. O-RING]

5137268

$36.41
