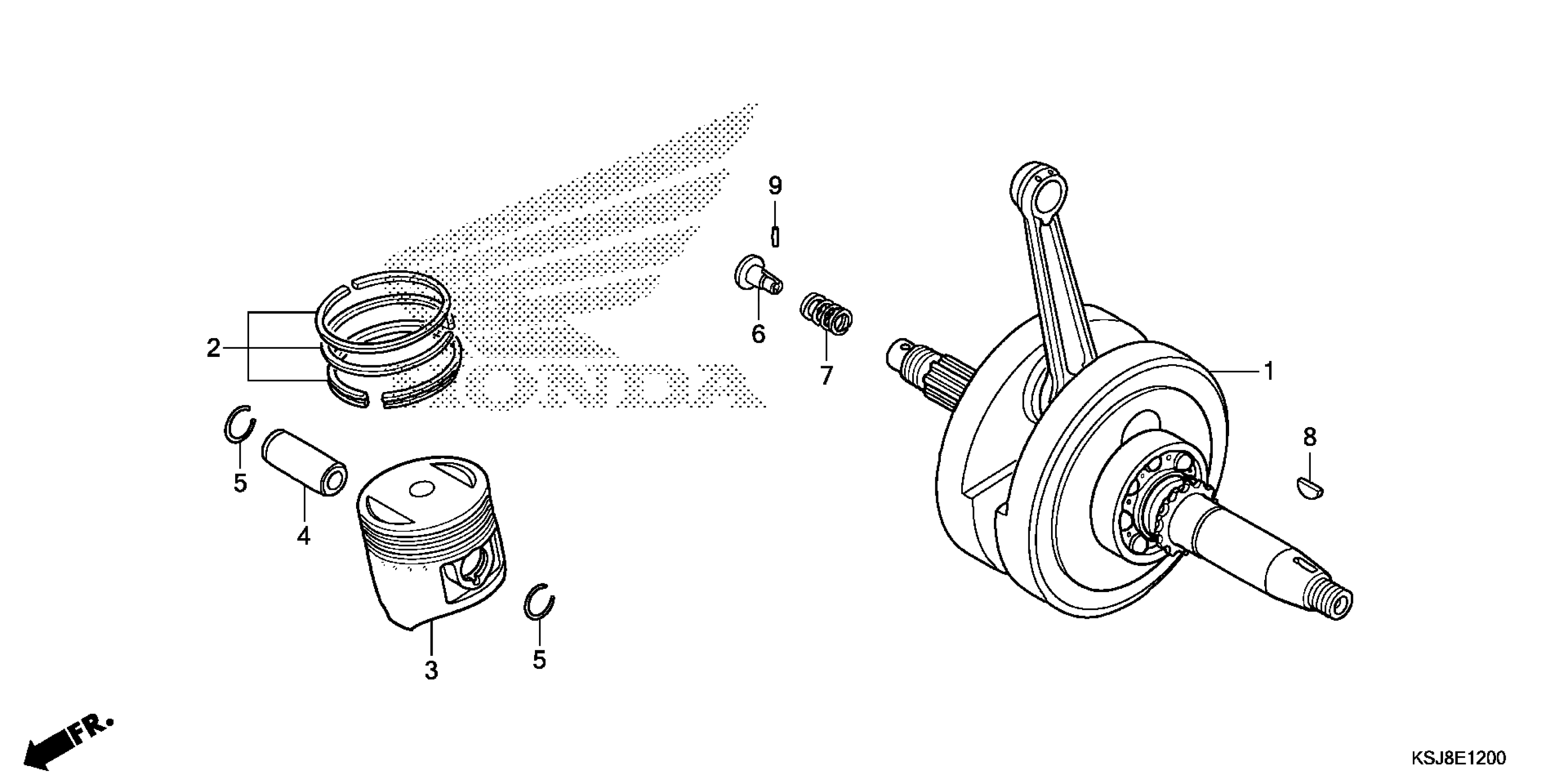

Honda CRF80FAC (13) CRF80F, JPN, VIN# JH2HE011-DK200001 CRANKSHAFT + PISTON (CRF80F) Diagram

CRANKSHAFT

13000-GN1-A40

$382.16

RING SET, PISTON (STD) (RIKEN)

13011-GN1-A41

$36.86

RING SET, PISTON (0.25) (RIKEN) | (Optional).

13021-GN1-A41

$39.10

RING SET, PISTON (0.50) (RIKEN) | (Optional).

13031-GN1-A41

$36.86

RING SET, PISTON (0.75) (RIKEN) | (Optional).

13041-GN1-A41

$39.10

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13051-GN1-A41

$39.10

PISTON (STD)

13101-GN1-A40

$49.43

PISTON (0.25) | (Optional).

13102-GN1-A40

$52.43

PISTON (0.50) | (Optional).

13103-GN1-A40

$49.43

PISTON (0.75) | (Optional).

13104-GN1-A40

$52.43

PISTON (1.00) | (Optional).

13105-GN1-A40

Unavailable

PIN, PISTON

13111-GB0-910

$11.67

PIN, PISTON This part replaces 13111-087-000.

13111-GB0-910

$11.67

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

THROUGH, OIL

15441-149-000

$10.12

SPRING, OIL THROUGH

15447-149-000

$2.92

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

ROLLER (2X11.8)

96220-20118

$1.49
