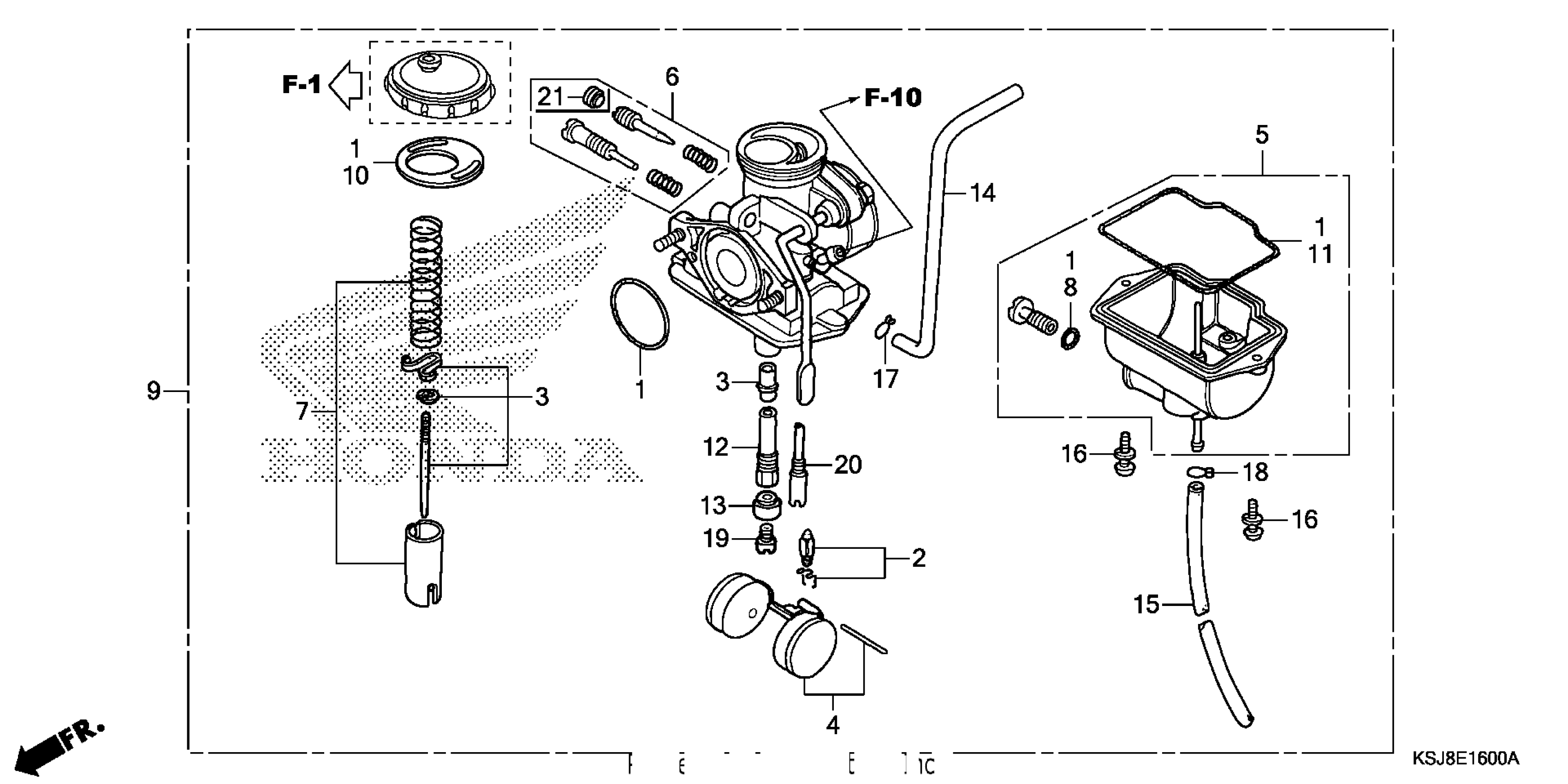

Honda CRF80FAC (13) CRF80F, JPN, VIN# JH2HE011-DK200001 CARBURETOR (CRF80F) Diagram

#

Description
Price

1

GASKET SET

16010-GCR-000

$12.71

1

GASKET SET This part replaces 16010-116-700.

16010-GCR-000

$12.71

1

GASKET SET This part replaces 16010-116-701.

16010-GCR-000

$12.71

2

VALVE SET, FLOAT

16011-GN1-A81

$30.57

3

NEEDLE SET, JET

16012-GFW-A01

$24.79

4

FLOAT SET

16013-107-810

$32.93

5

CHAMBER SET, FLOAT

16015-GN1-671

Unavailable

6

SCREW SET

16016-GFW-A71

Unavailable

7

VALVE SET, THROTTLE

16022-153-004

$47.21

8

O-RING This part replaces 16075-GCR-000.

16178-ZJ0-911

$2.29

8

O-RING

16178-ZJ0-911

$2.29

9

CARBURETOR ASSY. (PC20T A)

16100-GFW-A71

$196.18

10

GASKET, TOP

16110-GN1-771

$7.47

11

GASKET, FLOAT CHAMBER

16163-GFW-A21

$8.90

12

HOLDER, NEEDLE JET

16165-GN1-682

$28.15

13

HOLDER, JET

16168-355-700

$7.75

14

TUBE, AIR VENT

16199-KN4-A61

$5.81

15

TUBE, OVERFLOW

16199-435-771

$10.46

16

SCREW-WASHER (4X12)

93892-04012-08

$0.72

17

CLIP, TUBE (B7)

95002-02070

$1.62

18

CLIP, TUBE (B6.5)

95002-02650

$1.37

19

JET, MAIN (#90) | (Optional). This part replaces 99101-116-0900.

99102-GHB-0900

$8.70

19

JET, MAIN (#90) | (Optional).

99102-GHB-0900

$8.70

19

JET, MAIN (#95)

99102-GHB-0950

$8.70

20

JET, SLOW (#35)

99103-GN1-0350

$13.09

21

CAP, ADJUSTING SCREW

16312-KYK-911

$2.50
