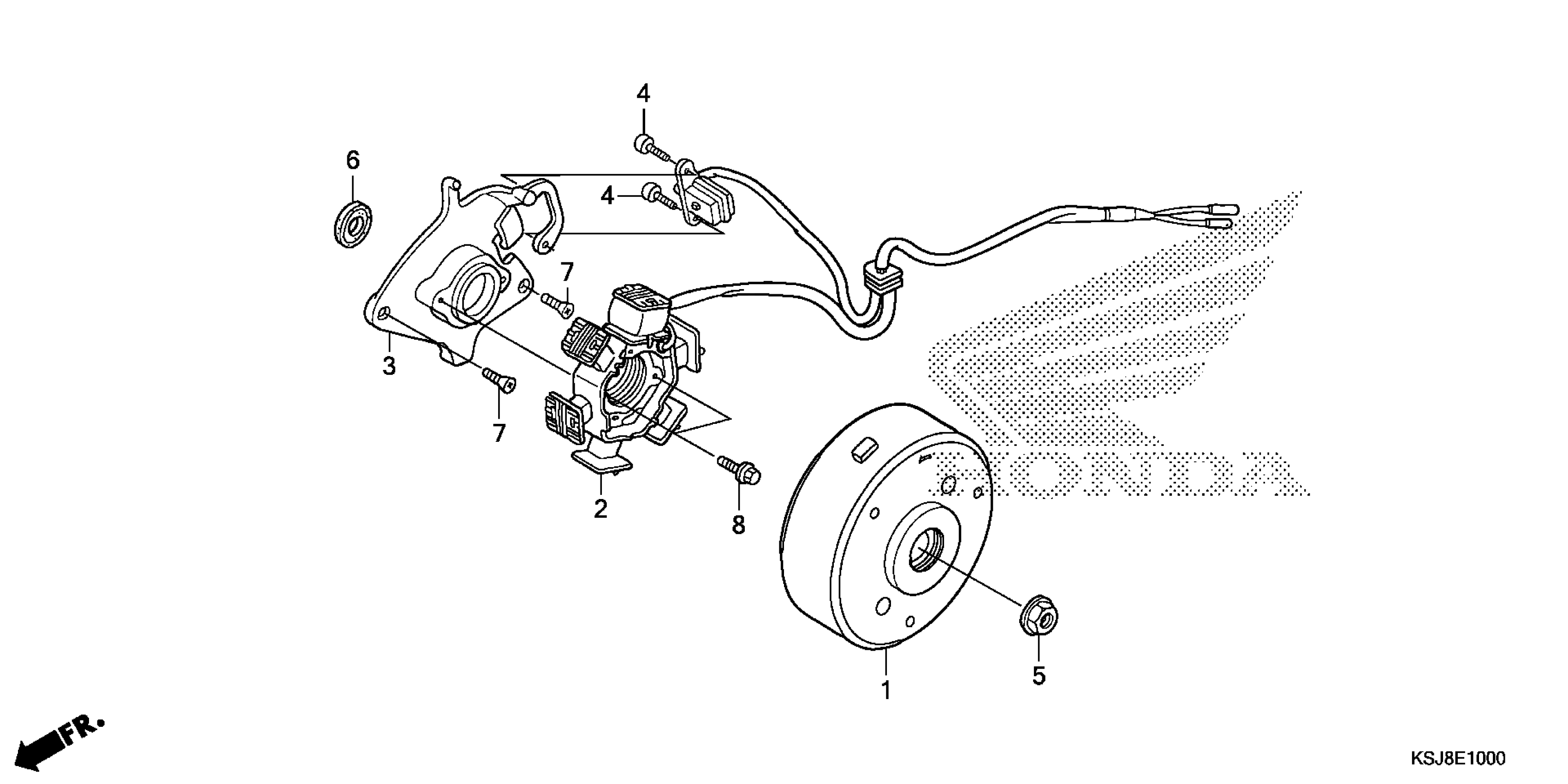

Honda CRF80FAC (13) CRF80F, JPN, VIN# JH2HE011-DK200001 ALTERNATOR (CRF80F) Diagram

#

Description

Price

1

FLYWHEEL (MITSUBA)

31110-GN1-691

$233.84

2

STATOR (MITSUBA)

31120-GN1-691

$215.77

3

BASE, STATOR

31131-GT9-000

$53.85

4

SET (SOCKET5X10) This part replaces 90089-GT9-000.

90089-GT9-305

$2.85

5

NUT, FLANGE (12MM)

90309-375-003

$7.73

6

OIL SEAL (19X36X7)

91202-115-015

$6.82

7

SCREW, FLAT (6X16)

93600-06016-0A

$0.90

8

BOLT, FLANGE (6X20)

96001-06020-00

$1.13
