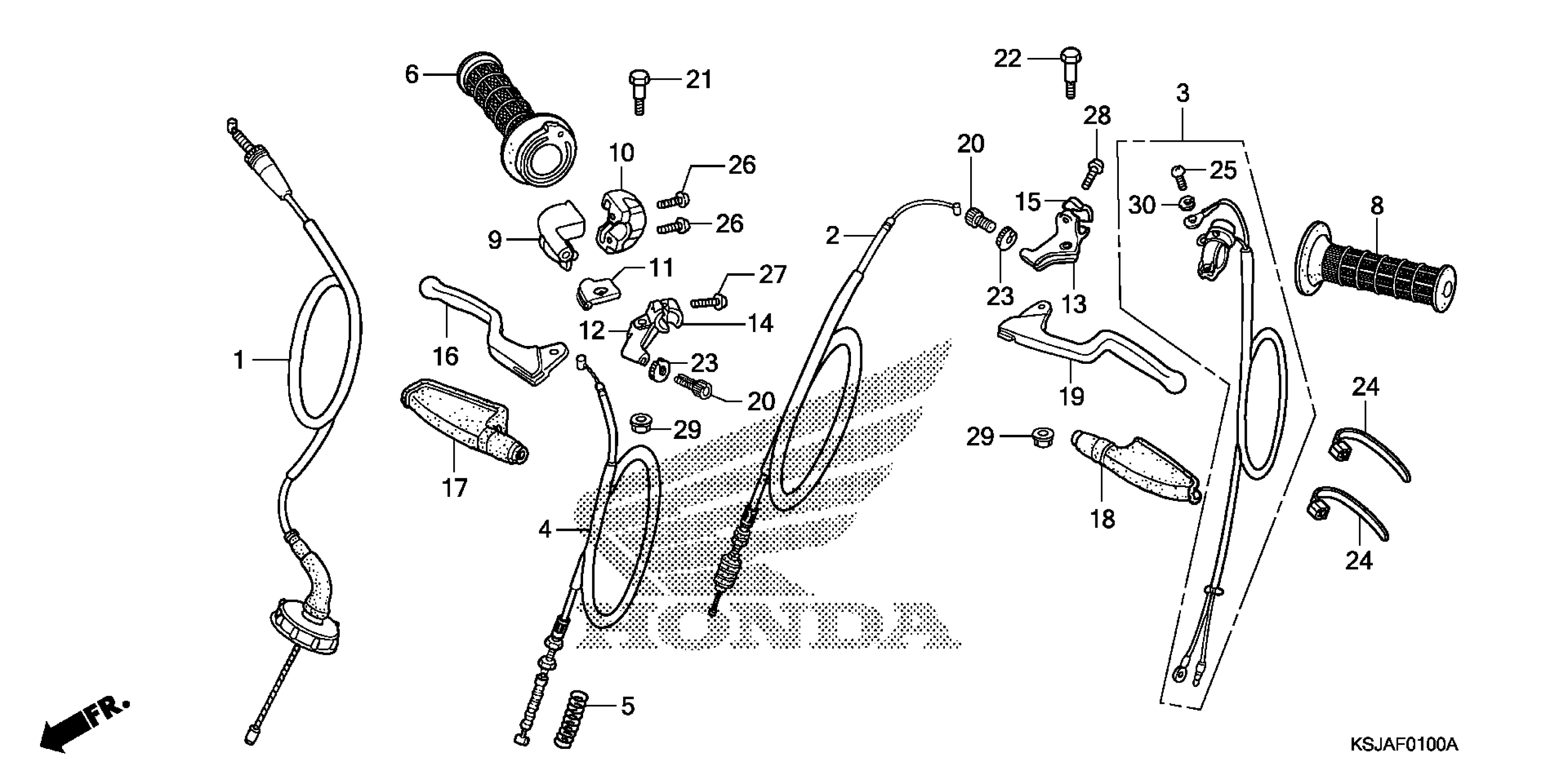

Honda CRF80FA (11) MOTORCYCLE, JPN, VIN# JH2HE010-BK900001 HANDLE LEVER + CABLE Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-GN1-A80

$28.14

2

CABLE, CLUTCH

22870-GN1-A50

$23.06

3

SWITCH ASSY., ENGINE STOP

35130-KN4-852

$28.90

4

CABLE, FR. BRAKE

45450-GN1-A21

$23.49

5

SPRING, BRAKE CABLE

45454-KN4-A60

$4.31

6

GRIP, THROTTLE (COO)

53140-GFW-305

$29.91

6

GRIP, THROTTLE (COO) This part replaces 53140-446-010.

53140-GFW-305

$29.91

8

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$8.47

9

HOUSING, THROTTLE (UPPER)

53167-KA2-010

$18.77

10

HOUSING, THROTTLE (LOWER)

53168-KA2-010

$17.53

11

SLIDER, THROTTLE

53169-KA2-000

$4.53

12

BRACKET, R. HANDLE LEVER

53171-KT0-840

Unavailable

13

BRACKET, L. HANDLE LEVER

53172-KT0-840

$28.65

14

HOLDER, LEVER BRACKET

53173-KT0-840

$13.10

15

HOLDER, LEVER BRACKET

53173-958-000

$9.52

16

LEVER, R. HANDLEBAR This part replaces 53175-GFW-305.

53175-KT0-840

$36.86

16

LEVER, R. HANDLEBAR

53175-KT0-840

$36.86

17

COVER, R. HANDLE LEVER

53176-428-010

$9.01

18

COVER, L. HANDLE LEVER

53177-430-000

$9.88

19

LEVER, L. HANDLEBAR This part replaces 53178-GFW-305.

53178-GN1-A00

$33.64

19

LEVER, L. HANDLEBAR

53178-GN1-A00

$33.64

20

BOLT, WIRE ADJUSTING

53192-268-000

$6.08

21

BOLT, HANDLE LEVER PIVOT

90113-KA3-710

$3.64

22

BOLT, HANDLE LEVER PIVOT

90113-429-770

$5.54

23

NUT, FIXING

90321-315-670

$6.80

24

BAND, WIRE

90650-KW3-000

$4.16

25

SCREW, PAN (4X12)

93500-04012-0A

$0.75

25

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.75

26

SCREW, PAN (5X16)

93500-05016-0G

$0.83

27

SCREW, PAN (5X18)

93500-05018-0A

$0.75

28

SCREW, PAN (5X20)

93500-05020-0A

$0.75

29

NUT, FLANGE (6MM)

94050-06000

$0.59

30

WASHER, SPRING (4MM)

94111-04000

$0.97
