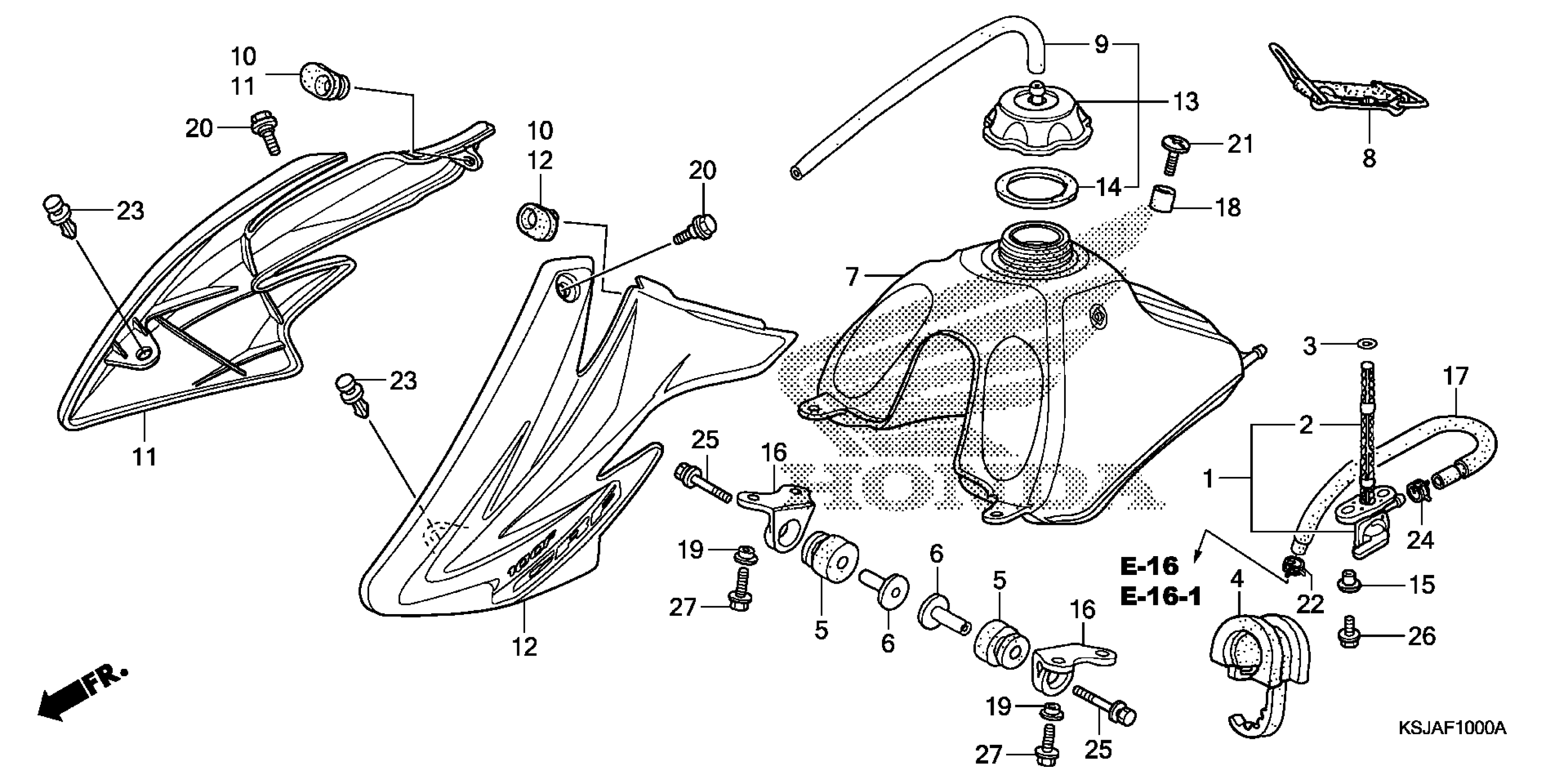

Honda CRF80FA (11) MOTORCYCLE, JPN, VIN# JH2HE010-BK900001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-KSJ-A21

$57.28

2

SCREEN SET, FUEL STRAINER

16952-KSJ-A21

$20.10

3

O-RING (11.8X3.55)

16997-467-000

$2.04

4

RUBBER, TANK SETTING

17504-GN1-770

$14.15

5

RUBBER, TANK MOUNTING

17508-GBF-830

$5.64

6

COLLAR, TANK SETTING

17509-KN4-A60

$5.68

7

TANK, FUEL

17510-KSJ-A20

$358.16

8

BAND, RR. TANK

17516-KSJ-670

$13.49

9

TUBE, FUEL CAP BREATHER

17521-429-000

$6.66

10

GROMMET, SHROUD

17541-KN4-A60

$2.63

11

SHROUD SET, R. TANK (TYPE1) (WL) | Extreme red R292R;

17545-GFW-A31ZA

Unavailable

12

SHROUD SET, L. TANK (TYPE1) (WL) | Extreme red R292R;

17555-GFW-A31ZA

Unavailable

13

CAP ASSY., FUEL TANK

17620-GEL-770

$28.87

14

GASKET, FUEL CAP

17624-GEL-770

$4.38

15

COLLAR, FUEL TANK SETTING

17626-467-000

$4.56

16

BRACKET, FR. FUEL TANK

17634-KZ3-860

$13.34

17

TUBE, FUEL

17681-GFW-A20

Unavailable

18

COLLAR, BATTERY (LOWER)

83607-356-000

$2.75

19

COLLAR

84706-415-000

$2.16

20

BOLT, FLANGE (6MM)

90113-GF0-000

$4.04

21

SCREW, SPECIAL (6X17)

90381-GZ5-000

$1.85

22

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.34

23

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

24

CLAMP, TUBE (8.5)

90653-KSJ-A20

$1.34

25

BOLT-WASHER (6X40)

93404-06040-00

$1.18

26

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable

27

BOLT, FLANGE (6X16)

96001-06016-00

$0.97
