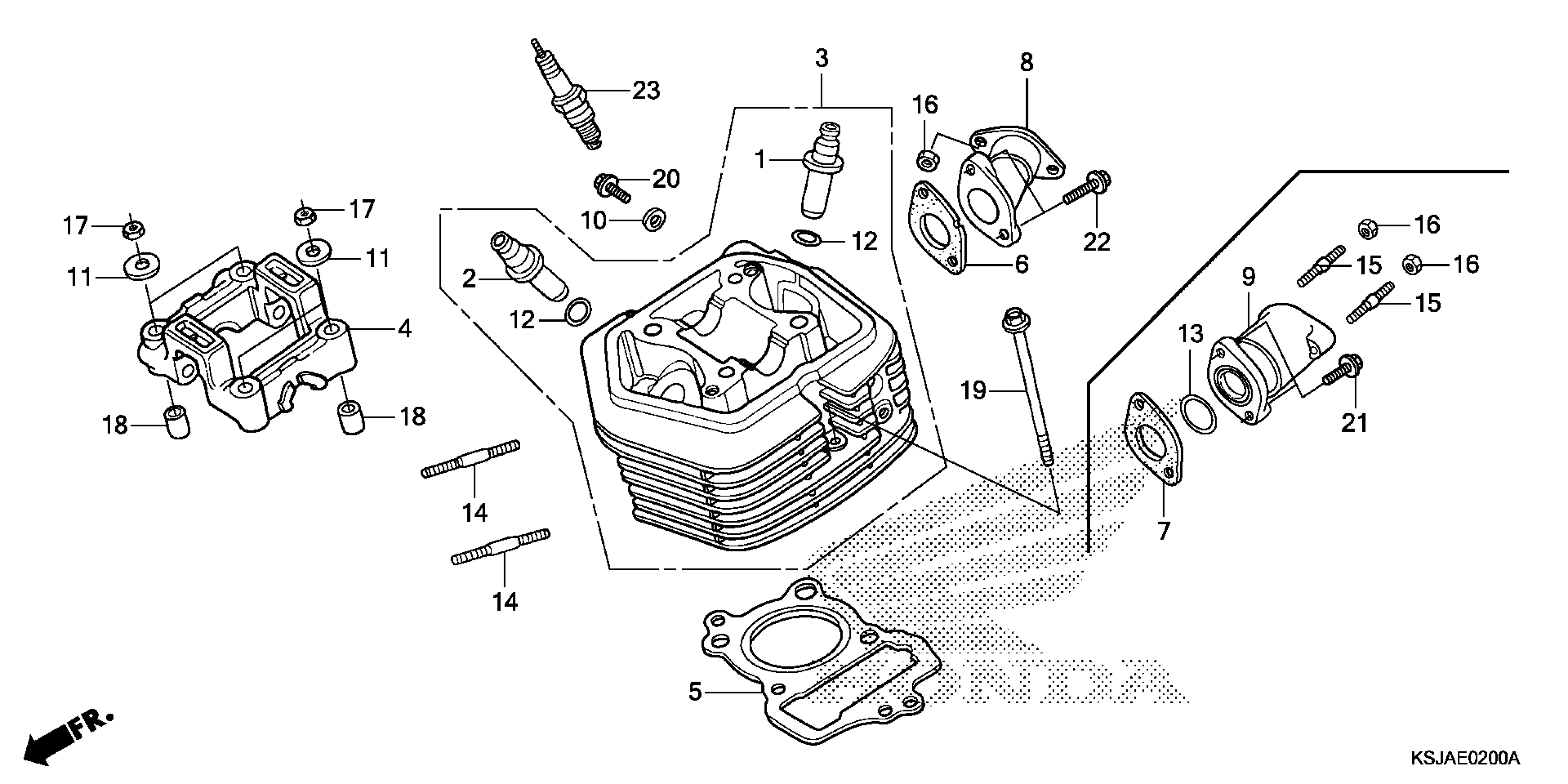

Honda CRF80FA (11) MOTORCYCLE, JPN, VIN# JH2HE010-BK900001 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-149-300.

12021-149-405

$11.86

1

GUIDE, VALVE

12021-149-405

$11.86

2

GUIDE, VALVE This part replaces 12023-116-300.

12023-465-405

$18.90

2

GUIDE, VALVE

12023-465-405

$18.90

3

CYLINDER HEAD

12200-GN1-A40

$232.24

4

HOLDER, CAMSHAFT

12210-149-020

$114.85

5

GASKET, CYLINDER HEAD

12251-GN1-731

$22.41

6

GASKET, IN. PIPE This part replaces 16229-GN1-A42.

16229-GN1-A43

$5.90

8

PIPE, INLET

17110-GN1-000

$59.02

10

WASHER A (6MM)

90478-700-000

$1.49

11

WASHER (8MM)

90483-028-000

$1.51

12

O-RING (10X1.6)

91301-200-000

$3.01

14

BOLT, STUD (6X20)

92900-06020-0B

$1.72

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (8MM)

94002-08200-0S

$1.49

18

PIN, DOWEL (10X16)

94301-10160

$2.28

19

BOLT, FLANGE (6X110)

95701-06110-00

$3.09

20

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

22

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

23

SPARK PLUG (CR6HSA) (NGK) | (Optional).

98056-56718

$2.62

23

SPARK PLUG (U20FSR-U) (DENSO) | (Optional).

98056-56726

$2.54

23

SPARK PLUG (CR7HSA) (NGK)

98056-57718

$2.62

23

SPARK PLUG (U22FSR-U) (DENSO)

98056-57726

$2.54

23

SPARK PLUG (CR8HSA) (NGK) | (Optional).

98056-58718

$2.62

23

SPARK PLUG (U24FSR-U) (DENSO) | (Optional).

98056-58726

$2.54
