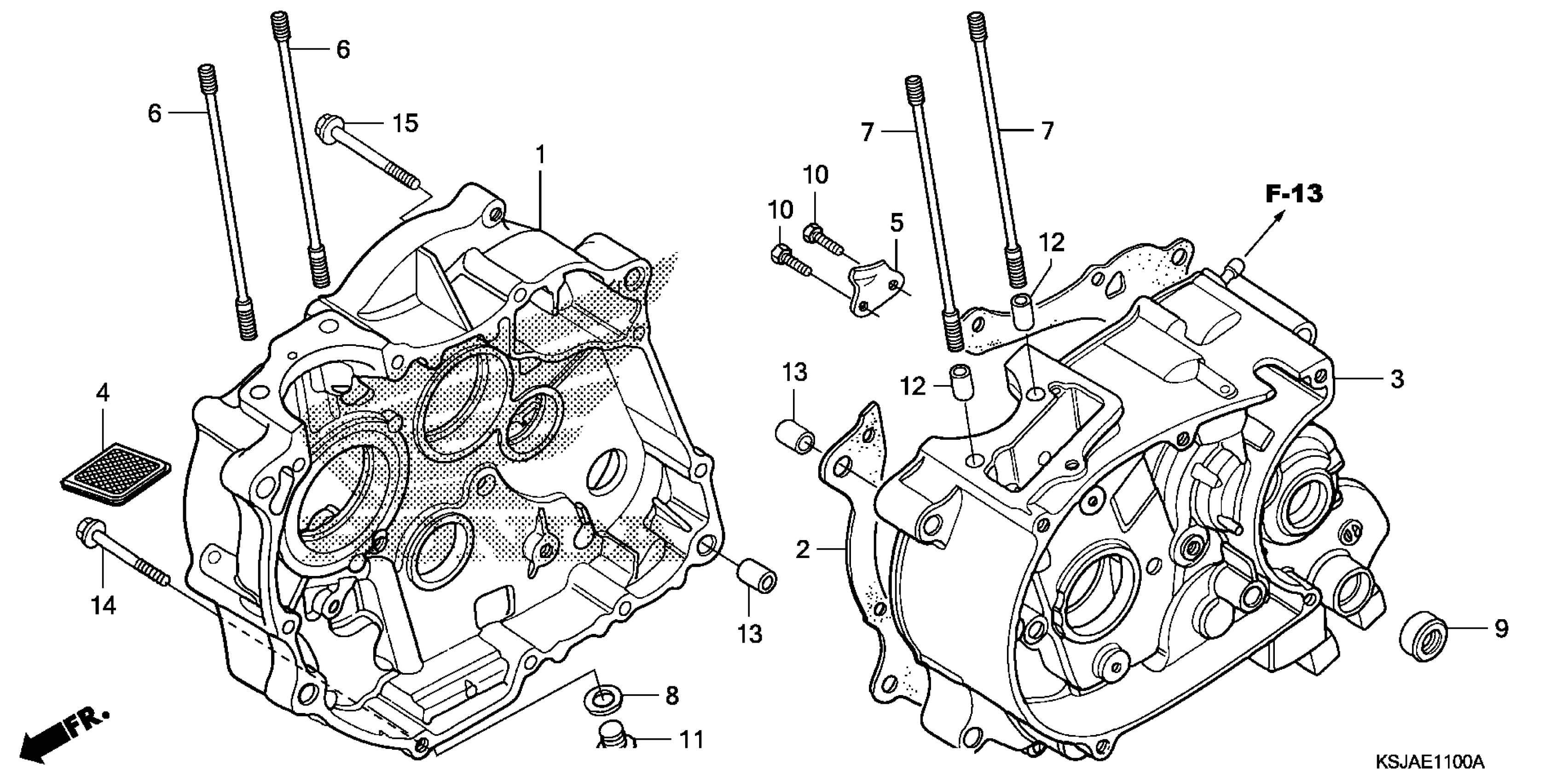

Honda CRF80FA (11) MOTORCYCLE, JPN, VIN# JH2HE010-BK900001 CRANKCASE (CRF80F) Diagram

#

Description

Price

1

CRANKCASE, R.

11100-GCR-000

$275.80

2

GASKET, CRANKCASE This part replaces 11191-GN1-731.

11191-GN1-732

$13.36

3

CRANKCASE, L.

11200-GN1-760

$353.41

4

SCREEN, OIL FILTER

15421-035-010

$3.80

5

PLATE, RATCHET GUIDE

28259-149-000

Unavailable

6

BOLT A, CYLINDER STUD

90031-176-000

$9.93

7

BOLT B, CYLINDER STUD

90032-176-000

$9.89

8

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.92

9

OIL SEAL (11.6X24X10) (ARAI)

91208-KB4-671

$4.06

10

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

11

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

12

PIN, DOWEL (10X16)

94301-10160

$2.28

13

PIN, DOWEL (12X20)

94301-12200

$2.29

14

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

15

BOLT, FLANGE (6X55)

96001-06055-00

$1.62
