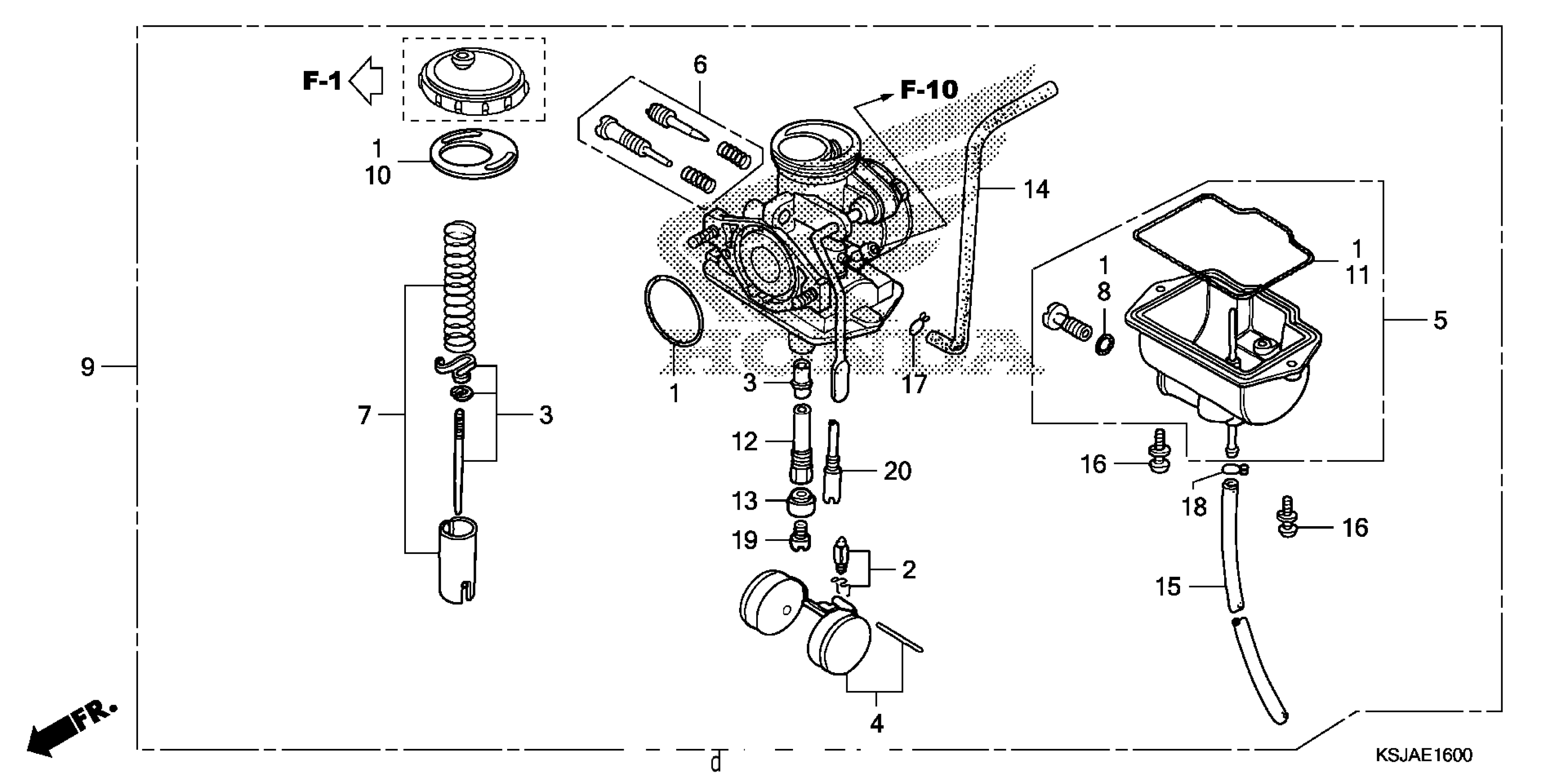

Honda CRF80FA (11) MOTORCYCLE, JPN, VIN# JH2HE010-BK900001 CARBURETOR (CRF80F) Diagram

#

Description
Price

1

GASKET SET

16010-GCR-000

$13.86

1

GASKET SET This part replaces 16010-116-700.

16010-GCR-000

$13.86

1

GASKET SET This part replaces 16010-116-701.

16010-GCR-000

$13.86

2

VALVE SET, FLOAT

16011-GN1-A81

$33.10

3

NEEDLE SET, JET

16012-GFW-A01

$26.84

4

FLOAT SET

16013-107-810

$35.88

5

CHAMBER SET, FLOAT

16015-GN1-671

Unavailable

6

SCREW SET

16016-GFW-A01

$18.92

7

VALVE SET, THROTTLE

16022-153-004

$51.10

8

O-RING This part replaces 16075-GCR-000.

16178-ZJ0-911

$2.36

8

O-RING

16178-ZJ0-911

$2.36

9

CARBURETOR ASSY. (PC20Q A)

16100-GFW-A21

$185.18

10

GASKET, TOP

16110-GN1-771

$8.08

11

GASKET, FLOAT CHAMBER

16163-GFW-A21

$9.62

12

HOLDER, NEEDLE JET

16165-GN1-682

$33.28

13

HOLDER, JET

16168-355-700

$9.15

14

TUBE, AIR VENT

16199-KN4-A61

$6.10

15

TUBE, OVERFLOW

16199-435-771

$11.39

16

SCREW-WASHER (4X12)

93892-04012-08

$1.49

16

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

17

CLIP, TUBE (B7)

95002-02070

$1.80

18

CLIP, TUBE (B6.5)

95002-02650

$1.49

19

JET, MAIN (#90) | (Optional). This part replaces 99101-116-0900.

99102-GHB-0900

$9.46

19

JET, MAIN (#90) | (Optional).

99102-GHB-0900

$9.46

19

JET, MAIN (#95)

99102-GHB-0950

$9.46

20

JET, SLOW (#35)

99103-GN1-0350

$14.25
