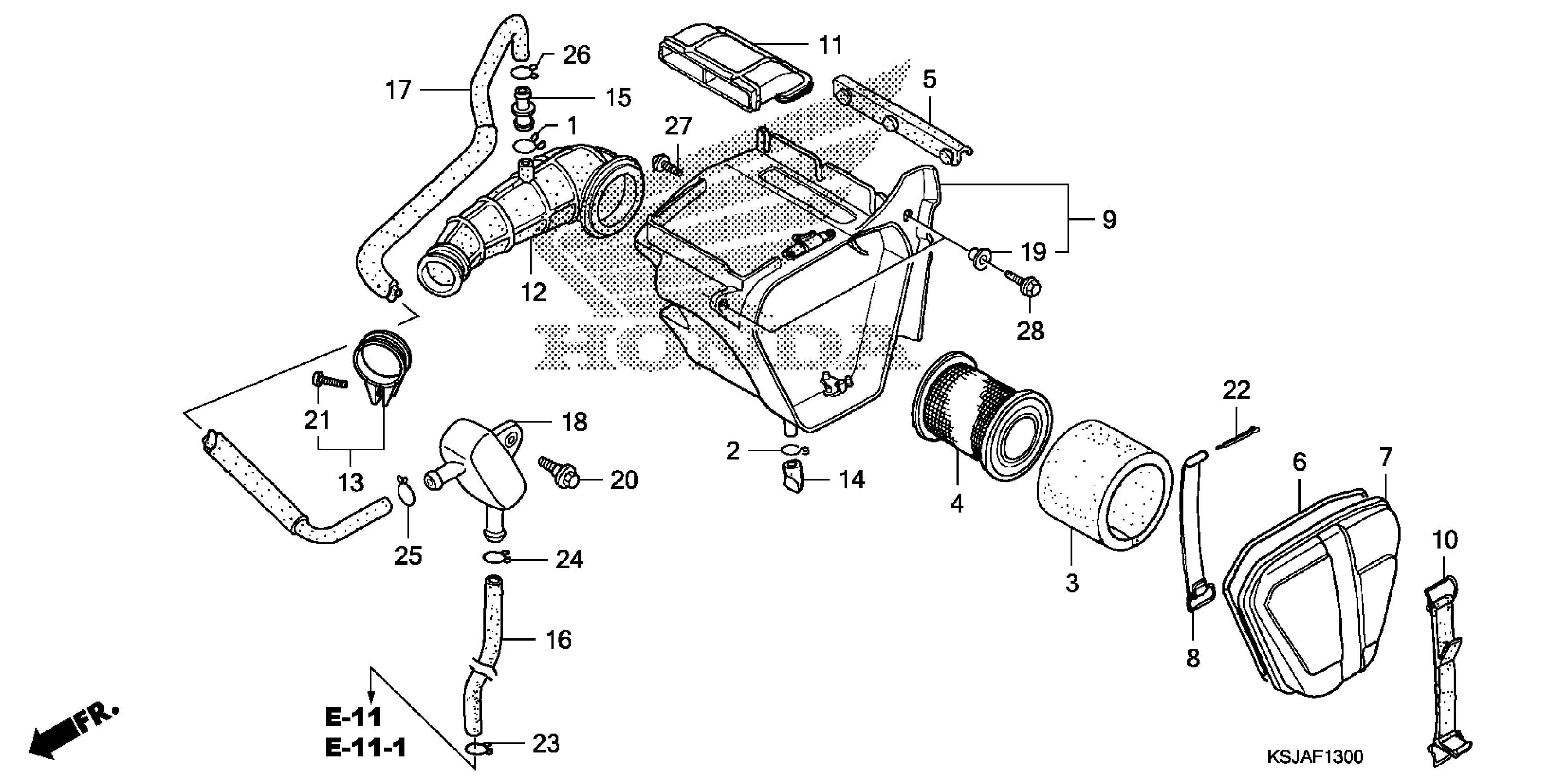

Honda CRF80FA (11) MOTORCYCLE, JPN, VIN# JH2HE010-BK900001 AIR CLEANER Diagram

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72

CLIP, BREATHER TUBE

15772-292-010

$2.92

AIR CLEANER This part replaces 17211-GN1-760.

17254-HF7-000

$9.81

AIR CLEANER

17254-HF7-000

$9.81

HOLDER, AIR CLEANER ELEMENT

17212-KJ2-003

$50.37

SPLASH GUARD, AIR CLEANER

17215-GN1-000

$11.38

SEAL, AIR CLEANER COVER This part replaces 17219-GN1-000.

17222-MN4-405

$7.31

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

COVER, AIR CLEANER

17220-GN1-760

$27.29

SPRING

17225-GN1-000

$8.92

HOUSING, AIR CLEANER

17230-KN4-A60

$61.02

BAND, AIR CLEANER COVER

17235-GN1-680

$12.02

DUCT, AIR IN.

17240-KB7-000

$36.26

TUBE, AIR CLEANER CONNECTING

17253-GN1-A40

$24.49

BAND, AIR CLEANER CONNECTING TUBE

17255-GN1-000

$7.96

TUBE, DRAIN

17358-170-000

$3.74

JOINT, BREATHER TUBE

17359-428-000

$5.46

TUBE A, BREATHER

17371-GN1-A41

$5.13

TUBE B, BREATHER

17372-GN1-A40

$10.40

TANK, STORAGE

17551-GCF-A20

$27.35

WASHER (6MM)

61107-KK6-000

$3.06

BOLT, FLANGE (6MM)

90111-ML0-730

$3.88

SCREW, PAN (4X20)

93500-04020-0G

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (C9)

95002-50000

$1.49

CLIP, TUBE (C12)

95002-80000

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14)

95701-06014-07

$1.49
