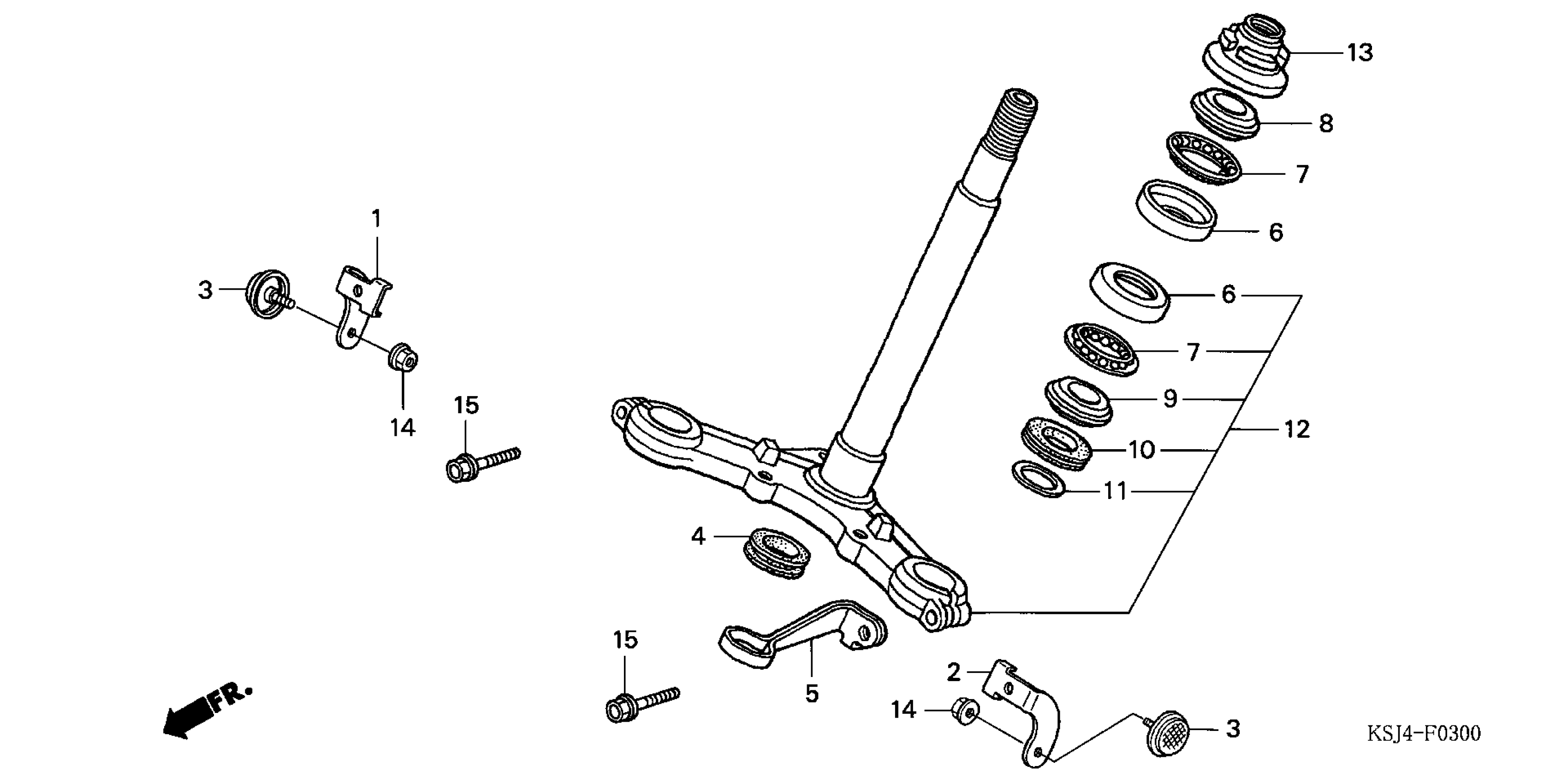

Honda CRF80FA (07) MOTORCYCLE, JPN, VIN# JH2HE010-7K600001 TO JH2HE010-6K699999 STEERING STEM Diagram

#

Description

Price

4

GUIDE, CABLE (INNER)

45466-329-000

$2.95

5

GUIDE, BRAKE CABLE (LOWER)

45468-KN4-A60

$17.52

6

RACE, STEERING TOP BALL

50301-041-010

$12.39

7

BALL ASSY., STEERING STEEL (KATO HATSUJO)

53210-GS9-003

$18.95

8

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

9

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

10

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

11

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

12

STEM SUB-ASSY., STEERING

53219-KN4-A60

Unavailable

13

THREAD, STEERING HEAD TOP

53220-167-000

$18.84

15

BOLT, FLANGE (8X32)

96400-08032-00

$2.17
