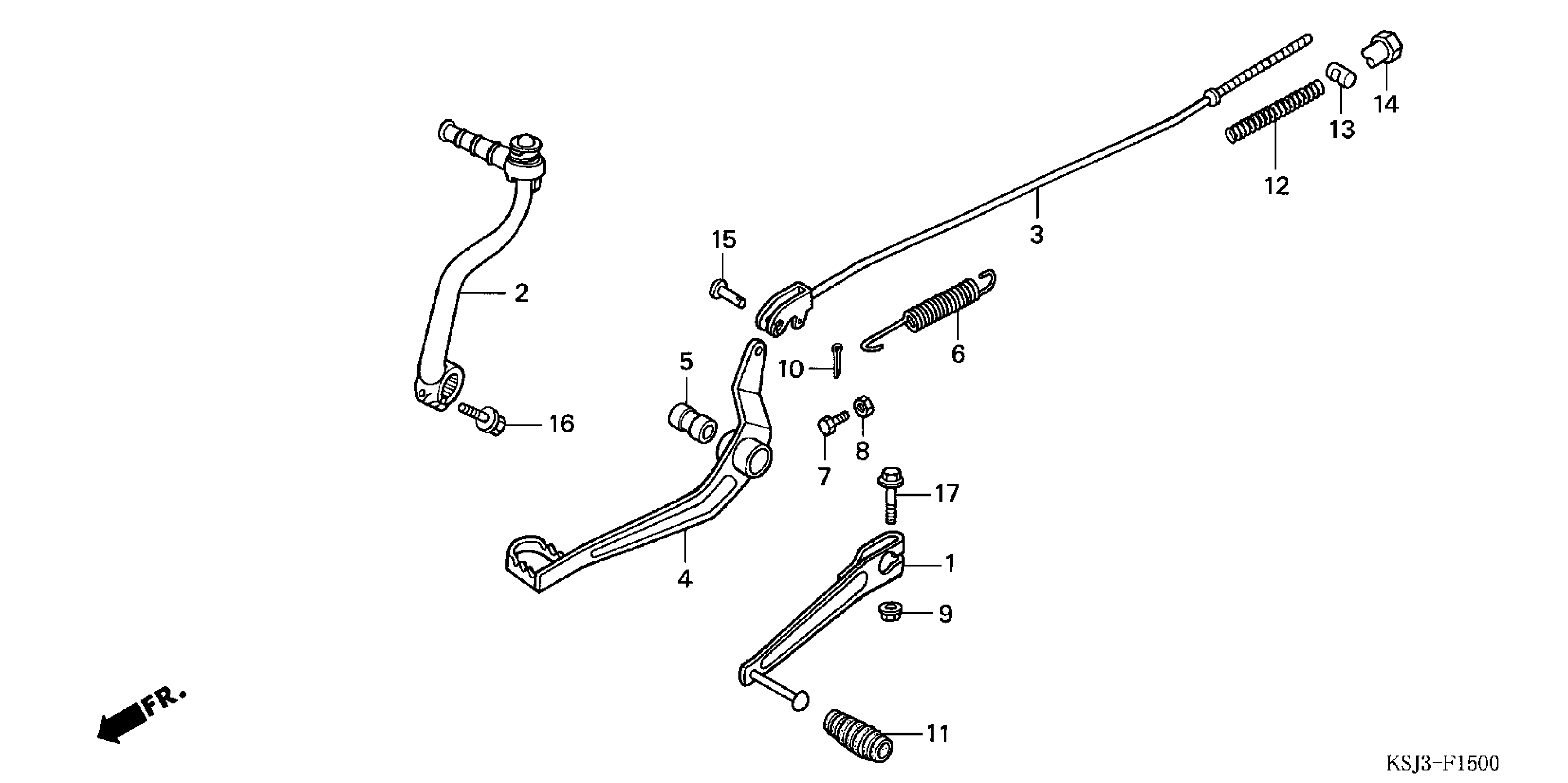

Honda CRF80FA (07) MOTORCYCLE, JPN, VIN# JH2HE010-7K600001 TO JH2HE010-6K699999 PEDAL Diagram

PEDAL, GEARSHIFT

24701-KN4-A60

$37.20

PEDAL, GEARSHIFT This part replaces 24701-KSJ-305.

24701-KN4-A60

$37.20

ARM ASSY., KICK STARTER (COO)

28300-KSJ-305

$59.64

ARM ASSY., KICK STARTER (COO) This part replaces 28300-KSJ-670.

28300-KSJ-305

$59.64

ROD, RR. BRAKE

43451-GN1-A50

$13.31

PEDAL, BRAKE This part replaces 46500-KSJ-305.

46500-KSJ-670

$47.29

PEDAL, BRAKE

46500-KSJ-670

$47.29

SLEEVE, RR. BRAKE PIVOT

46506-GN1-000

$7.34

SPRING, BRAKE PEDAL

46514-MB0-000

$8.42

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

NUT, HEX. (6MM)

94001-06200-0S

$1.19

NUT, FLANGE (6MM)

94050-06000

$0.59

PIN, COTTER (2.0X12)

94201-20120

$0.94

RUBBER, CHANGE PEDAL

95011-40000

$1.14

SPRING A, BRAKE ROD

95014-73100

$1.17

JOINT B, BRAKE ARM

95015-32001

$0.86

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.75

PIN, JOINT (C)

95015-53000

$2.85

BOLT, FLANGE (6X25)

96300-06025-00

$1.33

BOLT, FLANGE (6X28)

96300-06028-00

$1.35
