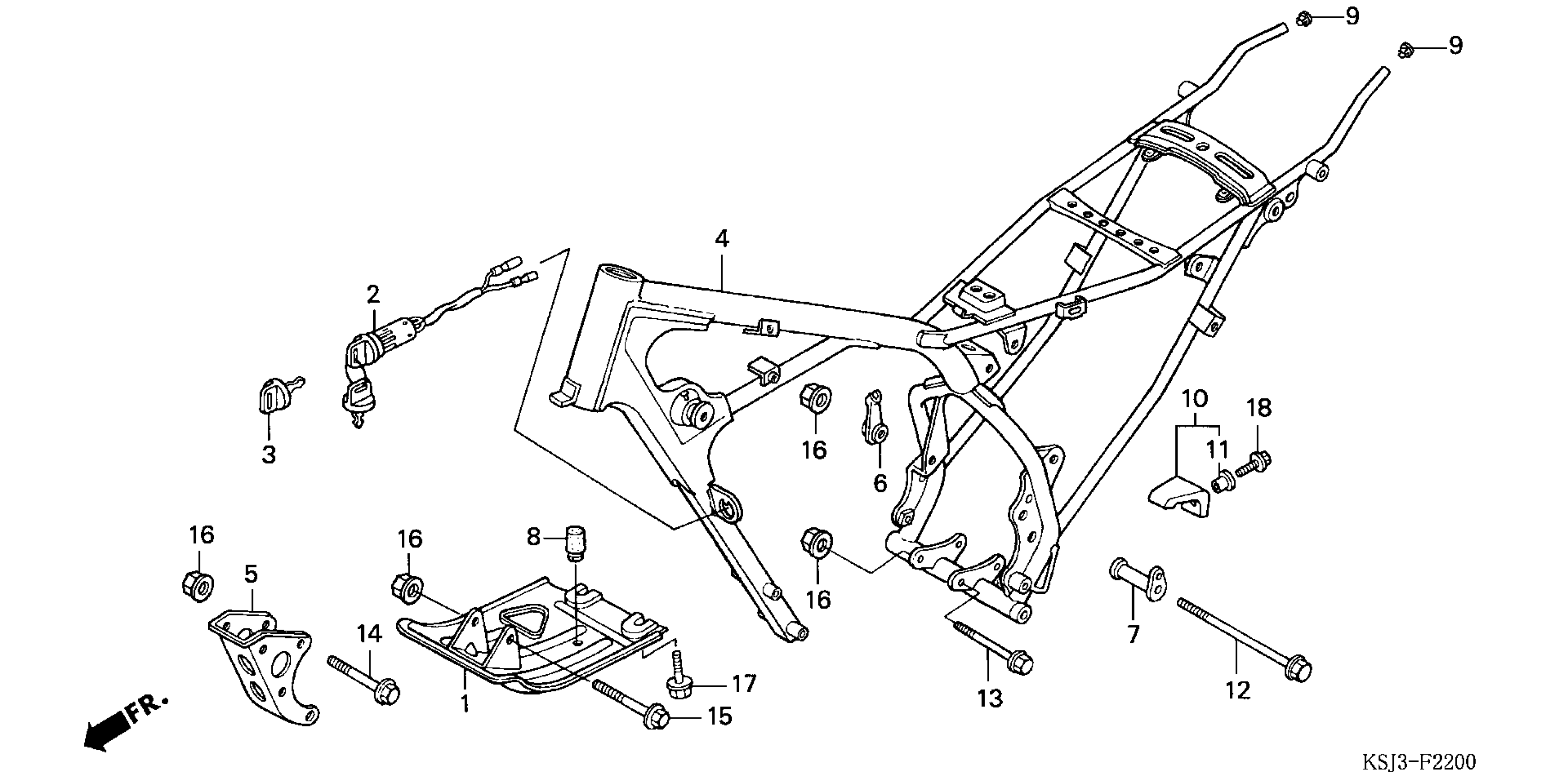

Honda CRF80FA (07) MOTORCYCLE, JPN, VIN# JH2HE010-7K600001 TO JH2HE010-6K699999 FRAME Diagram

Description

Price

PROTECTOR, CRANKCASE

11911-GN1-680

$61.88

LOCK SET

35010-KN4-A60

$44.50

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) KEY, BLANK (TYPE2) | (Optional).

35121-HF1-881

$9.59

KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$9.59

FRAME NH146M (ACCURATE SILVER METALLIC)

50100-KSJ-670ZA

$585.84

STAY, FR. ENGINE HANGER NH146M (ACCURATE SILVER METALLIC)

50127-GN1-010ZC

$20.70

COLLAR, R. RR. ENGINE HANGER

50135-GN1-000

$9.32

COLLAR, L. RR. ENGINE HANGER

50136-GN1-760

$12.16

RUBBER B, STOPPER

50363-GN1-760

$4.48

PLUG, HOLE

50372-KN4-000

$5.96

SLIDER ASSY., CHAIN (LOWER)

52185-GN1-000

$19.54

WASHER (6MM)

61107-KK6-000

$3.06

BOLT, FLANGE (8X158)

90101-GN1-760

$8.83

BOLT, FLANGE (8X102)

90108-GN1-000

$6.84

BOLT, FLANGE (8X60)

90154-MA0-000

$7.31

BOLT, FLANGE (8X65)

90156-MA0-770

$7.31

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)
