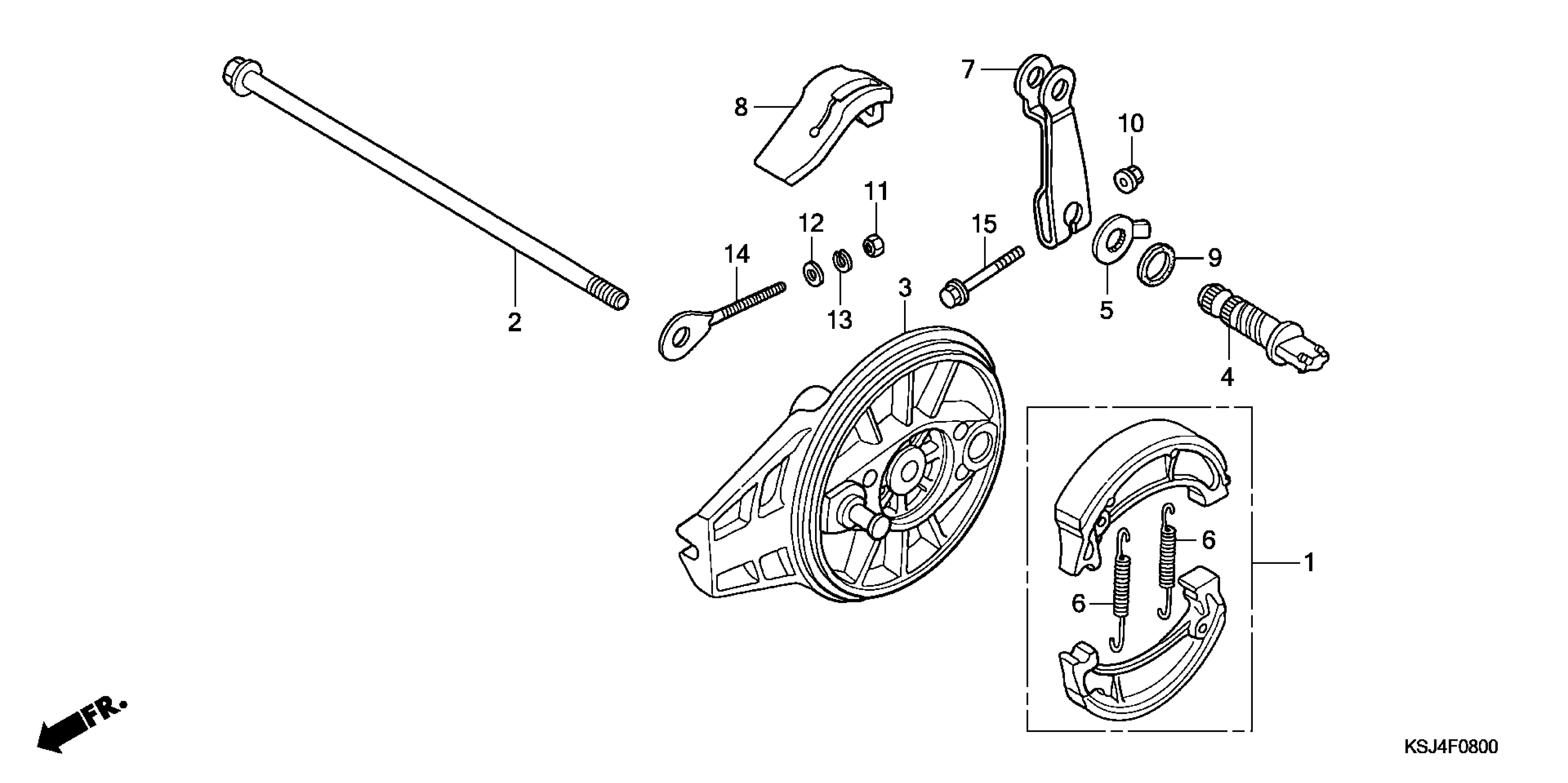

Honda CRF80FA (06) MOTORCYCLE, JPN, VIN# JH2HE010-6K500001 TO JH2HE010-6K599999 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (ASK) SHOE SET, BRAKE (JB NH FE)

06430-GN1-730

$27.33

SHOE SET, BRAKE (JB NH FE)

06450-GT8-B40

$29.38

AXLE, RR. WHEEL

42301-GCV-J00

$24.75

AXLE, RR. WHEEL This part replaces 42301-GN1-000.

42301-GCV-J00

$24.75

PANEL, RR. BRAKE

43100-KN4-A60

$163.70

CAM, RR. BRAKE

43141-KJ2-000

Unavailable

CAM, RR. BRAKE

43141-KJ2-003

$12.06

INDICATOR, RR. BRAKE

43145-400-000

$7.64

SPRING, BRAKE SHOE

43151-GC4-000

$4.45

ARM, RR. BRAKE

43410-KN4-A60

$7.89

COVER, RR. BRAKE ARM

43411-KSJ-000

$6.17

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.80

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.79

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

NUT, HEX. (6MM)

94001-06200-0S

$1.19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

WASHER, SPRING (6MM)

94111-06000

$0.86

ADJUSTER S, R. CHAIN (LEFT SIDE)

95014-10010

$4.03

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.28
