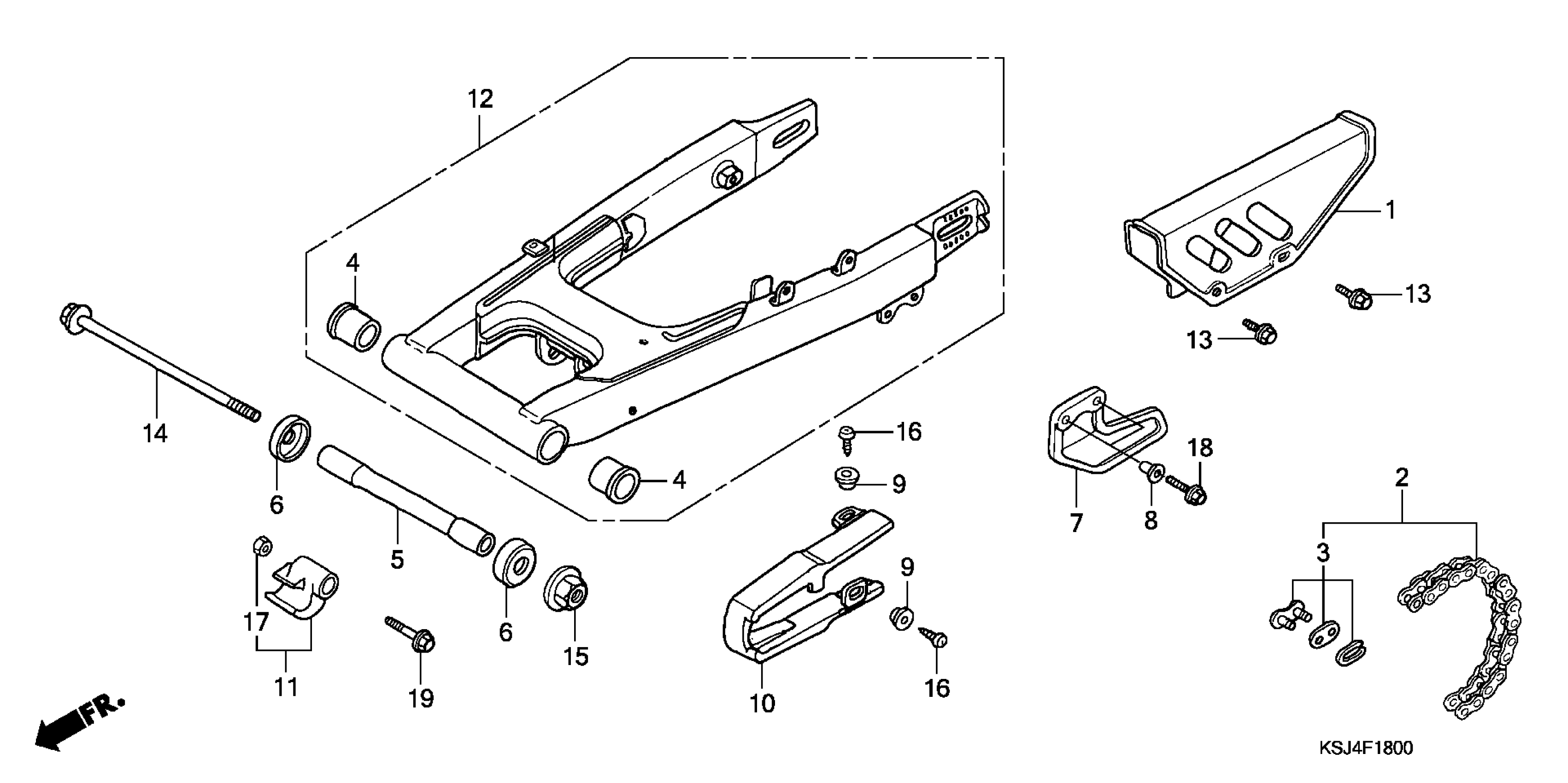

Honda CRF80FA (05) MOTORCYCLE, JPN, VIN# JH2HE010-5K400001 TO JH2HE010-5K499999 SWINGARM Diagram

Description

Price

CASE, DRIVE CHAIN

40510-GN1-760

$29.64

CHAIN, DRIVE (RK420MSZ1-110RJ) (RK EXCEL)

40530-GN1-A82

$45.12

MASTER LINK (RK EXCEL)

40531-GM7-641

$3.37

BUSH, PIVOT THRUST

52109-GJ1-003

$16.93

COLLAR, SWINGARM

52141-GN1-000

$42.78

CAP, SWINGARM DUST SEAL (NOK)

52144-360-005

$10.83

GUARD, CHAIN

52156-GN1-000

$23.93

COLLAR, CHAIN GUARD

52157-GC5-000

$4.28

WASHER, CHAIN SLIDER

52171-KR6-000

$2.38

SLIDER, CHAIN

52175-GN1-000

$25.10

SLIDER, CHAIN (UPPER)

52180-GN1-000

$13.92

SWINGARM SUB-ASSY., RR. NH146M (ACCURATE SILVER METALLIC)

52200-GN1-A80ZA

$274.94

BOLT, FLANGE (6MM)

90111-187-000

$7.39

BOLT, SWINGARM PIVOT

90121-GN1-000

$28.60

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.68

SCREW, TAPPING (5X8)

93901-25080

$0.90

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

NUT, HEX. (6MM)
