Description

Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.48

2

CLIP, BREATHER TUBE CLIP, TUBE

15772-292-010

$2.80

3

AIR CLEANER This part replaces 17211-GN1-760.

17254-HF7-000

$8.55

3

ELEMENT, AIR CLEANER

17254-HF7-000

$8.55

4

HOLDER, AIR CLEANER ELEMENT

17212-KJ2-003

$45.23

5

SPLASH GUARD, AIR CLEANER

17215-GN1-000

$10.36

6

SEAL, AIR CLEANER COVER This part replaces 17219-GN1-000.

17222-MN4-405

$6.80

6

SEAL, AIR CLEANER COVER

17222-MN4-405

$6.80

7

COVER, AIR CLEANER HOUSING

17220-GN1-760

$23.80

8

SPRING

17225-GN1-000

$8.02

9

HOUSING, AIR CLEANER

17230-KN4-A60

$55.57

10

BAND, AIR CLEANER COVER

17235-GN1-680

$10.78

11

DUCT, AIR IN.

17240-KB7-000

$33.03

12

TUBE, AIR CLEANER CONNECTING

17253-GN1-A40

$21.97

13

BAND, AIR CLEANER CONNECTING TUBE

17255-GN1-000

$7.41

14

TUBE, DRAIN

17358-170-000

$3.49

15

JOINT, BREATHER TUBE

17359-428-000

$5.07

16

TUBE A, BREATHER

17371-GN1-A41

$4.77

17

TUBE B, BREATHER

17372-GN1-A40

$9.34

18

TANK, STORAGE

17551-GCF-A20

$24.39

19

WASHER (6MM)

61107-KK6-000

$2.85

20

BOLT, FLANGE (6MM)

90111-ML0-730

$3.51

21

SCREW, PAN (4X20) SCREW, PAN (4X18)

93500-04020-0G

$0.71

22

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$0.94

23

CLIP, TUBE (B10)

95002-02100

$1.72

24

CLIP, TUBE (B12)

95002-02120

Unavailable

25

CLIP, TUBE (C9)

95002-50000

$1.14

26

CLIP, TUBE (C12)

95002-80000

$0.42

27

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

28

BOLT, FLANGE (6X14)

95701-06014-07

$1.32

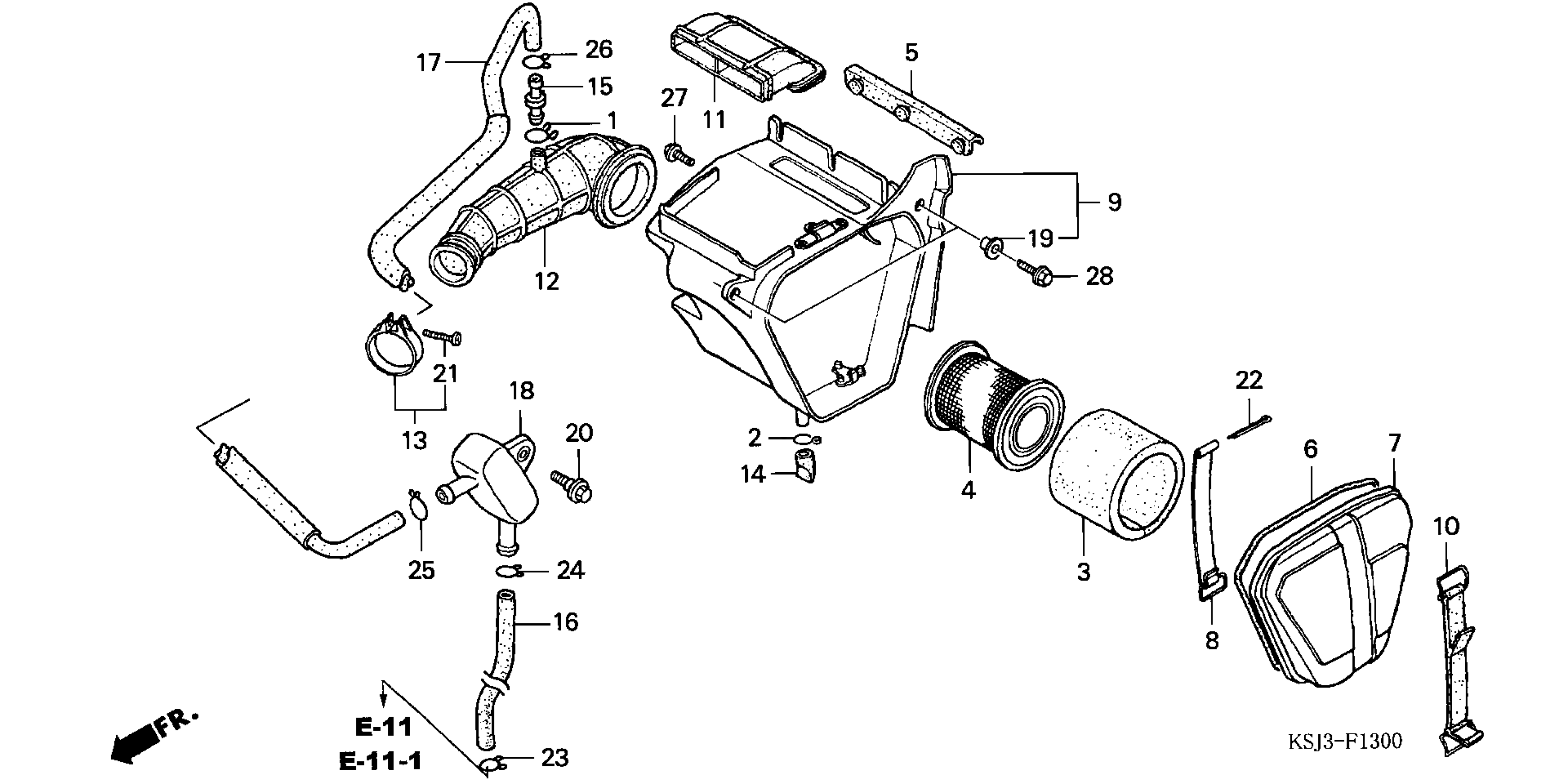

Honda CRF80FA (05) MOTORCYCLE, JPN, VIN# JH2HE010-5K400001 TO JH2HE010-5K499999 AIR CLEANER Diagram
