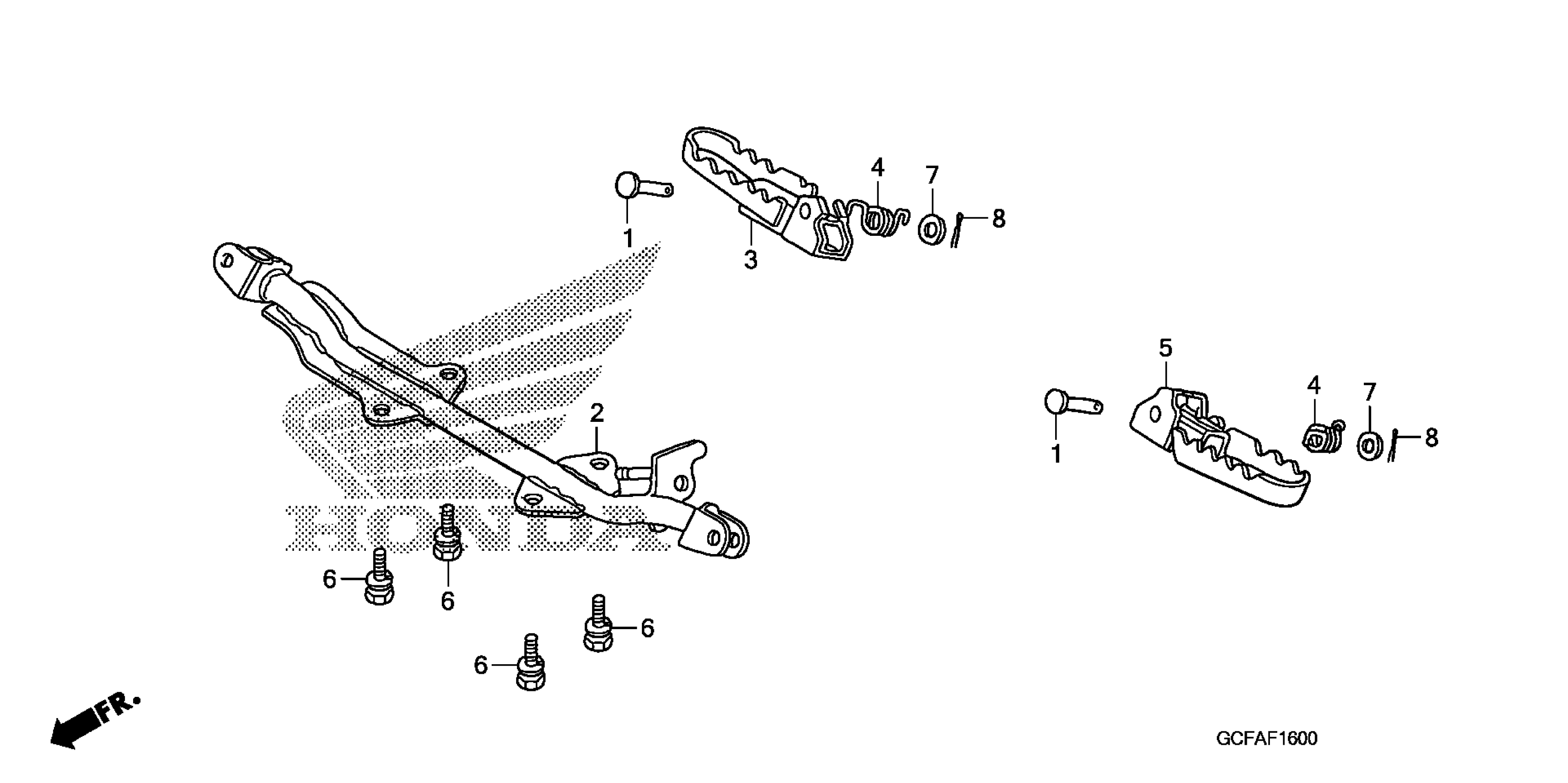

Honda CRF70FAC (12) CRF70F, JPN, VIN# JH2DE021-CK000001 STEP Diagram

#

Description

Price

1

PIN, STEP BAR JOINT

50603-033-010

$2.98

2

BAR, STEP

50610-GEL-A00

$45.36

3

ARM, R. STEP (COO) This part replaces 50616-GEL-A00.

50616-GEL-305

$25.01

3

ARM, R. STEP (COO)

50616-GEL-305

$25.01

4

SPRING, STEP RETURN This part replaces 50617-GW8-670.

50617-181-770

$6.21

4

SPRING, STEP RETURN

50617-181-770

$6.21

5

ARM, L. STEP (COO) This part replaces 50642-GEL-A00.

50642-GEL-305

$25.01

6

BOLT-WASHER (8X20)

93402-08020-00

$1.75

7

WASHER, PLAIN (8MM)

94102-08000

$0.86

8

PIN, SPLIT (2.0X15)

94201-20150

$0.94
