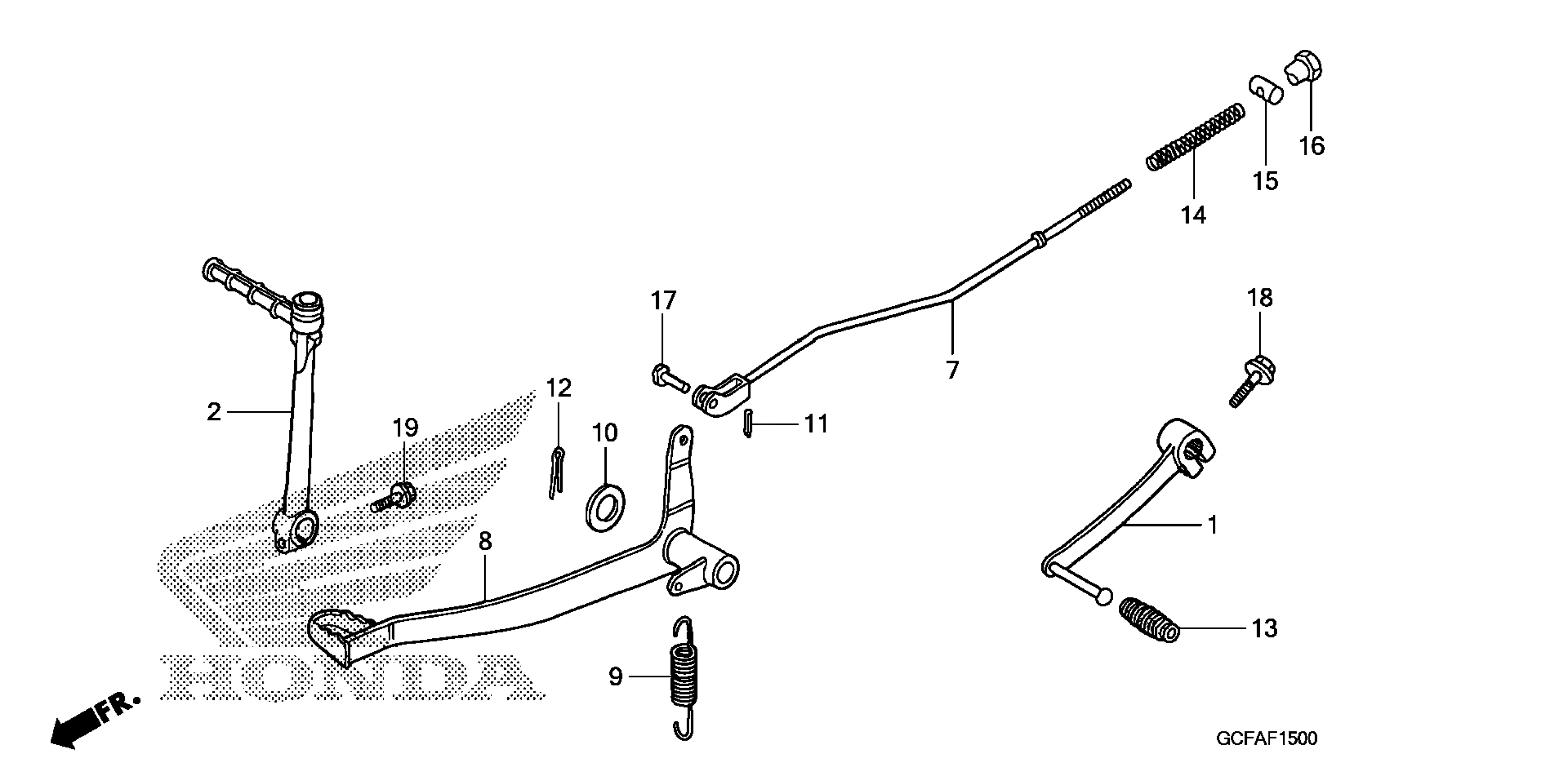

Honda CRF70FAC (12) CRF70F, JPN, VIN# JH2DE021-CK000001 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT This part replaces 24701-GEL-305.

24701-GEL-770

$27.44

1

PEDAL, GEARSHIFT

24701-GEL-770

$27.44

2

ARM ASSY., KICK STARTER (COO) This part replaces 28300-GEL-A00.

28300-GEL-305

$77.25

2

ARM ASSY., KICK STARTER (COO)

28300-GEL-305

$77.25

7

ROD, RR. BRAKE

43451-GCF-J10

$13.13

8

PEDAL, BRAKE

46500-GEL-A00

$50.94

8

PEDAL, BRAKE This part replaces 46500-GEL-305.

46500-GEL-A00

$50.94

9

SPRING, BRAKE PEDAL

46514-GCF-670

$4.63

10

WASHER, PLAIN (14MM)

94102-14000

$0.60

11

PIN, SPLIT (2.0X12)

94201-20120

$1.04

12

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.01

12

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.01

12

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.01

12

PIN, SPLIT (3.0X45)

94201-30450

$1.01

13

RUBBER, CHANGE PEDAL

95011-40000

$1.16

14

SPRING A, BRAKE ROD

95014-73100

$1.19

15

JOINT B, BRAKE ARM

95015-32001

$0.87

16

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.78

17

PIN C, JOINT

95015-53000

$2.92

18

BOLT, FLANGE (6X20)

95701-06020-00

$1.78

19

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
