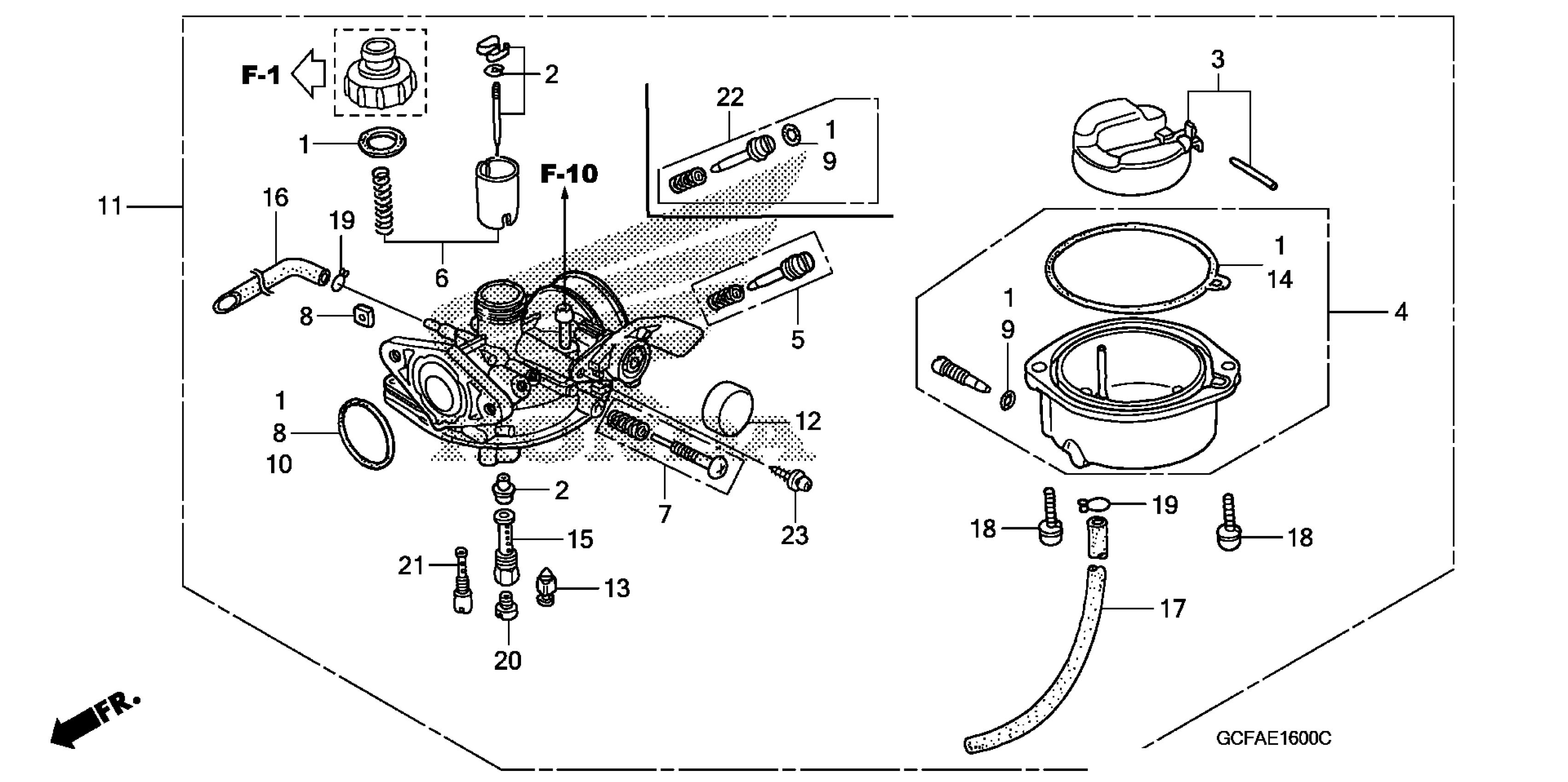

Honda CRF70FAC (12) CRF70F, JPN, VIN# JH2DE021-CK000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-GCF-A31

$20.06

2

NEEDLE SET, JET

16012-GCF-A31

$25.56

3

FLOAT SET

16013-883-005

$29.08

4

CHAMBER SET, FLOAT

16015-GCF-670

$78.54

6

VALVE SET, THROTTLE

16022-GCF-671

$31.02

7

SCREW SET B

16028-GC8-004

$16.35

7

SCREW SET B This part replaces 16028-187-003.

16028-GC8-004

$16.35

8

NUT SET, SQUARE

16041-GBJ-680

$5.11

9

O-RING (1.3X4.3)

16076-ND5-004

$2.56

10

O-RING (1.9X20.6) This part replaces 16079-NC5-004.

16075-GHB-870

$4.55

11

CARBURETOR ASSY. (PB12K A)

16100-GCF-A51

$185.18

12

CAP, CHOKE DUST

16148-141-881

$4.75

13

VALVE, FLOAT

16155-883-005

$20.11

14

GASKET, FLOAT CHAMBER

16163-GBG-960

$11.11

15

HOLDER, NEEDLE JET

16165-GCF-670

$25.92

16

TUBE, AIR VENT

16199-GCF-670

$5.64

17

TUBE, FUEL This part replaces 16199-159-701.

16199-KG4-405

$9.49

18

SCREW-WASHER (4X14)

93892-04014-08

$1.49

18

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.49

19

CLIP, TUBE (B6.5)

95002-02659

$1.49

20

JET, MAIN (#60) | (Optional).

99102-GHB-0600

$9.46

20

JET,MAIN,#62 This part replaces 99102-GHB-0620.

99101-GFG-0620

$8.03

21

JET,#38 This part replaces 99103-GB0-0380.

99103-GBZ-0380

$14.43

22

SCREW SET A

16016-GCF-A31

Unavailable

23

SCREW-WASHER (5X10)

93892-05010-18

$1.49
