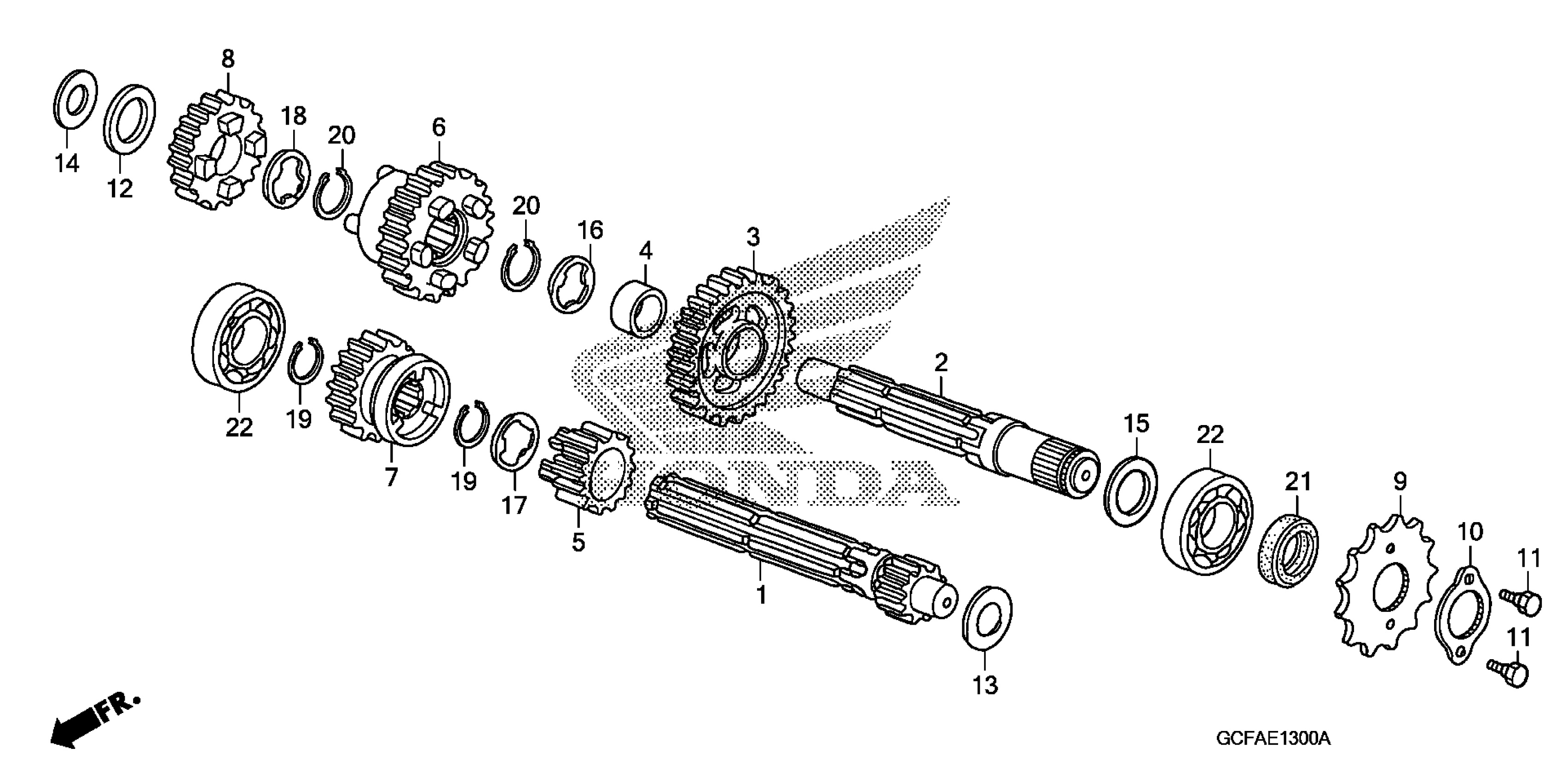

Honda CRF70FA (11) MOTORCYCLE, JPN, VIN# JH2DE020-BK300001 TO JH2DE020-BK399999 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (11T)

23211-GCF-A20

$58.86

COUNTERSHAFT

23221-GCF-A20

$65.01

GEAR, COUNTERSHAFT LOW (36T)

23421-GCF-A20

$42.95

BUSH (20X10)

23422-GB6-910

$15.51

GEAR, MAINSHAFT SECOND (15T)

23431-GCF-A20

$34.36

GEAR, COUNTERSHAFT SECOND (25T)

23441-GCF-A20

$55.71

GEAR, MAINSHAFT THIRD (21T)

23471-GCF-A20

$46.20

GEAR, COUNTERSHAFT THIRD (25T)

23481-GCF-A20

$41.39

SPROCKET, DRIVE (15T)

23800-GCF-A20

$17.90

PLATE, DRIVE SPROCKET FIXING

23802-GC4-601

$4.85

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.29

WASHER B, THRUST (30X1.7)

90409-ML4-610

$4.17

WASHER, THRUST (14MM)

90451-121-000

$1.70

WASHER, THRUST (13.5MM)

90451-141-000

$11.20

WASHER, THRUST (17MM)

90452-GB4-770

$1.87

WASHER, SPLINE (20X1.2)

90461-GB4-770

$3.09

WASHER, SPLINE (17MM)

90461-035-000

$2.35

WASHER, SPLINE (20MM)

90461-459-010

$5.04

CIRCLIP (OUTER) (17MM)

90601-001-000

Unavailable

CIRCLIP (20MM)

90601-459-000

$2.80

OIL SEAL (17X29X5) (NOK)

91203-GBG-900

$6.51

OIL SEAL (17X29X5) (ARAI) This part replaces 91203-GB5-761.

91203-GBG-900

$6.51

BEARING, RADIAL BALL (6203)

96100-62030-00

$7.82
