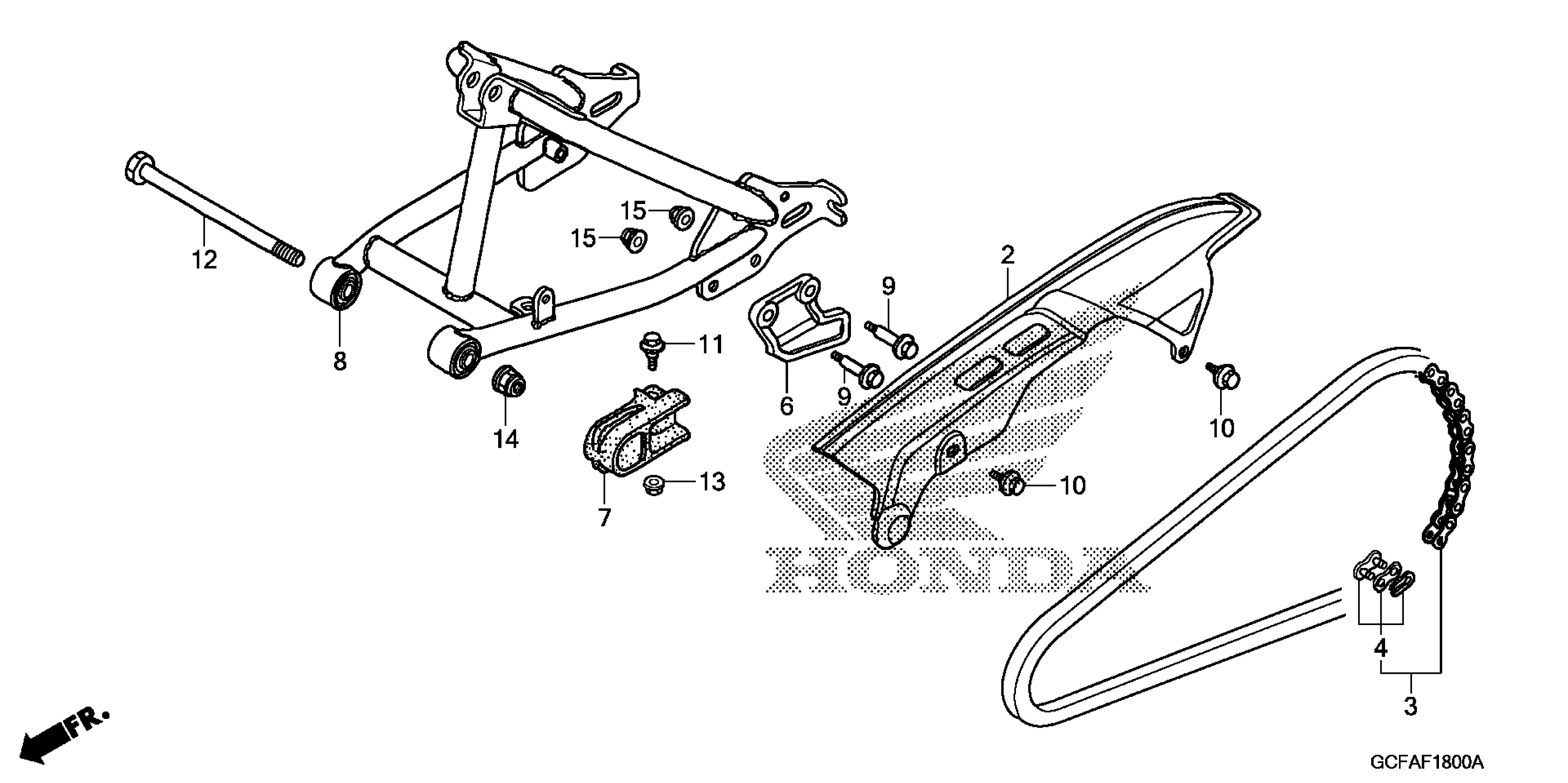

Honda CRF70FA (11) MOTORCYCLE, JPN, VIN# JH2DE020-BK300001 TO JH2DE020-BK399999 SWINGARM + CHAIN CASE Diagram

CASE, DRIVE CHAIN

40510-GCF-670

$29.95

CHAIN, DRIVE (DID420MBK1-86RB) (DAIDO)

40530-GCF-J11

$33.57

MASTER LINK (DAIDO)

40531-GC4-602

$2.38

GUARD, CHAIN

52156-GAN-670

$42.30

SLIDER, CHAIN

52170-GCF-670

$29.04

SWINGARM SUB-ASSY., RR. *NH146M* (ACCURATE SILVER METALLIC) | Extreme red R292R;

52200-GCF-920ZA

$280.43

BOLT, FLANGE (6X24)

90103-GF6-000

$4.17

BOLT, SPECIAL (6MM)

90109-434-000

$2.77

BOLT, FLANGE (6X20)

90113-GAZ-000

$5.82

BOLT, SWINGARM PIVOT

90121-GCF-670

$24.82

NUT, U (6MM)

90301-473-003

$4.07

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

NUT, FLANGE (6MM)

94050-06080

$1.49
