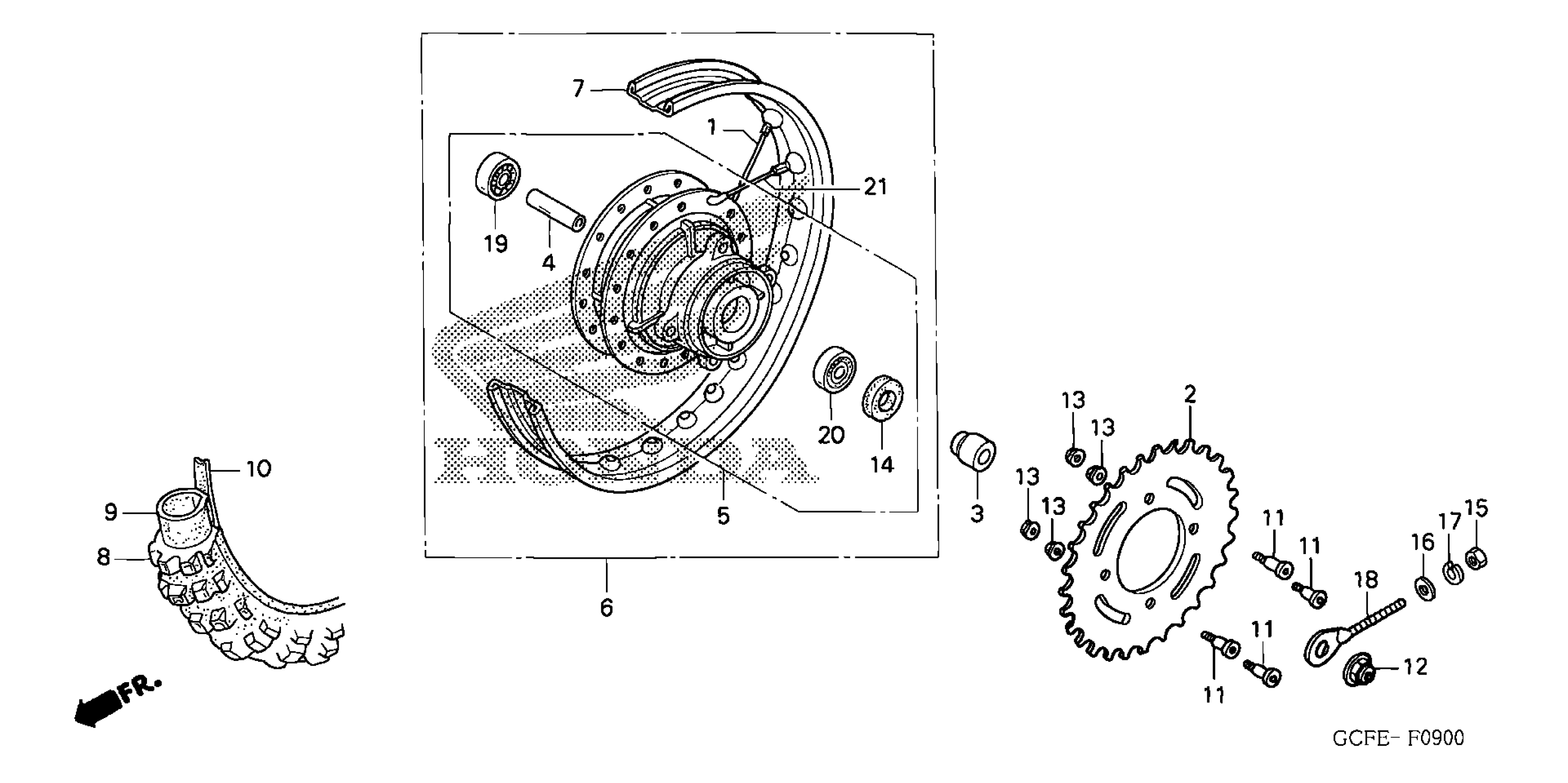

Honda CRF70FA (11) MOTORCYCLE, JPN, VIN# JH2DE020-BK300001 TO JH2DE020-BK399999 REAR WHEEL Diagram

#

Description
Price

1

SPOKE SET A, RR. (INSIDE)

06420-GCF-670

$3.48

2

SPROCKET, FINAL DRIVEN (36T)

41201-GCF-670

$41.34

3

COLLAR, RR. WHEEL SIDE

42311-GCF-J10

$8.18

4

COLLAR, RR. AXLE DISTANCE

42620-GC4-000

$13.25

5

HUB SUB-ASSY., RR.

42635-GCF-680

$212.71

6

WHEEL SUB-ASSY., RR.

42650-GCF-680

$331.64

7

RIM, RR. WHEEL (RK EXCEL)

42701-GCF-671

$47.46

8

TIRE, RR. (3.00-12 4PR) (CHENG SHIN)

42711-GCF-671

$46.78

9

TUBE, TIRE (2.75/3.00-12) (TR4) (CHENG SHIN)

42712-GCF-671

$26.05

10

FLAP, TIRE (3.00-12 20MM) (CHENG SHIN)

42713-GCF-671

$5.51

11

BOLT, SPROCKET FIXING

90128-GCF-670

$4.58

12

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

Unavailable

13

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12

13

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.12

14

DUST SEAL (21X37X5.5) (ARAI)

90755-GC4-003

$4.70

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

15

NUT, HEX. (6MM)

94001-06200-0S

$1.19

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM)

94101-06800

Unavailable

17

WASHER, SPRING (6MM)

94111-06000

$0.86

18

ADJUSTER S, R. CHAIN

95014-10010

$4.03

19

BEARING, RADIAL BALL (6201U)

96140-62010-10

$9.22

20

BEARING, RADIAL BALL (6301U)

96140-63010-10

$13.32

21

SPOKE SET (A11X100) (OUTSIDE)

97924-31040-K0

$2.12
