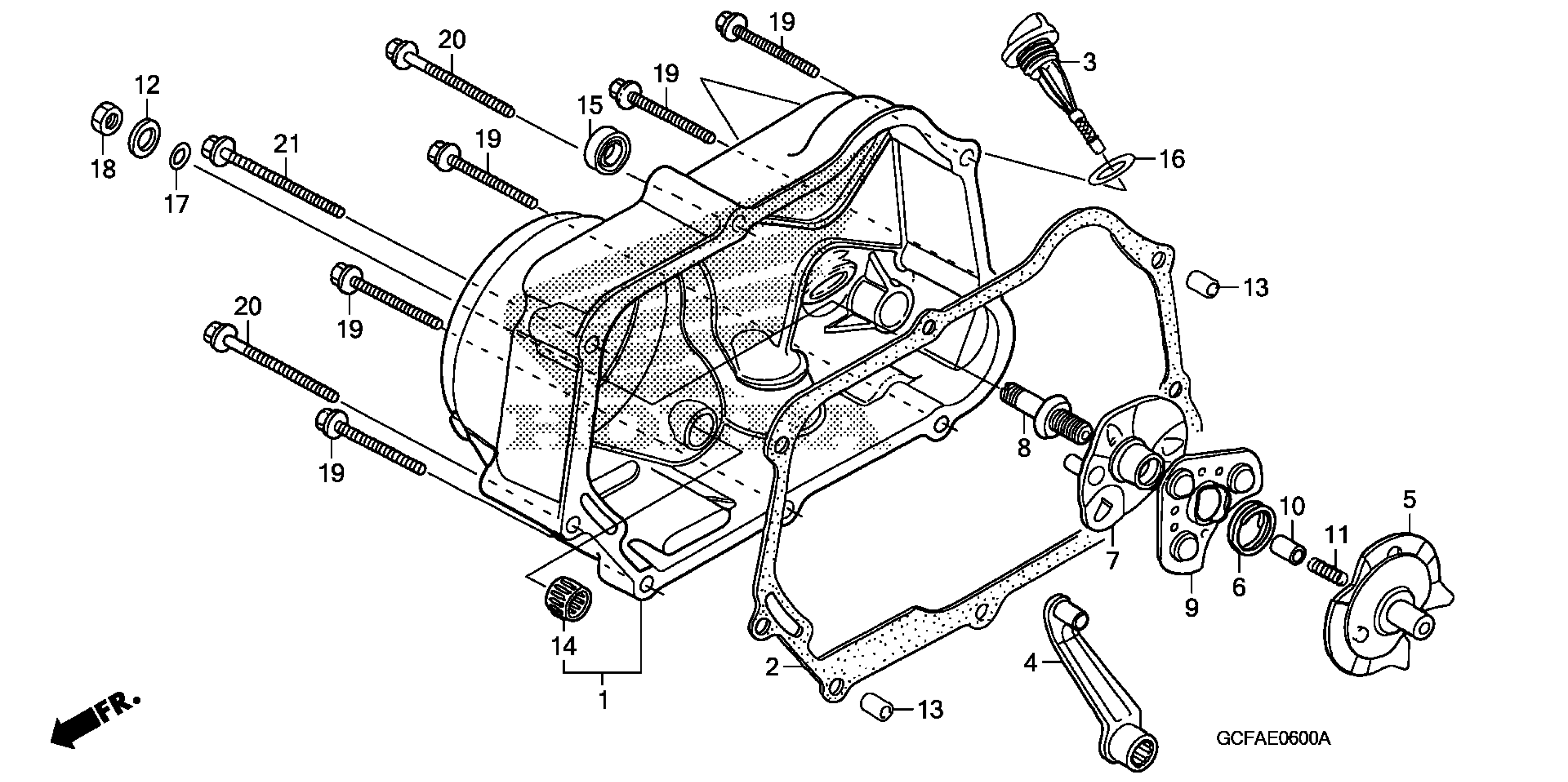

Honda CRF70FA (09) MOTORCYCLE, JPN, VIN# JH2DE020-9K200001 TO JH2DE020-9K299999 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-GCF-670

$131.74

2

GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-680.

11394-GW8-682

$12.45

2

GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-681.

11394-GW8-682

$12.45

3

DIPSTICK, OIL

15650-098-730

$7.43

4

LEVER, CLUTCH

22811-040-020

$29.88

5

PLATE, CLUTCH CAM

22820-GCF-670

$16.06

6

SPRING, CAM PLATE SIDE

22825-046-000

$2.01

7

PLATE, CLUTCH LIFTER

22830-041-000

$10.77

8

BOLT, CLUTCH ADJUSTING

22846-GB4-770

$5.78

9

RETAINER, CLUTCH BALL

22860-046-000

Unavailable

10

THROUGH, OIL This part replaces 25551-918-007.

25551-GEL-A80

$5.58

11

SPRING, OIL THROUGH

25555-065-000

$1.57

12

WASHER (8MM)

90485-040-000

$1.63

13

PIN, DOWEL (8X12)

90702-KFM-900

$0.62

14

BEARING, NEEDLE (1010) (NTN)

91021-148-004

$21.36

15

OIL SEAL (13.8X24X5)

91202-KFL-841

$4.81

15

OIL SEAL (14X24X5) This part replaces 91202-302-010.

91202-KFL-841

$4.81

15

OIL SEAL (14X24X5) This part replaces 91205-HB2-771.

91202-KFL-841

$4.81

15

OIL SEAL (14X24X5) This part replaces 91205-HB2-772.

91202-KFL-841

$4.81

16

O-RING (18X3)

91307-035-000

$2.75

17

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.75

17

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.75

18

NUT, HEX. (8MM)

94030-08000

Unavailable

19

BOLT, FLANGE (6X40)

96001-06040-00

$2.59

20

BOLT, FLANGE (6X65)

96001-06065-00

$2.80

21

BOLT, FLANGE (6X80)

96001-06080-00

$2.04
