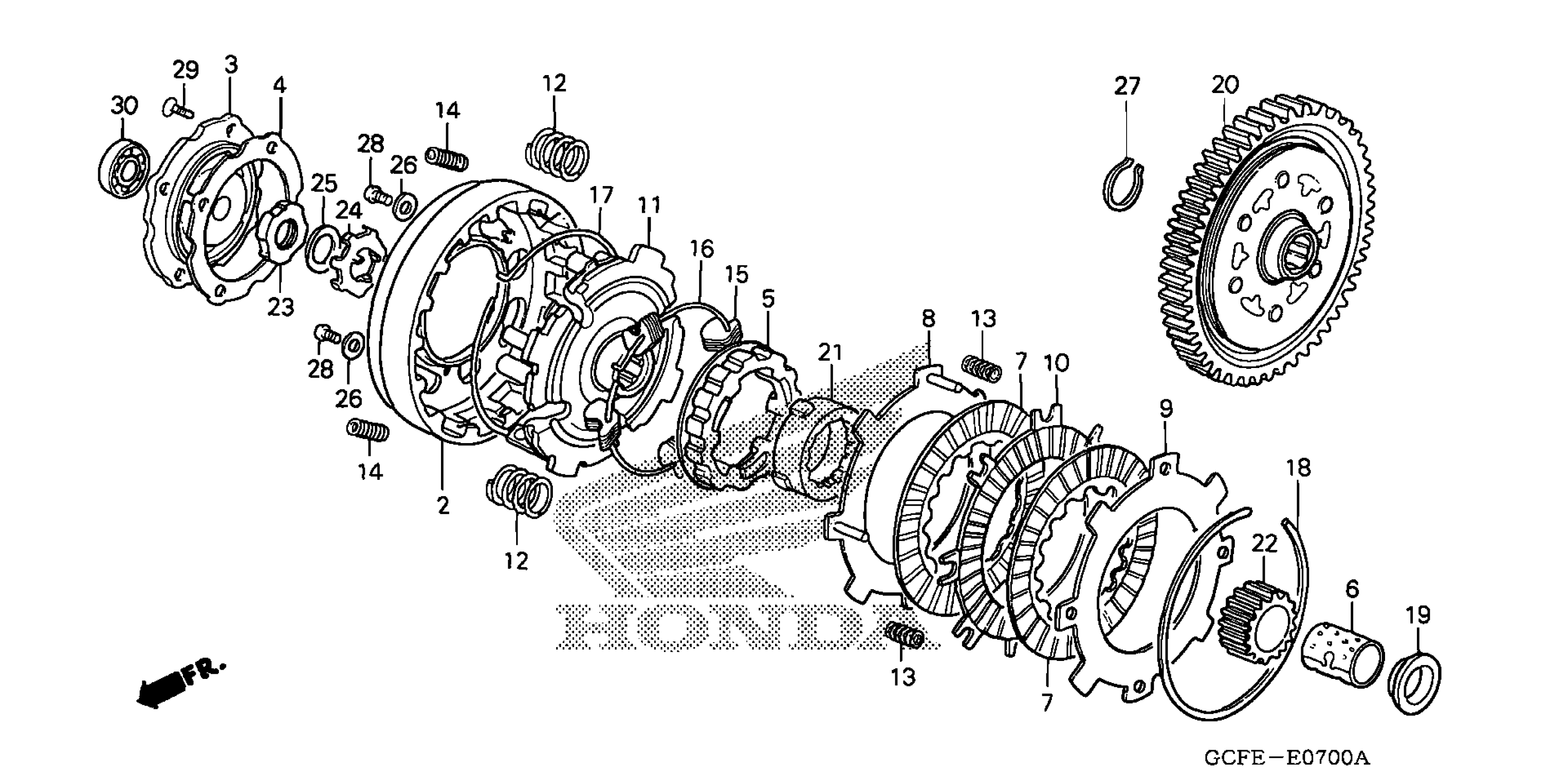

Honda CRF70FA (09) MOTORCYCLE, JPN, VIN# JH2DE020-9K200001 TO JH2DE020-9K299999 CLUTCH Diagram

#

Description
Price

2

CLUTCH OUTER

22101-178-000

$53.56

3

COVER, CLUTCH (OUTER)

22111-178-010

$10.98

4

GASKET, CLUTCH COVER (OUTER) This part replaces 22119-GW8-680.

22119-GW8-682

$2.92

4

GASKET, CLUTCH COVER (OUTER) This part replaces 22119-GW8-681.

22119-GW8-682

$2.92

5

CENTER, CLUTCH

22120-GCF-670

$53.95

6

GUIDE, CLUTCH CENTER

22131-035-030

$20.39

7

DISK A, CLUTCH FRICTION

22201-GW8-681

$10.04

8

PLATE A, CLUTCH

22310-GB0-910

$14.59

9

PLATE B, CLUTCH This part replaces 22321-041-000.

22321-046-020

$9.83

9

PLATE B, CLUTCH

22321-046-020

$9.83

10

DISK B, CLUTCH FRICTION

22331-GW8-681

$10.04

11

PLATE, DRIVE

22351-178-020

$75.34

12

SPRING, CLUTCH

22401-092-900

$2.66

13

SPRING, CLUTCH FREE

22411-178-000

$2.41

14

SPRING, CLUTCH DAMPER

22421-040-000

$2.03

15

WEIGHT, CLUTCH

22531-178-000

$1.80

16

RING, CLUTCH WEIGHT CENTER

22535-033-000

$5.56

17

RING, CLUTCH WEIGHT STOPPER

22536-033-000

$5.56

18

SET-RING (102MM)

22901-001-000

$4.02

19

COLLAR (17MM)

22911-GB4-680

$6.74

20

GEAR, PRIMARY DRIVEN (67T)

23110-GCF-670

$123.47

21

OUTER, DRIVE GEAR (18T)

23112-041-050

$32.74

22

GEAR, PRIMARY DRIVE (18T)

23120-041-000

Unavailable

23

NUT, LOCK (14MM)

90231-087-010

$3.80

24

WASHER, LOCK (14MM)

90431-086-000

$3.03

25

WASHER B, LOCK

90432-086-000

$4.44

26

WASHER, STOPPER

90483-041-000

$1.92

27

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

28

SCREW, PAN (5X10)

93500-05010-0A

$1.49

29

SCREW, FLAT (5X10)

93600-05010-0A

$1.49

30

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
