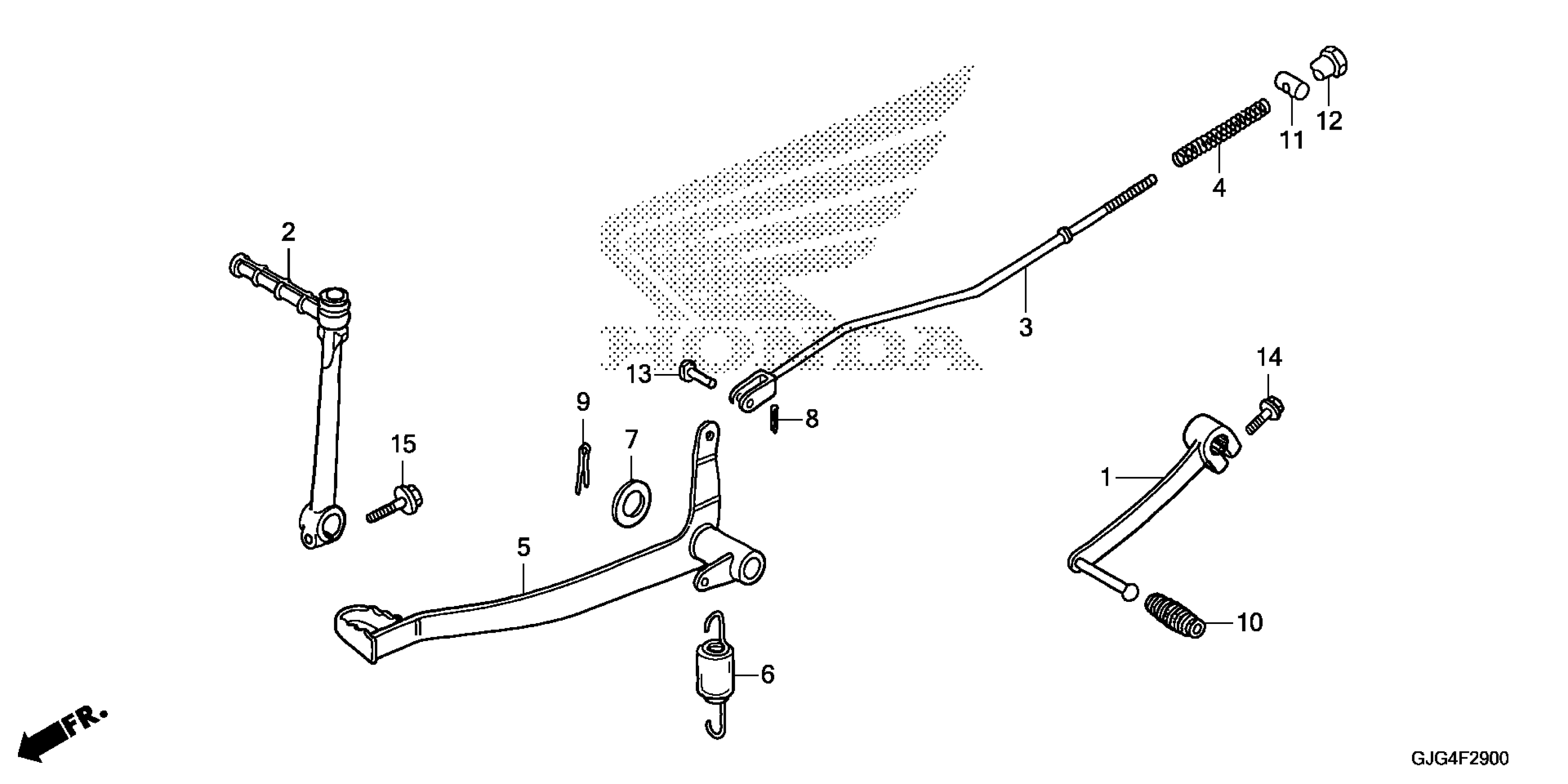

Honda CRF50FAC (26) MOTORCYCLE, CHN, VIN# LALAE041-T3100001 TO LALAE041-T3199999 BRAKE PEDAL@KICK STARTER ARM Diagram

PEDAL, GEARSHIFT (COO) This part replaces 24701-GEL-A80.

24701-GEL-306

$30.33

PEDAL, GEARSHIFT (COO)

24701-GEL-306

$30.33

ARM ASSY., KICK STARTER (COO) This part replaces 28300-GEL-A80.

28300-GEL-306

$66.29

ROD, RR. BRAKE

43451-GEL-A80

$11.53

SPRING A, BRAKE ROD

43472-GEL-A80

$2.41

PEDAL, BRAKE (COO) This part replaces 46500-GEL-A80.

46500-GEL-306

$53.09

PEDAL, BRAKE (COO)

46500-GEL-306

$53.09

SPRING ASSY., RR. BRAKE PEDAL

46511-GEL-A80

$5.32

WASHER, PLAIN (14MM)

94102-14000

$0.59

PIN, COTTER (2.0X12)

94201-20120

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$0.94

RUBBER, CHANGE PEDAL

95011-40000

$1.14

JOINT A, BRAKE ARM

95015-31001

$1.46

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.28

PIN, JOINT (C)

95015-53000

$2.85

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
