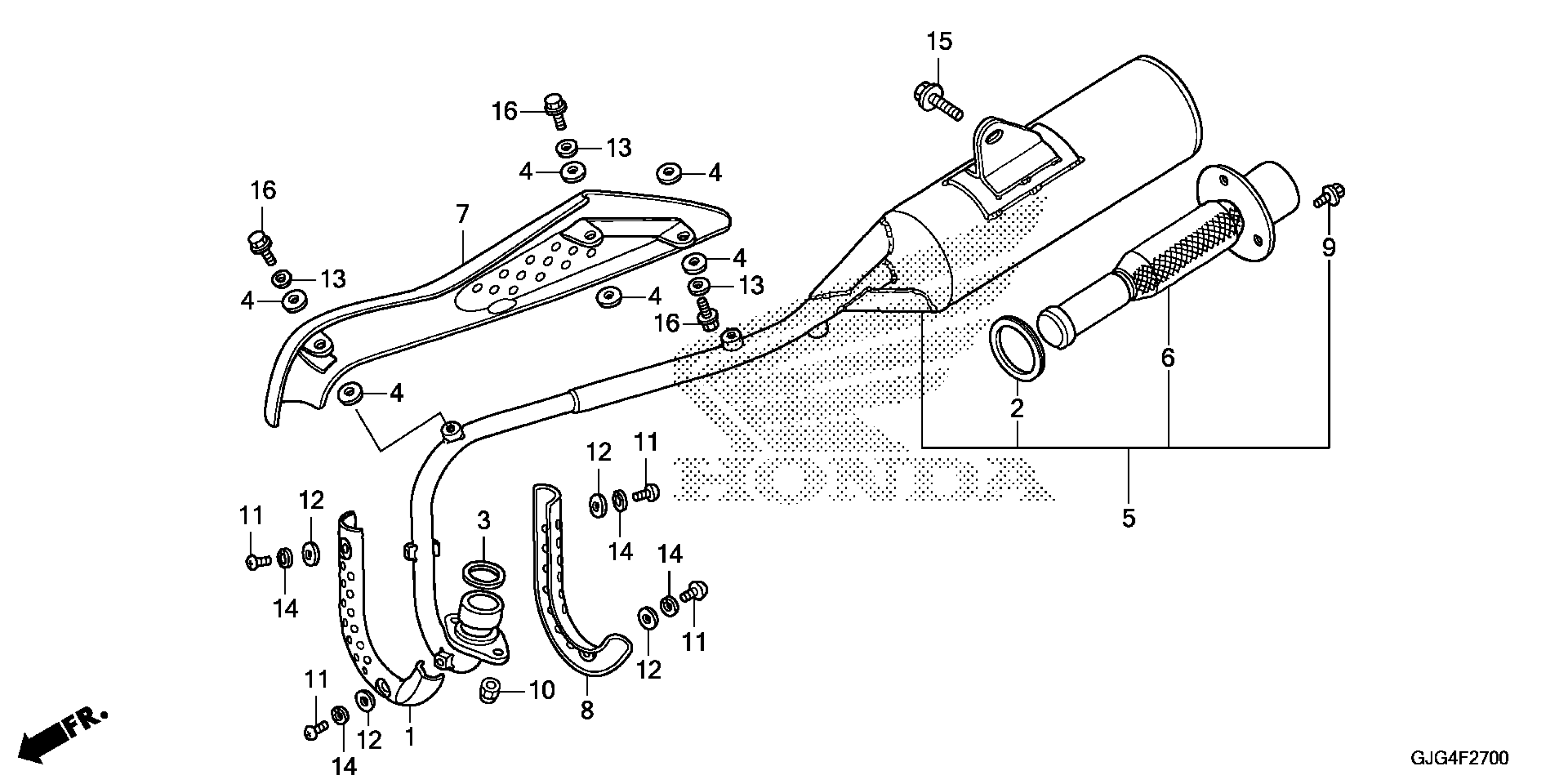

Honda CRF50FAC (25) MOTORCYCLE, CHN, VIN# LALAE041-S3900001 TO LALAE041-S3999999 MUFFLER Diagram

COVER A, EX. PIPE

18240-GEL-A80

$15.58

GASKET A, EX. PIPE

18291-KR1-680

$7.80

GASKET, EX. PIPE

18291-GE2-920

$6.02

GASKET, EX. PIPE This part replaces 18291-KVR-C00.

18291-GE2-920

$6.02

GASKET, PROTECTOR

18293-GEL-A80

$11.56

MUFFLER ASSY. (COO) This part replaces 18300-GEL-A80.

18300-GEL-306

$295.64

ARRESTER, SPARK (COO)

18317-KYK-305

$62.73

ARRESTER, SPARK (COO) This part replaces 18318-KYK-305.

18317-KYK-305

$62.73

PROTECTOR, EX. PIPE (COO) This part replaces 18355-GEL-A80.

18355-GEL-305

$63.29

COVER B, EX. PIPE

18450-GEL-A80

$15.58

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.48

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

NUT, CAP (6MM) This part replaces 90207-165-600.

90304-438-000

$6.64

NUT, CAP (6MM)

90304-438-000

$6.64

SCREW, PAN (5X6)

93500-05006-0G

$0.75

WASHER, PLAIN (5MM)

94101-05700

Unavailable

WASHER, PLAIN (6MM)

94101-06700

$0.86

WASHER, SPRING (5MM)

94111-05700

$1.03

BOLT, FLANGE (8X35)

95701-08035-07

$1.28

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable
