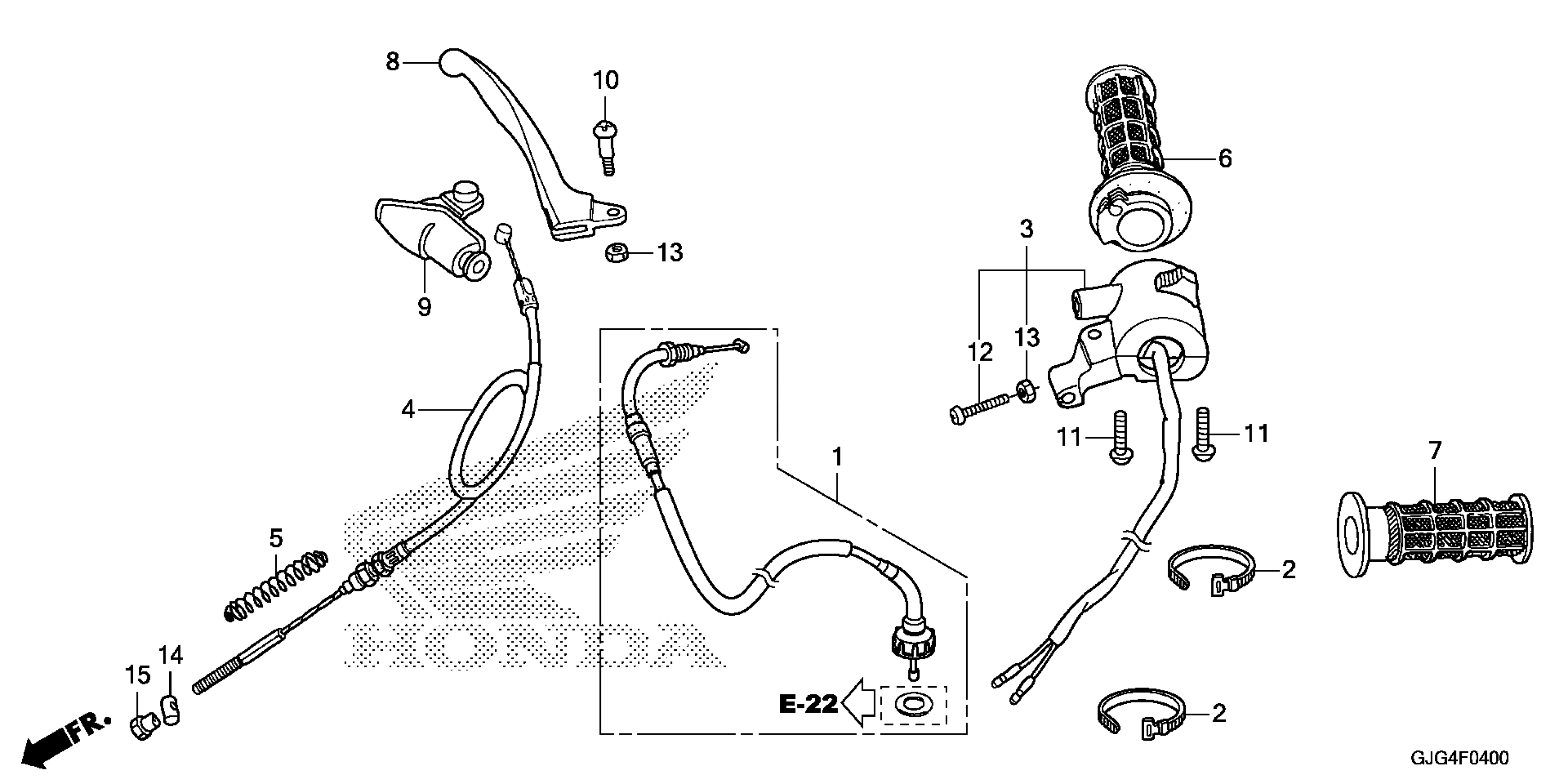

Honda CRF50FAC (22) MOTORCYCLE, CHN, VIN# LALAE041-N3600001 TO LALAE041-N3699999 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE SET, THROTTLE

17920-GEL-306

$57.96

BAND B1, WIRE

32161-KYA-901

$2.92

SWITCH ASSY., STARTER STOP

35130-GEL-D61

$57.61

CABLE, FR. BRAKE

45450-GEL-A81

$29.75

SPRING, FR. BRAKE

45454-GEL-A80

$6.87

GRIP, THROTTLE (COO) This part replaces 53140-GEL-A80.

53140-GEL-306

$17.79

GRIP, THROTTLE (COO)

53140-GEL-306

$17.79

GRIP, L. HANDLE

53166-GEL-A80

$12.44

LEVER, R. HANDLEBAR (COO) This part replaces 53175-GEL-305.

53175-GGA-305

$12.88

LEVER, R. HANDLEBAR (COO)

53175-GGA-305

$12.88

LEVER, R. HANDLEBAR (COO) This part replaces 53175-GR2-010.

53175-GGA-305

$12.88

COVER, R. HANDLE LEVER

53176-GEL-A80

$5.33

SCREW, HANDLE LEVER PIVOT

90115-GCC-C00

$2.99

SCREW, PAN (5X20)

93500-05020-0A

$1.49

SCREW, PAN (5X32)

93500-05032-0A

$1.49

NUT, HEX. (5MM)

94001-05000-0S

$2.74

JOINT A, BRAKE ARM

95015-31001

$1.53

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
