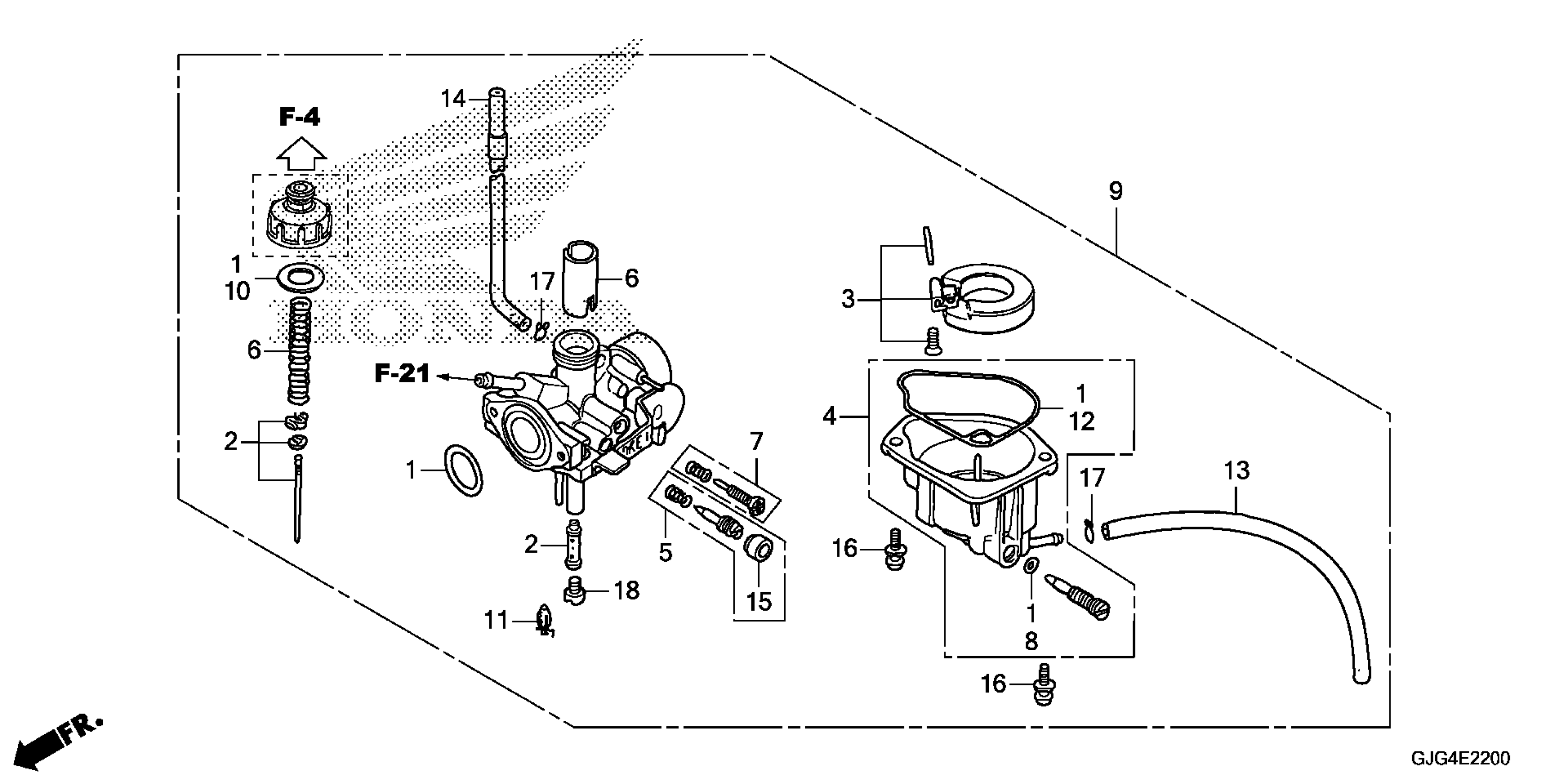

Honda CRF50FAC (22) MOTORCYCLE, CHN, VIN# LALAE041-N3600001 TO LALAE041-N3699999 CARBURETOR Diagram

GASKET SET

16010-181-305

$18.34

GASKET SET This part replaces 16010-181-831.

16010-181-305

$18.34

NEEDLE SET, JET

16012-GEL-A21

$22.08

FLOAT SET

16013-147-004

$40.06

CHAMBER SET, FLOAT

16015-099-691

$87.35

SCREW SET

16016-GEL-A81

$14.91

VALVE SET, THROTTLE (CARBURETOR NO.)

16022-GW8-672

$34.34

SCREW SET B

16028-GC8-004

$14.69

O-RING (1.3X4.3) (CARBURETOR NO.)

16076-ND5-004

$2.26

CARBURETOR ASSY. (PA42G A)

16100-GEL-A81

$186.05

GASKET, TOP

16110-181-831

$4.48

VALVE, FLOAT

16155-883-005

$18.05

GASKET, FLOAT CHAMBER

16163-165-B10

$14.80

TUBE

16198-GEL-701

$4.41

TUBE, AIR VENT

16199-GEL-701

$4.52

CAP, ADJUSTING SCREW

16312-KYK-911

$2.46

SCREW-WASHER (4X12)

93892-04012-08

$0.58

CLIP, TUBE (B6.5)

95002-02659

$1.00

JET, MAIN (#58)

99101-187-0580

$7.52
