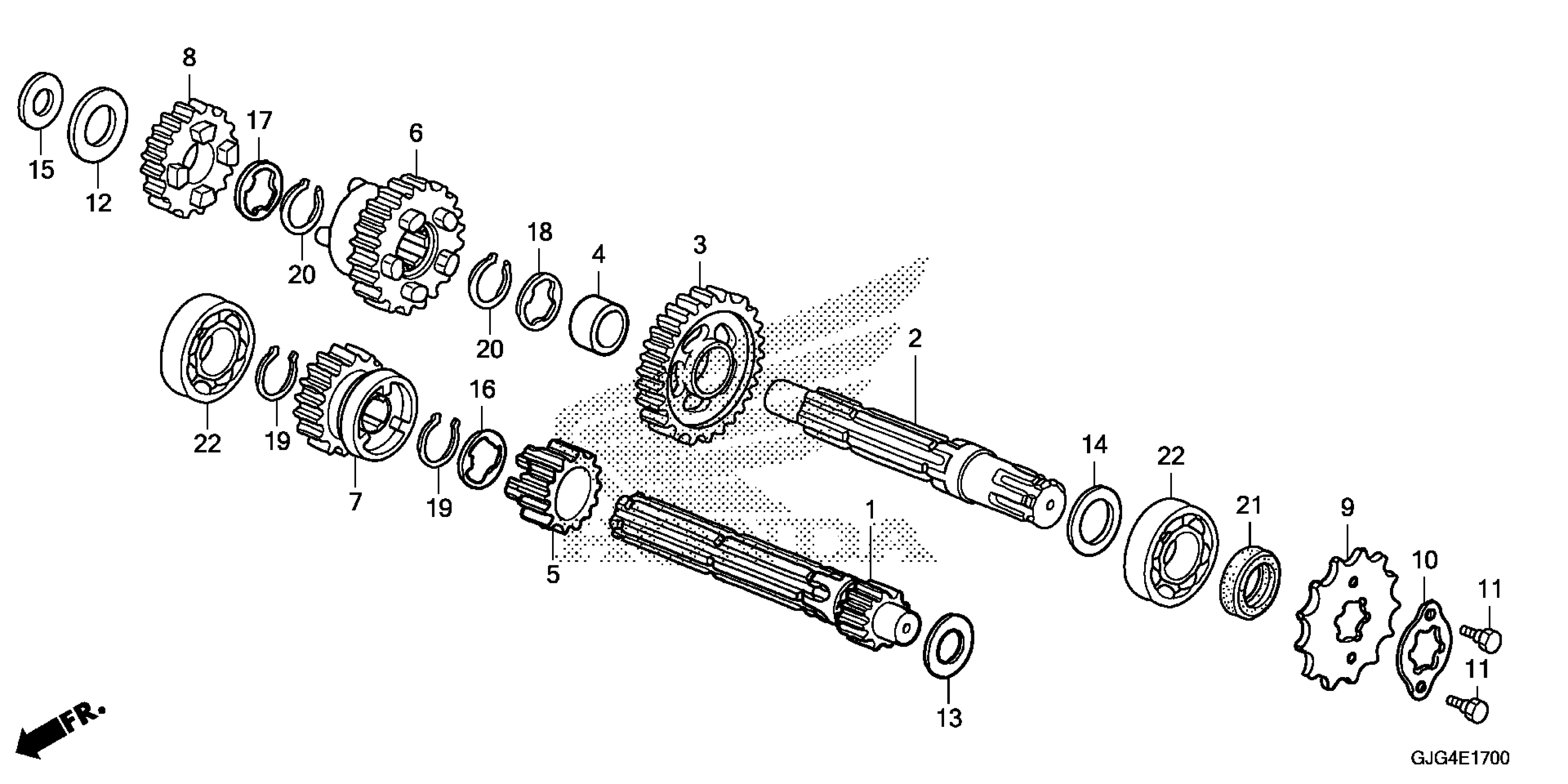

Honda CRF50FAC (21) MOTORCYCLE, CHN, VIN# LALAE04C-M3200001 TO LALAE04C-M3299999 TRANSMISSION Diagram

MAINSHAFT (11T)

23211-GEL-A80

$73.01

COUNTERSHAFT

23221-GEL-A80

$71.14

GEAR, COUNTERSHAFT LOW (36T)

23421-GEL-A80

$53.09

BUSH (20X10)

23422-GEL-A80

$9.72

GEAR, MAINSHAFT SECOND (15T)

23431-GEL-A80

$37.90

GEAR, COUNTERSHAFT SECOND (25T)

23441-GEL-A80

$60.97

GEAR, MAINSHAFT THIRD (21T)

23471-GEL-A80

$50.80

GEAR, COUNTERSHAFT THIRD (25T)

23481-GEL-A80

$45.45

SPROCKET, DRIVE (14T)

23800-GEL-A80

$16.61

PLATE, DRIVE SPROCKET FIXING

23802-GEL-A80

$4.59

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.29

WASHER A, THRUST

90409-GEL-A80

$2.36

WASHER, THRUST (14MM)

90451-GEL-A80

$2.65

WASHER, THRUST (17MM)

90452-GB4-770

$1.87

WASHER, THRUST (13.5MM)

90453-GEL-A80

$2.65

WASHER, SPLINE (17MM)

90461-035-000

$2.35

WASHER, SPLINE (20MM)

90461-459-010

$5.04

WASHER, SPLINE (20X1.2)

90461-GB4-770

$3.09

CIRCLIP (17MM)

90601-KYY-900

$2.80

CIRCLIP (20MM)

90602-KYY-900

$3.20

OIL SEAL (17X29X5)

91204-KWB-601

$1.13

BEARING, RADIAL BALL (6203)

91015-GEL-A80

$18.67
