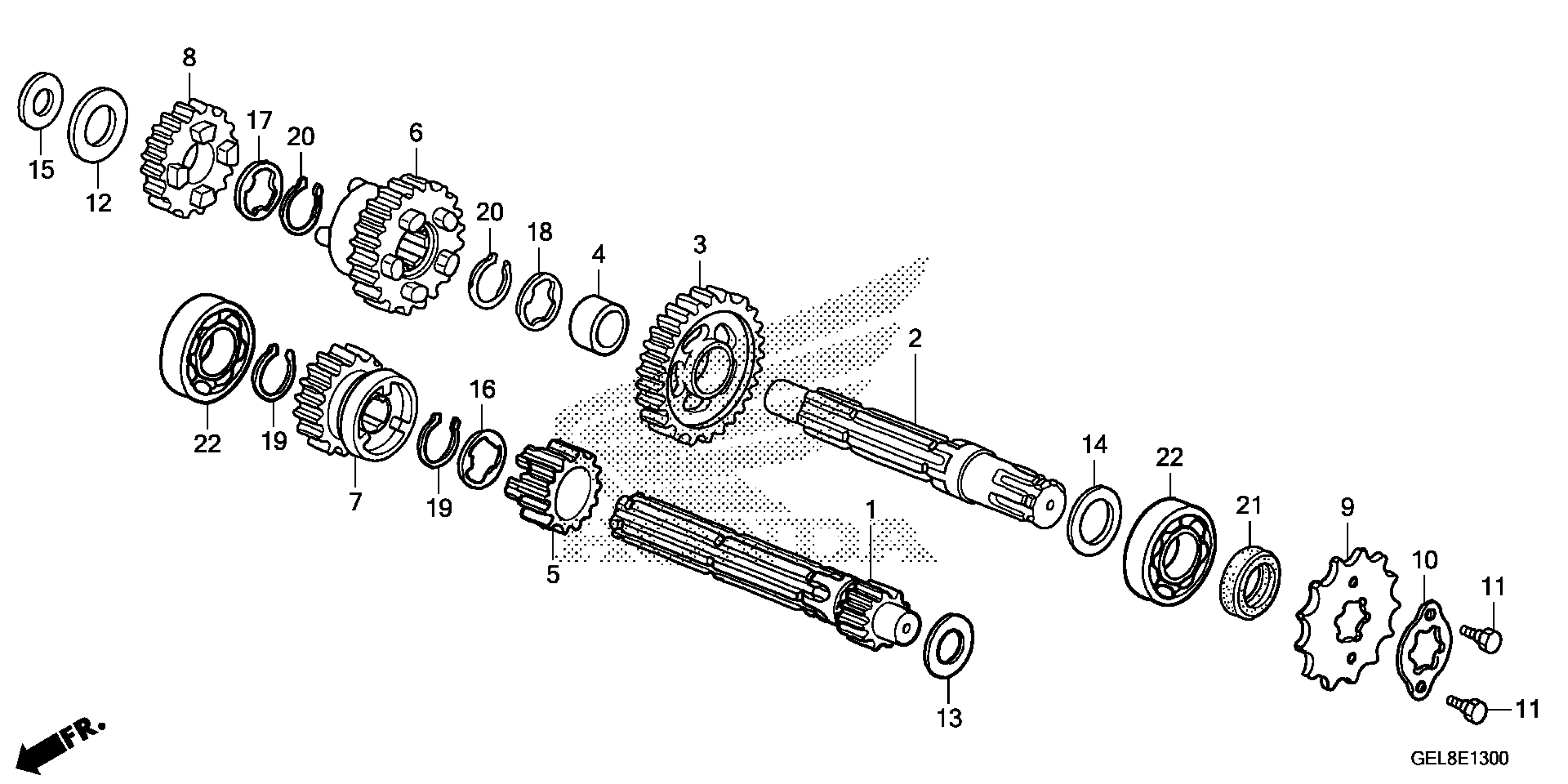

Honda CRF50FAC (20) MOTORCYCLE, CHN, VIN# LALAE04C-L3100001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (11T)

23211-GEL-A80

$80.21

2

COUNTERSHAFT

23221-GEL-A80

$78.13

3

GEAR, COUNTERSHAFT LOW (36T)

23421-GEL-A80

$58.31

4

BUSH (20X10)

23422-GEL-A80

$10.67

5

GEAR, MAINSHAFT SECOND (15T)

23431-GEL-A80

$41.62

6

GEAR, COUNTERSHAFT SECOND (25T)

23441-GEL-A80

$66.97

7

GEAR, MAINSHAFT THIRD (21T)

23471-GEL-A80

$55.79

8

GEAR, COUNTERSHAFT THIRD (25T)

23481-GEL-A80

$49.90

9

SPROCKET, DRIVE (14T)

23800-GEL-A80

$18.25

10

PLATE, DRIVE SPROCKET FIXING

23802-GEL-A80

$5.20

11

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

12

WASHER A, THRUST

90409-GEL-A80

$2.59

13

WASHER, THRUST (14MM)

90451-GEL-A80

$2.92

14

WASHER, THRUST (17MM)

90452-GB4-770

$1.86

15

WASHER, THRUST (13.5MM)

90453-GEL-A80

$2.92

16

WASHER, SPLINE (17MM)

90461-035-000

$2.57

17

WASHER, SPLINE (20MM)

90461-459-010

$5.54

18

WASHER, SPLINE (20X1.2)

90461-GB4-770

$3.39

19

CIRCLIP (17MM)

90601-KYY-900

$2.92

20

CIRCLIP (20MM)

90602-KYY-900

$3.62

21

OIL SEAL (17X29X5)

91204-KWB-601

$1.49

22

BEARING, RADIAL BALL (6203)

91015-GEL-A80

$20.49
