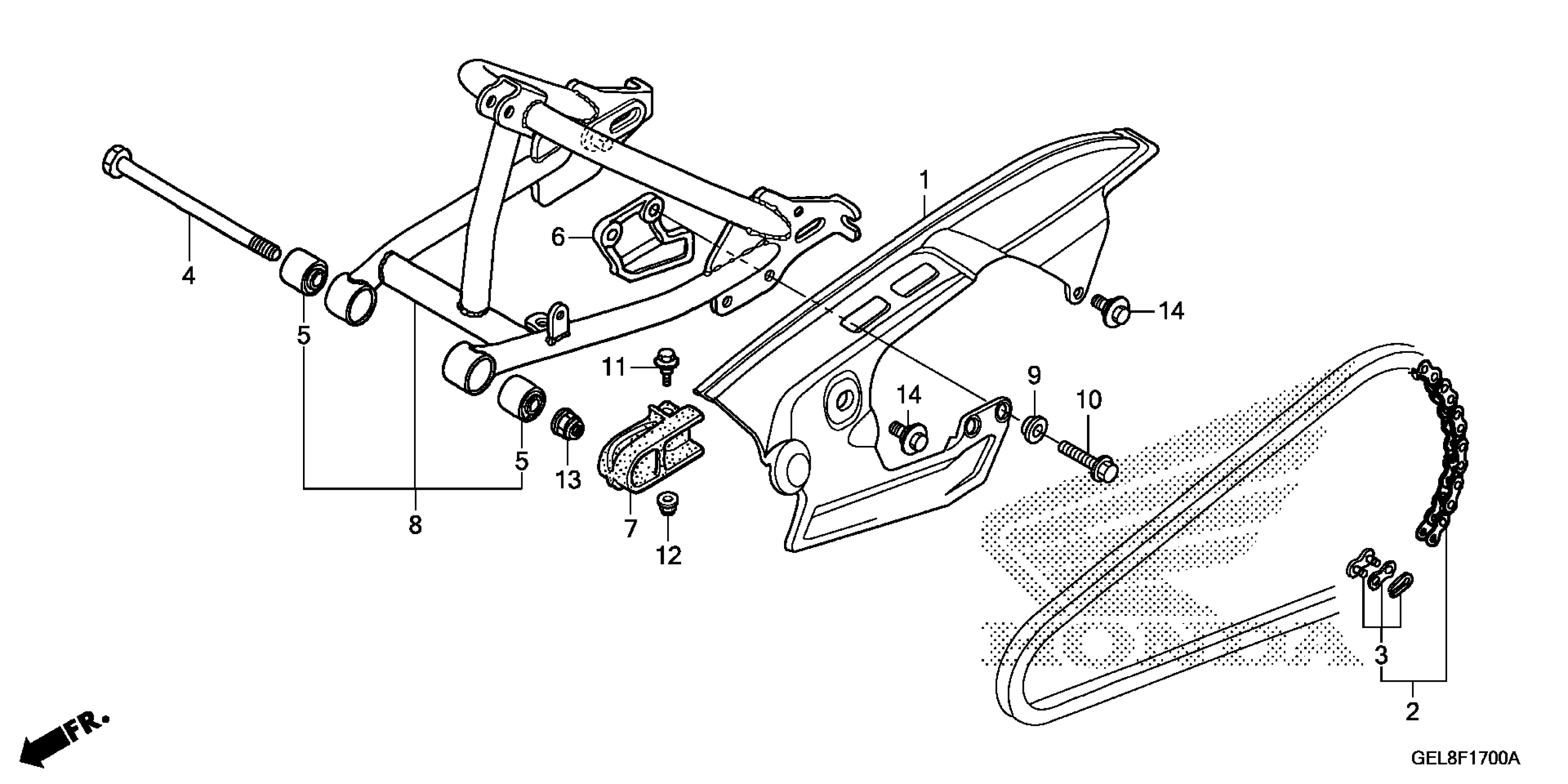

Honda CRF50FAC (20) MOTORCYCLE, CHN, VIN# LALAE04C-L3100001 SWINGARM Diagram

CASE, DRIVE CHAIN

40510-GEL-A80

$25.43

CHAIN, DRIVE (DID420MBK1-78L) (DAIDO)

40530-GEL-701

$35.89

MASTER LINK (DAIDO)

40531-GC4-602

$2.38

BOLT, SWINGARM PIVOT

52101-GEL-A80

$18.23

BUSH, SWINGARM PIVOT RUBBER

52108-081-000

$8.80

GUARD, DRIVE CHAIN

52155-KYK-910

$31.05

SLIDER, CHAIN

52170-GEL-A80

$29.56

SWINGARM SUB-ASSY., RR. *NH132M* (MAX SILVER METALLIC)

52200-GEL-A80ZA

$265.69

COLLAR, FR. FENDER

61106-KZV-T00

$1.49

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.95

BOLT, FLANGE (6X20)

90113-GEL-A80

$3.46

NUT, FLANGE (6MM) (PT)

90302-KYA-601

$2.23

NUT, FLANGE (10MM) (PT)

90304-KYA-601

$3.39

BOLT, SPECIAL (6MM)

90653-KYK-910

$2.92
