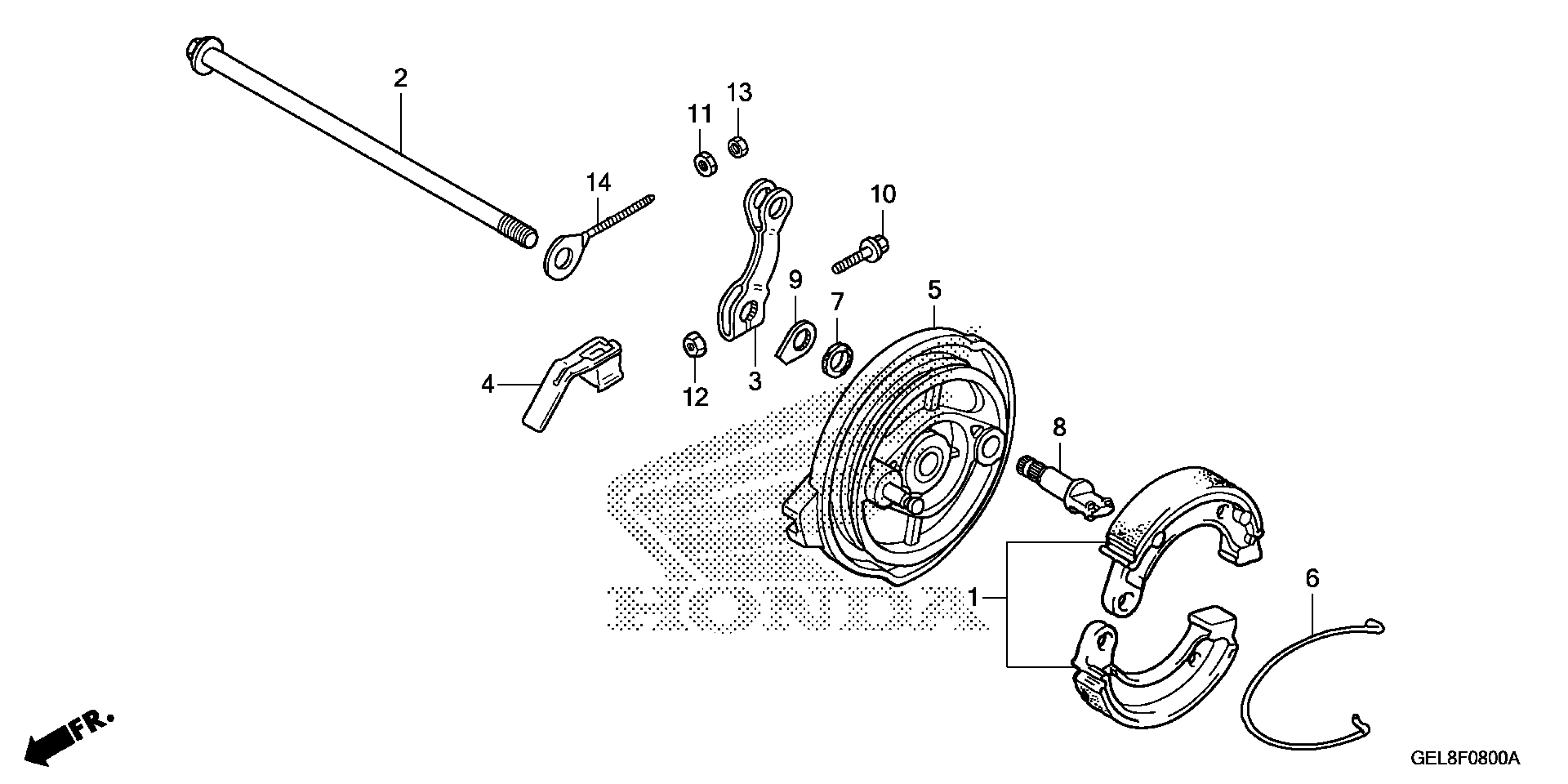

Honda CRF50FAC (20) MOTORCYCLE, CHN, VIN# LALAE04C-L3100001 REAR BRAKE PANEL Diagram

Description

Price

SHOE SET, BRAKE This part replaces 06430-GZ9-003.

06430-131-405

$15.33

SHOE SET, BRAKE SHOE KIT, BRAKE

06430-131-405

$15.33

AXLE, RR. WHEEL

42301-GEL-A80

$17.75

ARM, RR. BRAKE (FR.) (FOR FR.)

43410-GEL-700

$7.96

COVER, RR. BRAKE ARM

43411-GEL-700

$8.20

PANEL, FR. BRAKE NH146M (ACCURATE SILVER METALLIC) (RR.) (FOR RR.)

45100-181-831ZC

$53.02

SPRING, BRAKE SHOE

45133-044-000

$2.31

SEAL, BRAKE CAM

45134-165-890

$1.57

CAM, FR. BRAKE (RR.) (FOR RR.)

45141-147-003

$13.20

INDICATOR, BRAKE

45145-GW8-670

$3.65

BOLT, FLANGE (5X25)

90112-GG2-900

$4.62

NUT, SPECIAL (6MM)

90302-KRS-830

$2.13

NUT, HEX. (5MM)

94001-05000-0S

$2.74

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)
