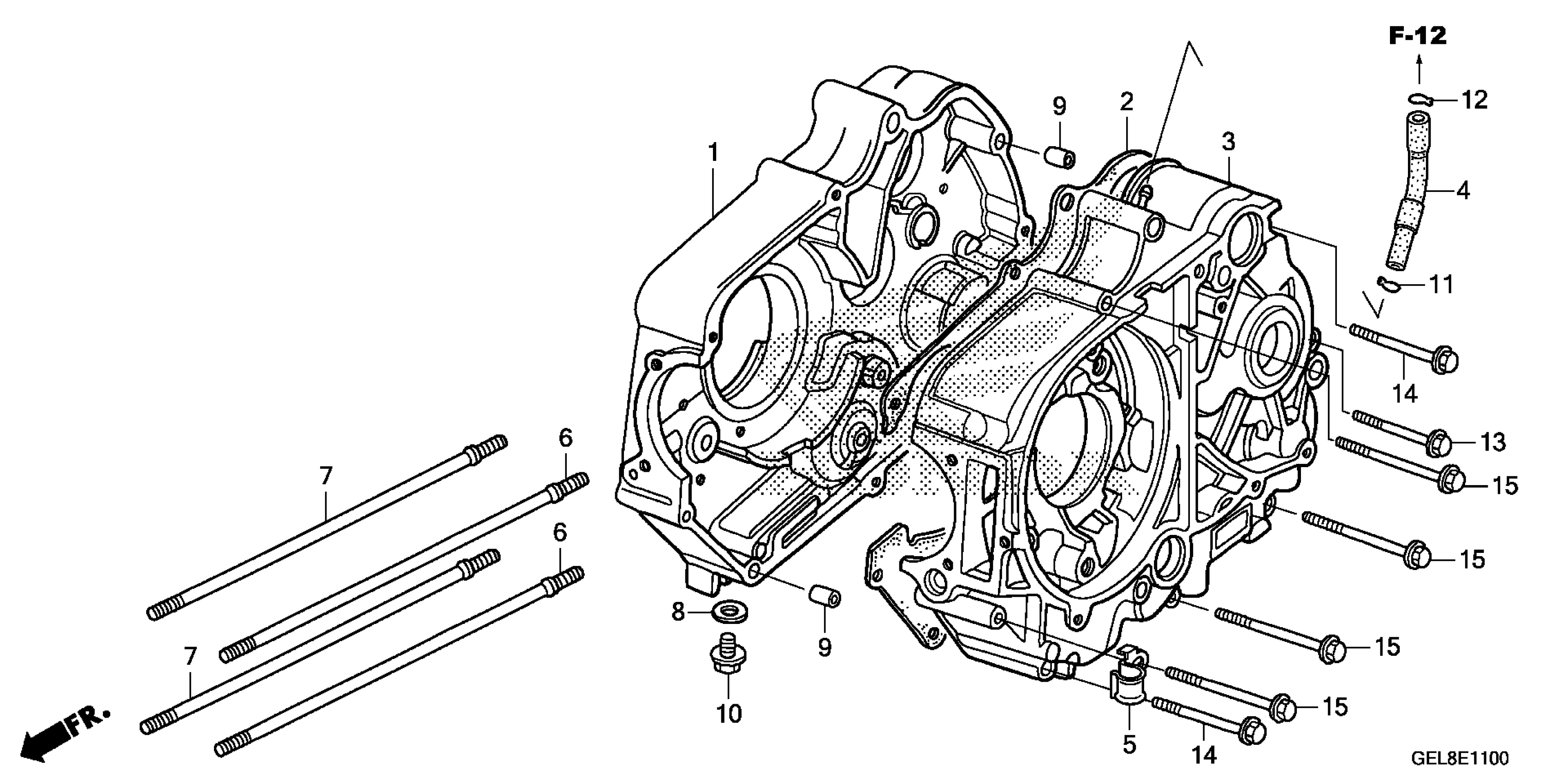

Honda CRF50FAC (20) MOTORCYCLE, CHN, VIN# LALAE04C-L3100001 CRANKCASE Diagram

CRANKCASE, R.

11100-GEL-A80

$255.35

GASKET, CRANKCASE This part replaces 11191-GW8-681.

11191-GW8-682

$13.13

GASKET, CRANKCASE

11191-GW8-682

$13.13

CRANKCASE, L.

11200-GEL-A80

$254.29

TUBE A, BREATHER

15761-GEL-A80

$6.96

CLIP, TUBE

16106-KVR-C00

$2.25

BOLT A, CYLINDER STUD (6X196)

90031-GEL-A80

$5.53

BOLT B, CYLINDER STUD (6X188)

90032-GEL-A80

$5.53

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.71

PIN, DOWEL SPECIAL (10X14)

90703-KVR-C00

$2.29

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.26

CLIP, TUBE (C9)

95002-50000

$1.16

CLIP, TUBE (C11)

95002-70000

Unavailable

BOLT, FLANGE (6X50) BOLT, FLANGE (6X55)

96001-06050-00

$2.69

BOLT, FLANGE (6X60)

96001-06060-00

$2.69

BOLT, FLANGE (6X65)

96001-06065-00

Unavailable
