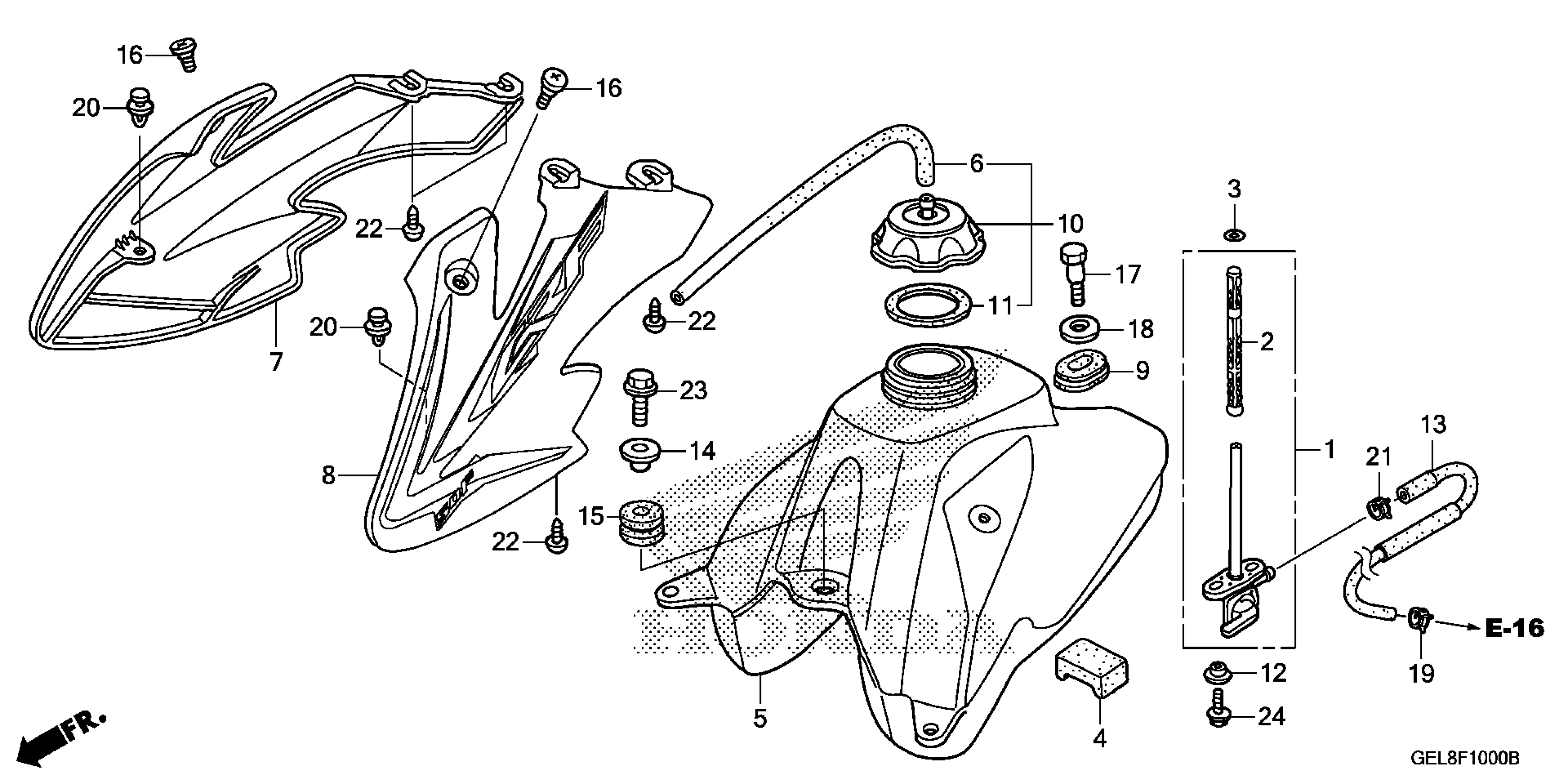

Honda CRF50FAC (19) MOTORCYCLE, CHN, VIN# LALAE04C-K3000001 TO LALAE04C-K3099999 FUEL TANK Diagram

PETCOCK ASSY.

16950-GEL-701

$56.17

SCREEN SET, FUEL STRAINER

16952-GEL-701

$19.67

O-RING (11.8X3.55)

16997-467-000

$2.04

RUBBER, TANK MOUNTING

17504-GEL-700

$12.65

TANK, FUEL

17510-GEL-A40

$228.88

TUBE, FUEL CAP BREATHER

17521-429-000

$6.66

SHROUD SET, R. TANK (TYPE1) (WL)

17545-GEL-A80ZA

$64.26

SHROUD SET, L. TANK (TYPE1) (WL)

17555-GEL-A80ZA

$64.21

CUSHION, RR. FUEL TANK

17613-GF8-000

$3.37

CAP ASSY., FUEL TANK

17620-GEL-770

$28.87

GASKET, FUEL CAP

17624-GEL-770

$4.38

COLLAR, FUEL TANK SETTING

17626-467-000

$4.56

TUBE, FUEL

17681-GEL-A40

$16.52

COLLAR (8X12)

80101-KB7-600

$5.64

CUSHION, RR. FENDER

80103-MG2-000

$2.91

SCREW, SPECIAL (5MM)

90104-GEL-A80

$2.80

BOLT (8X21)

90138-GEL-A80

$12.19

WASHER (10MM)

90501-GEL-A80

$0.76

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.34

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

CLAMP, TUBE (8.5)

90653-KSJ-A20

$1.34

SCREW, TAPPING (5X16)

93903-25320

$0.90

BOLT, FLANGE (8X25)

95701-08025-00

$1.65

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable
