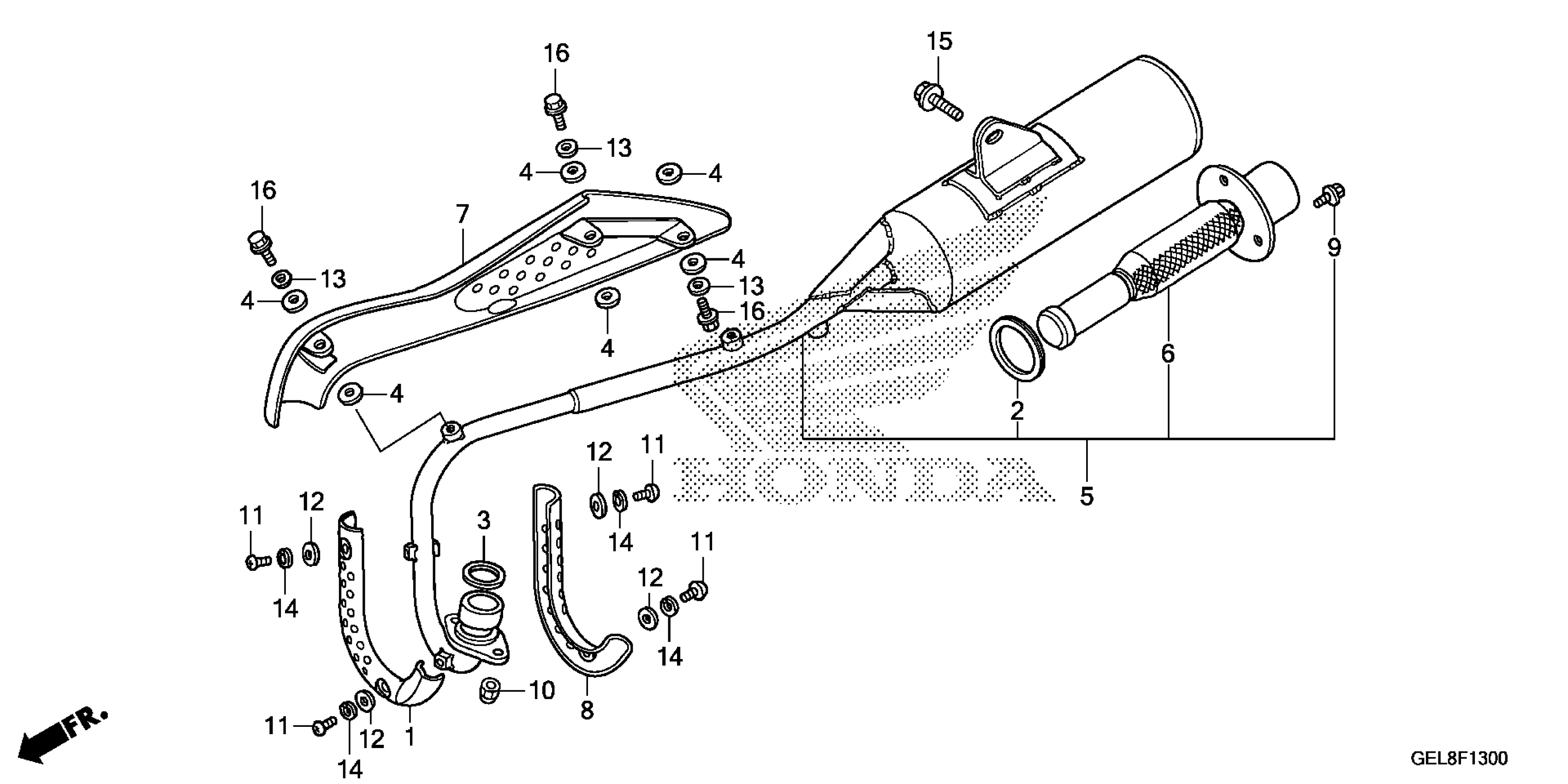

Honda CRF50FAC (15) CRF50F, CHN, VIN# LALAE041-F3200001 TO LALAE041-F3299999 MUFFLER Diagram

COVER A, EX. PIPE

18240-GEL-A80

$15.81

GASKET A, EX. PIPE

18291-KR1-680

$8.00

GASKET, EX. PIPE

18291-GE2-920

$6.18

GASKET, EX. PIPE This part replaces 18291-KVR-C00.

18291-GE2-920

$6.18

GASKET, PROTECTOR

18293-GEL-A80

$11.82

MUFFLER ASSY. (COO)

18300-GEL-306

$299.99

MUFFLER ASSY. (COO) This part replaces 18300-GEL-A80.

18300-GEL-306

$299.99

ARRESTER, SPARK (COO)

18317-KYK-305

Unavailable

PROTECTOR, EX. PIPE (COO)

18355-GEL-305

$64.22

PROTECTOR, EX. PIPE (COO) This part replaces 18355-GEL-A80.

18355-GEL-305

$64.22

COVER B, EX. PIPE

18450-GEL-A80

$15.81

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.63

BOLT, FLANGE (6X10)

96001-06010-07

$1.63

NUT, CAP (6MM) This part replaces 90207-165-600.

90304-438-000

$6.81

NUT, CAP (6MM)

90304-438-000

$6.81

SCREW, PAN (5X6)

93500-05006-0G

Unavailable

WASHER, PLAIN (5MM)

94101-05700

$0.91

WASHER, PLAIN (6MM)

94101-06700

$0.87

WASHER, SPRING (5MM)

94111-05700

$1.04

BOLT, FLANGE (8X35)

95701-08035-07

$1.29

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.79
